Brink Air Control Ventilation - Overview Display Version Main Screen

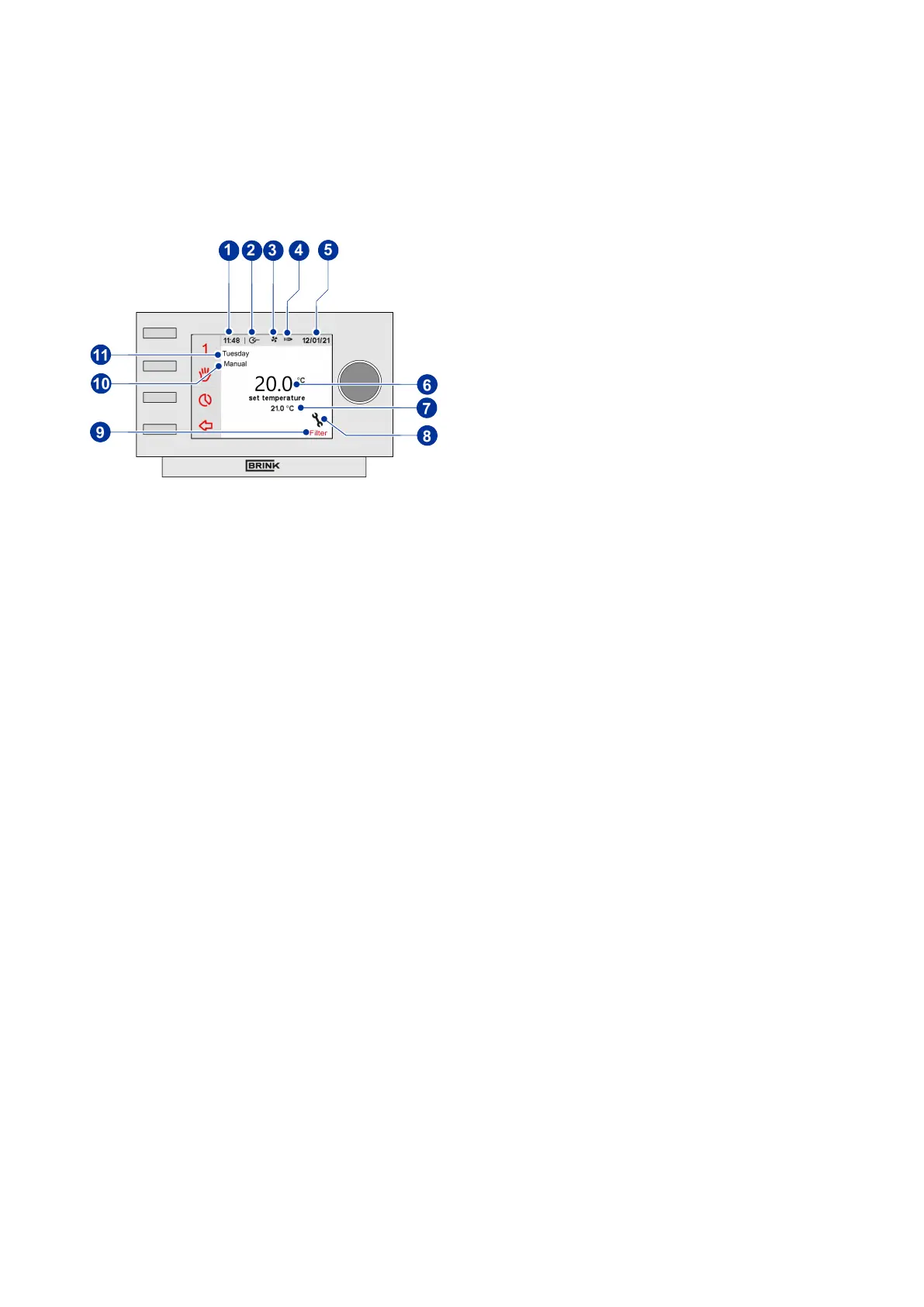

2.4 Overview display version main screen
1 = Current time
2 = eBus connection indicator (not shown on all
menu screens
3 = Fan indicator
4 = " Burner on" symbol or "cooling on" symbol ( T )
5 = Current date (day/ month/ year
6 = Current room temperature
7 = Desired temperature
8 = Fault symbol
9 = Filter message
10 = Current time block or manual operation
11 = Current day
1 Time
In operang mode, the Brink Air Control - Allure clock thermostat display shows the current me.
2 eBus connection
The eBus connecon with the air heater is acve when this symbol is shown ( this symbol is not shown on al menu sceens).
3 Airheater fan symbol
Air heater system fan acve when this symbol is shown
4
Burner on (or cooling on T symbol)
"Burner ON"or the Cooling is acve
5 Date
In operang mode, the Brink Air Control - Allure clock thermostat display shows the current date.
6 Room temperature
In operang mode, the Brink Air Control - Allure clock thermostat display shows the current room temperature.
7 Desired room temperature
In operang mode, the Brink Air Control - Allure clock thermostat display shows the desired room temperature (set
temperature); to be set with the rotary knob.
8 Fault code
In the event of a malfuncon in the air heater, the Brink Air Control - Allure clock thermostat display shows an error message.
It is composed of an E (Error) with an error number; an error message is also shown on the air heater display.
Refer to the installaon instrucons supplied with the air heater for an overview of these errors.
In all cases, the air heater must be reset aer the problem has been solved; then the error message will also disappear from
the room thermostat display.
9 Filter message
When the lter in the air heater has to be cleaned or replaced, theAir Control - Allure clock thermostat display shows the text
“FILTER”.
The installaon instrucons supplied with the air heater contain a comprehensive explanaon on how to replace the lter or
lters.
Reseng the lter message must always be done on the air heater control panel.
10 Manual operation or time block
The current meblock or manual operaon is displayed on this posion
11 Day
In operang mode, the Brink Air Control - Allure clock thermostat display shows the current day.
Air Control - Allure clock thermostat 616720-A
