Brocade FastIron X Series Chassis Hardware Installation Guide 33
53-1001723-02
Hardware features
1
CAUTION
The POE power supply is designed exclusively for use with the FastIron X Series POE devices. The
power supply produces extensive power to support 802.3af applications. Installing the power
supply in a device other than the FastIron X Series POE will cause extensive damage to your
equipment.
All power supplies are auto-sensing and auto-switching.
The power supplies are installed in the slots along the bottom of the chassis.
In the FSX and FSX 800 chassis, the 12-volt (system) power supplies occupy slot numbers 3 and 4
on the right, with the redundant supply in slot 4. The POE power supplies occupy slot numbers 1
and 2 on the left. Figure 22 shows power supply placement.

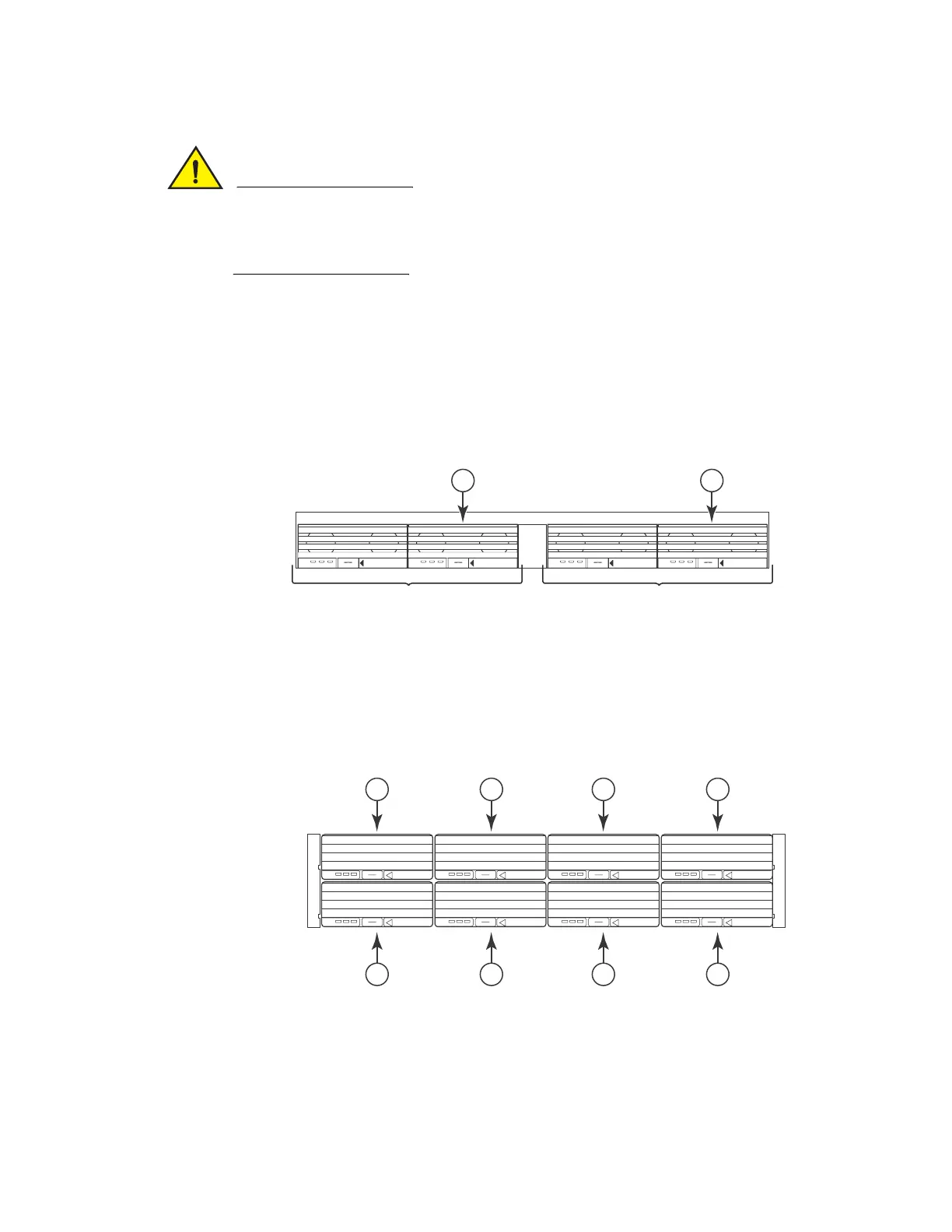

FIGURE 22 Power supply placement in the FSX and FSX 800
In the FSX 1600 chassis, the system power supplies occupy slot numbers 1 – 4 in the top row with
the redundant supplies in slot numbers 3 and 4. The POE power supplies occupy slot numbers 5 –
8 in the bottom row. Figure 23 shows power supply placement.
FIGURE 23 Power supply placement in the FSX 1600
The installed power supplies provide power to all chassis components, sharing the workload
equally. If a power supply fails or overheats, the failed power supply’s workload is redistributed to
the redundant power supply, if one is present.
POE Power Supply Slots SYS (12V) Power Supply Slots
2nd POE Power Supply
Redundant SYS (12V) Power Supply
AC OKDC OK ALM
EJECT SYS
AC OKDC OK ALM
EJECT SYS
AC OKDC OK ALM
EJECT SYS
AC OKDC OK ALM
EJECT SYS
AC OKDC OK ALM
EJECT POE
AC OKDC OK ALM
EJECT POE
AC OKDC OK ALM
EJECT POE
AC OKDC OK ALM
EJECT POE
1 2 3 4
5 6
7
8
SYS (12V) Power Supplies
in Slot 1 and Slot 2
POE Power Supplies
in Slots 5 - 8
Redundant 12V Power Supplies
in Slot 3 and Slot 4
