Specifying a data port
The port address format is stack unit/slot/port, where:
stack unit--Specifies the stack unit ID. Range is from 1 to 8. If the device is not part of a stack, the
stack unit ID is 1.
slot--Specifies the slot number. Can be 1 or 3.
port--Specifies the port number in the slot. Range is from 1 to 24 (24-port models) or 1 to 48 (48-
port models).
This example indicates it is Stack Unit 1:
Brocade(config)# interface ethernet 1/1/2
Specifying a stacking port
The port address format is stack unit/slot/port, where:
stack unit--Specifies the stack unit ID. Range is from 1 to 8.
slot--Specifies the slot number. Default stacking ports are in slot 2 (FCX S/S-F).
port--Specifies the port number in the slot. Default stacking ports in slot 2 are ports 1 and 2.
This example shows how to specify port 2 in slot 2 of unit 3 in a stack:
Brocade(config)# interface ethernet 3/2/2
Specifying a management port
The management port number is always 1. This example shows how to specify the management port:
Brocade(config)# interface management 1
Port, system, and power status LEDs for Brocade FCX 624S, FCX 648S, FCX 624S-F, FCX
624S-HPOE, and FCX 648S-HPOE
FCX switches include a display panel for key system and port indicators that simplifies installation and
network troubleshooting. The LEDs are located on the front panel for easy viewing.

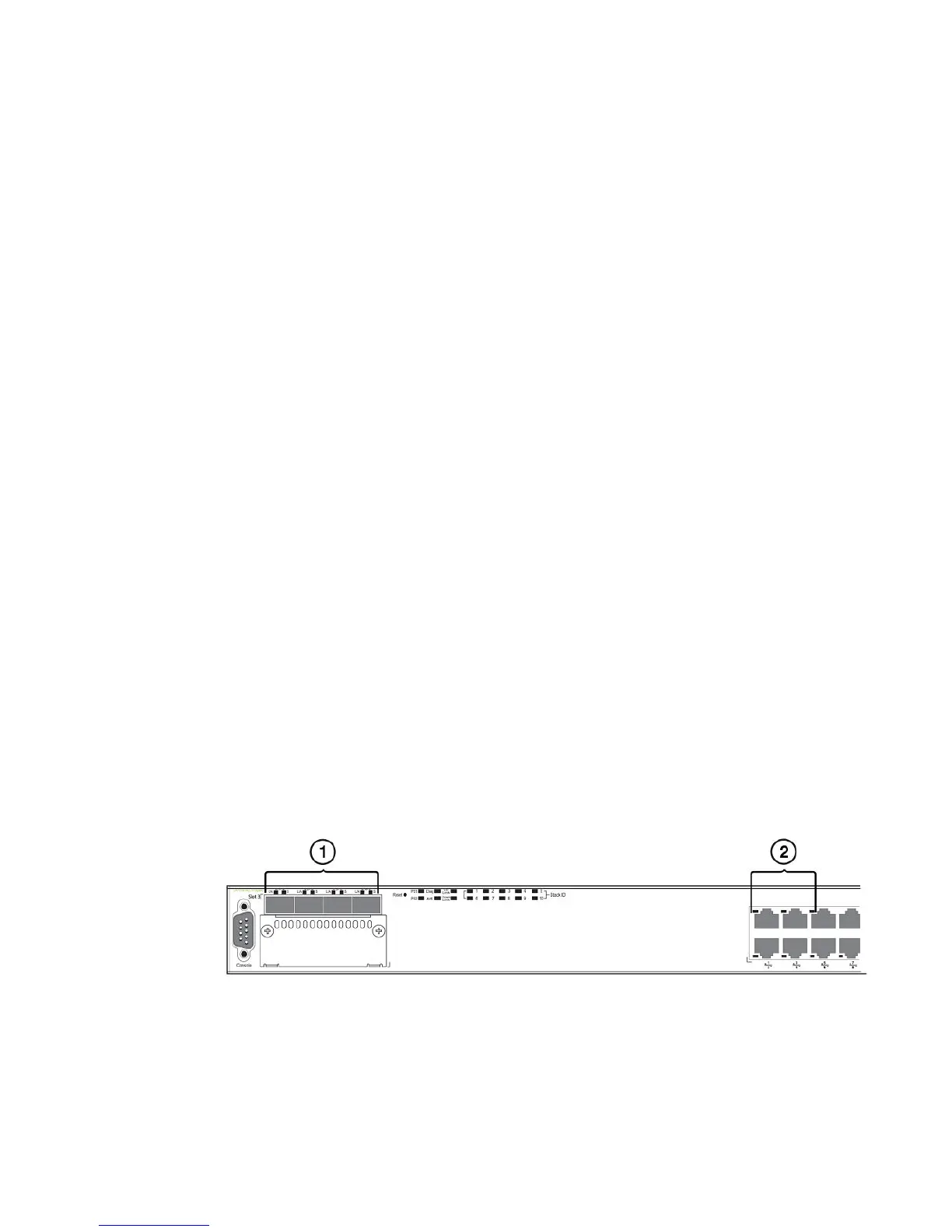

FIGURE 18 Port status LEDs
1. Port status LEDs
2. Port status LEDs
Port, system, and power status LEDs for Brocade FCX 624S, FCX 648S, FCX 624S-F, FCX 624S-HPOE, and FCX 648S-HPOE
Brocade FCX Series Hardware Installation Guide 25
53-1002977-01
