Port status LEDs TABLE 8
LED Condition Status
Ethernet(1~24/48)
Link or Activity or Speed
On/Flashing Green The port has established a valid link at 1000 Mbps. Flashing
indicates the port is transmitting and receiving user packets.
On/Flashing Amber The port has established a valid link at 10 or 100 Mbps. Flashing
indicates the port is transmitting and receiving user packets.
Off A link is not established with a remote port.
HPOE(1~24/48) On Green The port is providing HPOE power to a connected device.
Off The port is not providing HPOE power.
SFP(1F~4F)
Link or Activity
On/Flashing Green The SFP port has established a valid link. Flashing indicates the
port is transmitting and receiving user packets.
Off A link is not established with a remote port.
SFP(1F~4F)
Speed
On Green The SFP port is operating at 1000 Mbps.
On Amber The SFP port is operating at 100 Mbps.
Off A link is not established with a remote port.

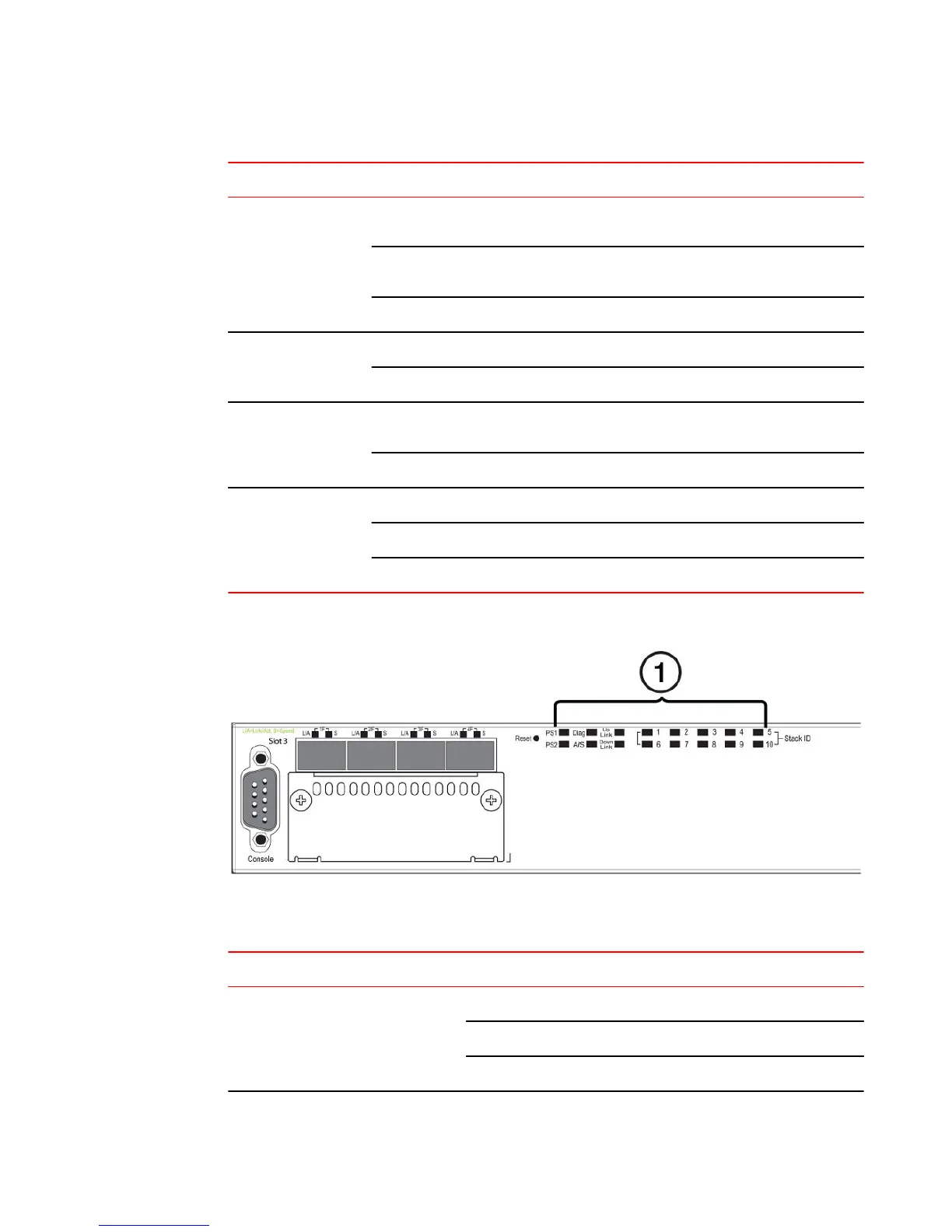

FIGURE 19 System status LEDs
1. System status LEDs
System status LEDs TABLE 9
LED Condition Status
PS1
PS2
(Power Supply Status)
Green Power supply is operating normally.
Amber Power supply fault.
Off Power off or failure.
Product Overview
26 Brocade FCX Series Hardware Installation Guide
53-1002977-01
