2-7
Brooks
®
Digital MFC's & MFM's
Section 2 Installation
Installation and Operation Manual
X-TMF-SLA5800-MFC-eng
Part Number: 541B027AAG
April, 2013

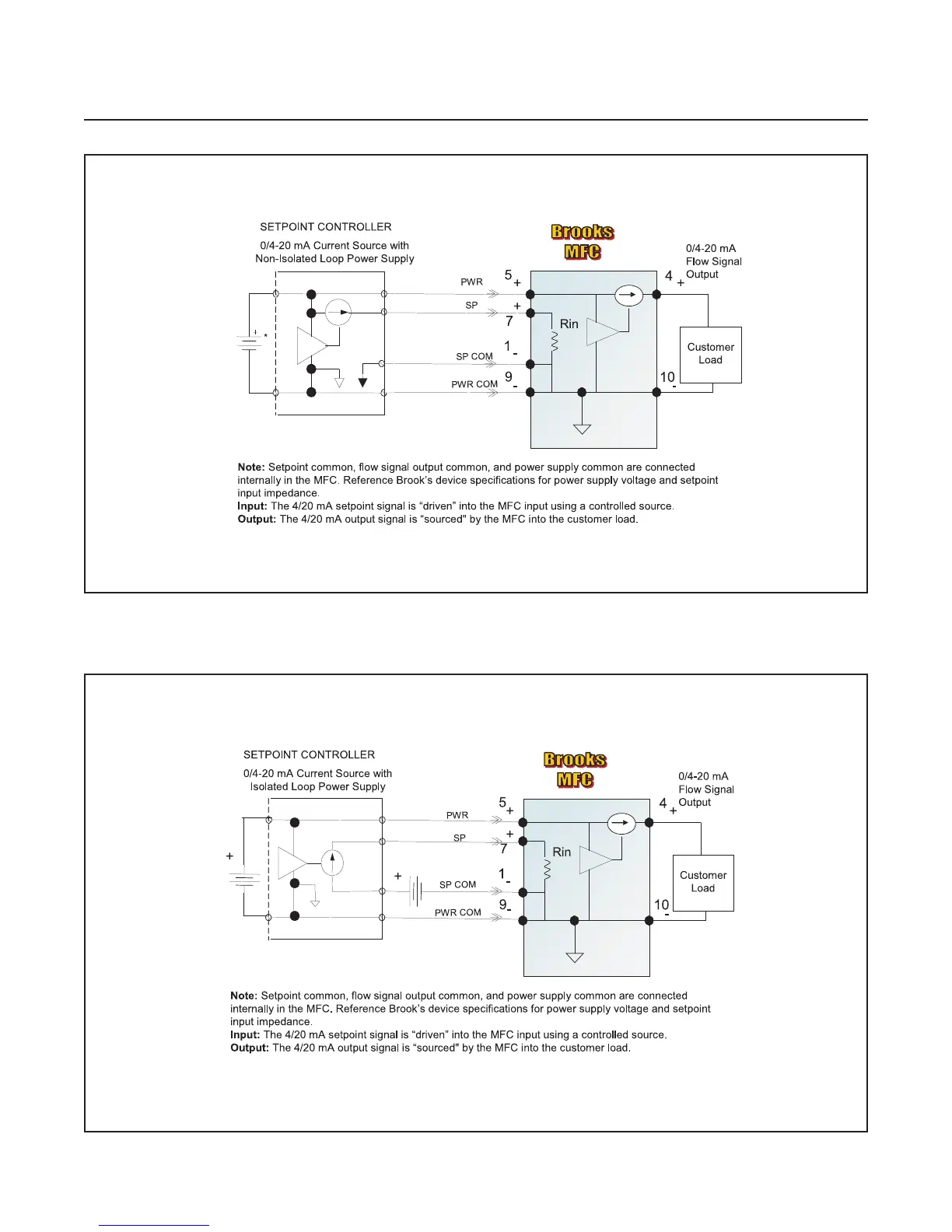

Figure 2-3 Recommended I/O Wiring Configuration for Current Signals (Non-Isolated Power Supply)
Figure 2-4 Recommended I/O Wiring Configuration for Current Signals (Isolated Power Supply)
