3. INSTALLATION
BAS-311HN, BAS-326H
11

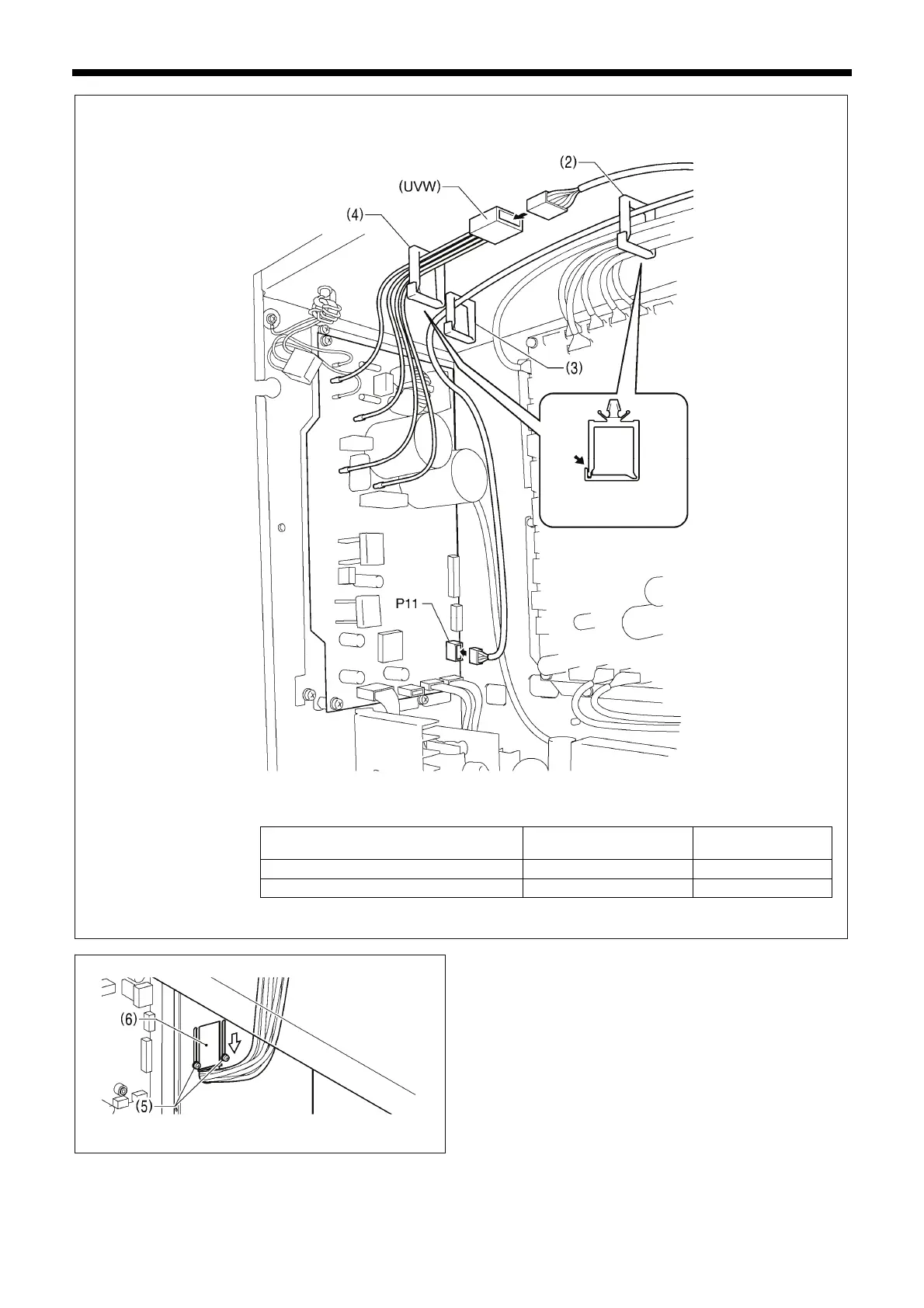

Connectors
Connection location on
motor P. C. board
Cord clamps
Upper shaft motor [4-pin]
（UVW）
(4)
Synchronizer [10-pin]
P11（SYNC）
(2) (3)
5. Close the cord presser plate (6) in the direction of the white
arrow, and secure it by tightening the two screws (5).
NOTE:
Close the cord presser plate (6) securely so that no
foreign objects, insects or small animals can get inside the
control box.
6. Check that the cords do not get pulled, and then gently return
the machine head to its original position.
3537B
< Motor P. C. board >
Lock the cord clamps
securely.
3538B
To Next Page
