[2] Disconnecting Cables, Removing Accessories, and Setting the Protective Part
Perform the following steps before disassembly.
(1) Disconnect the following:
- Power cord (for 200V models)
- Telephone line cord
- USB interface cable (when connected)
- External telephone line modular jack (when connected) (When not connected,
remove the EXT cap.)
(2) Remove the Paper tray ASSY.
(3) <Ink Cartridge Model only>
Remove the Ink cartridge and attach the Protective part.
(;7/,1(

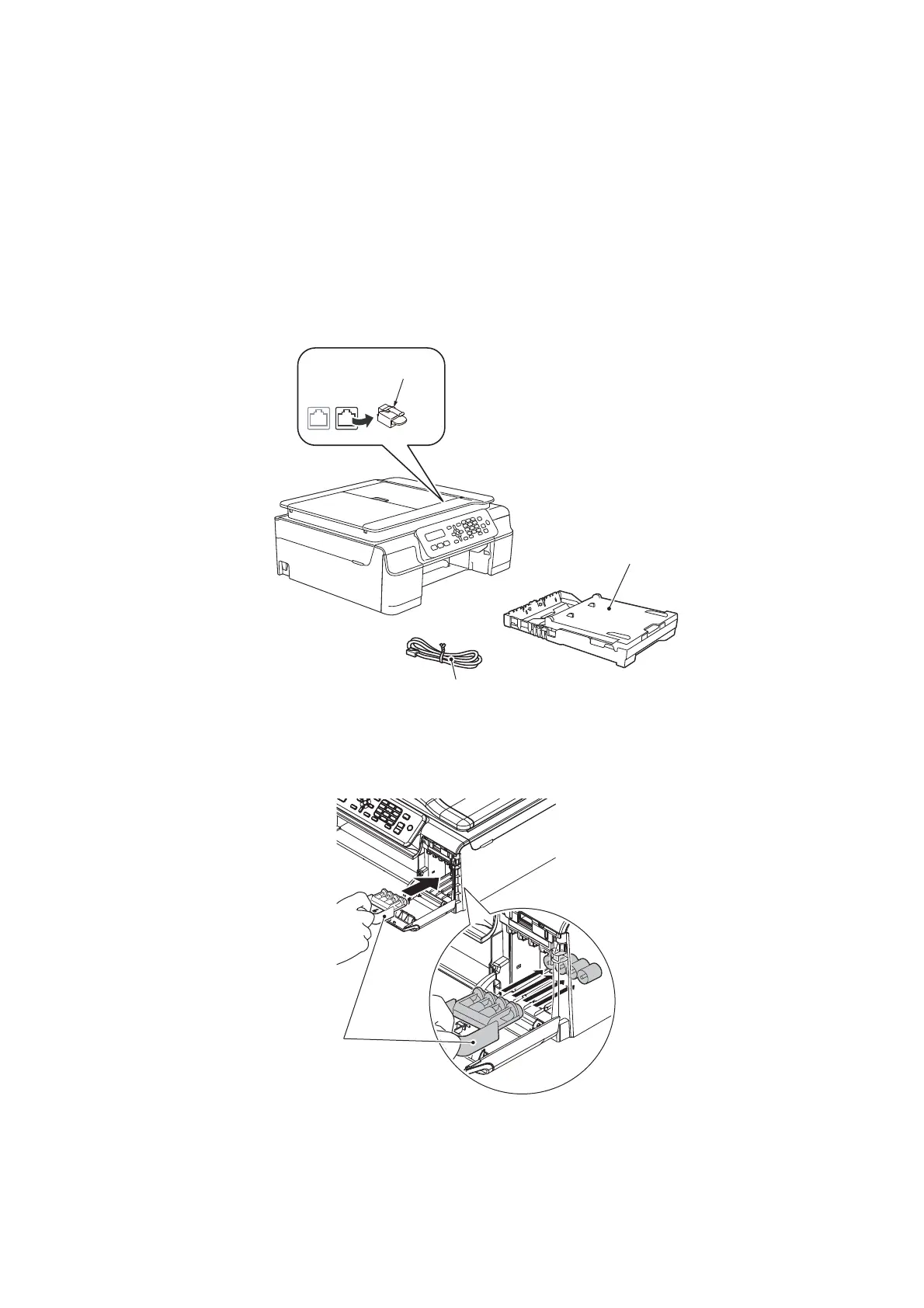

(3_016L)
Telephone line cord
EXT cap
Paper tray ASSY
(3_017L)
Protective part
