9.24 Platen ASSY

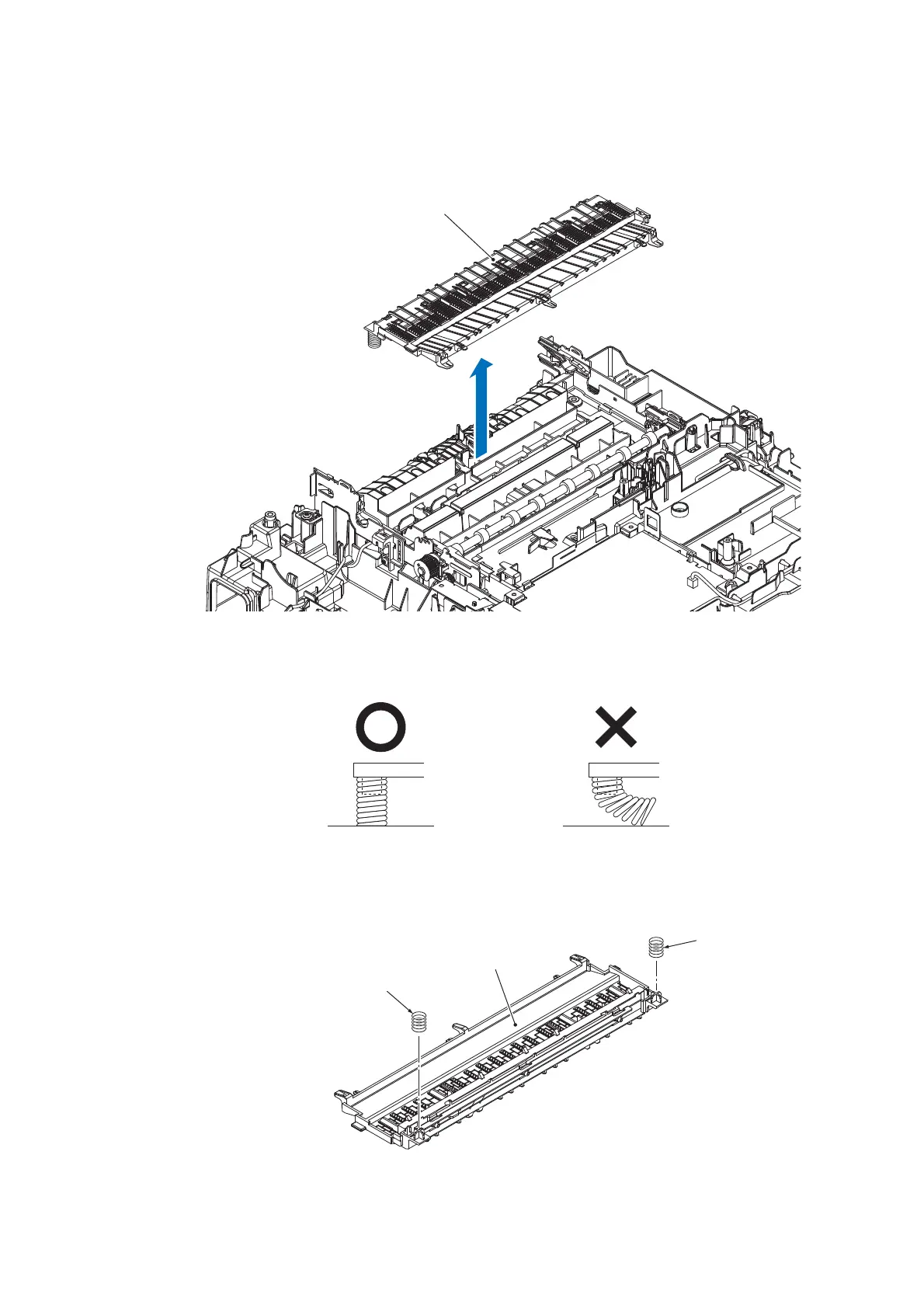

(1) Raise the rear end of the Platen ASSY, and then remove it.
Assembling Note Make sure that the Platen springs are not folded or turned down.
(2) Remove the two Platen springs from the Platen.
(3_069L)
Platen
(3_079L)
(3_070L)
Platen spring
Platen
Platen spring
