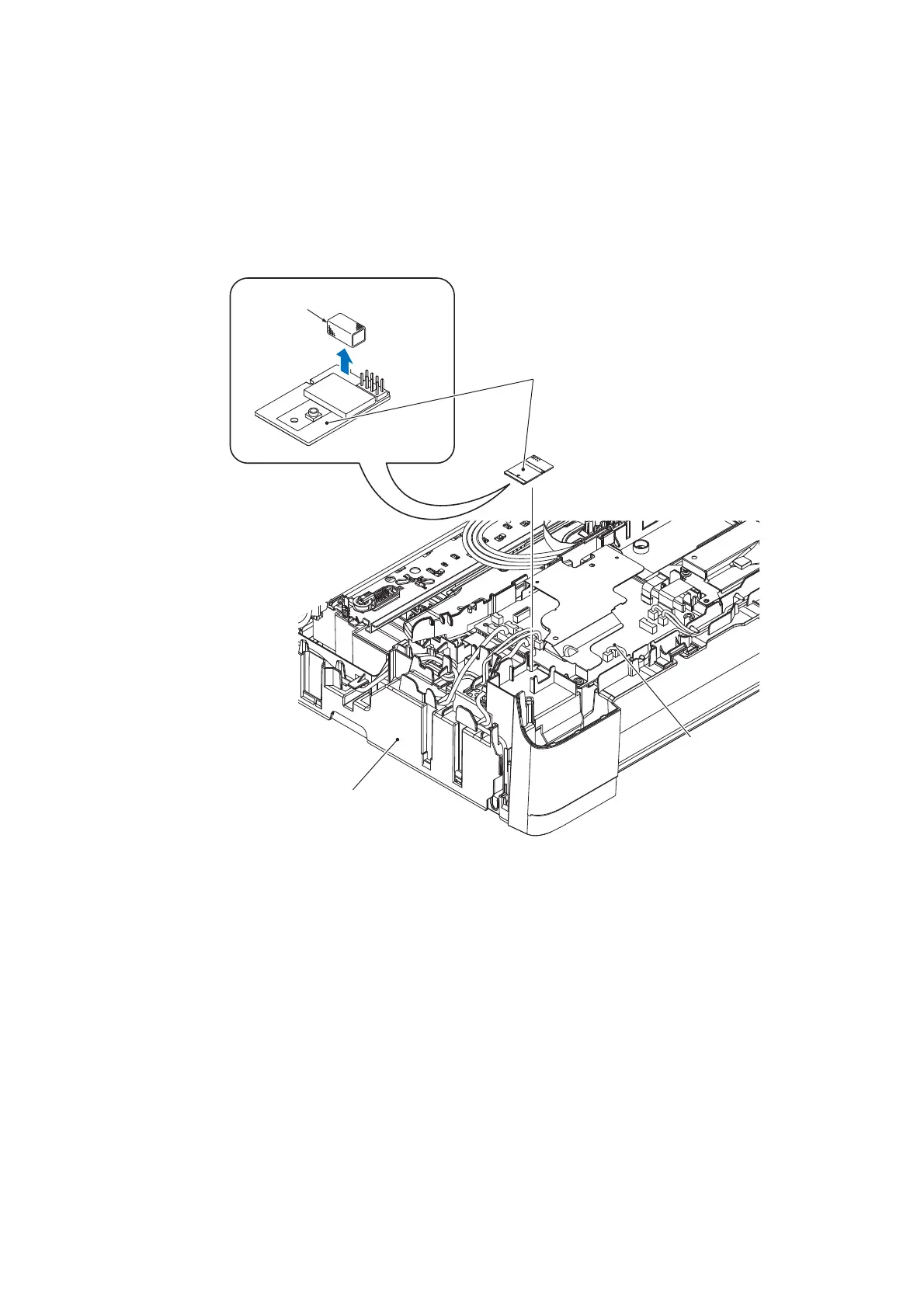

9.10 Wireless LAN PCB ASSY (Only for the Models with Wireless LAN)
(1) Take out the Wireless LAN PCB ASSY from the Main PCB ASSY.
(2) Remove the Gasket from the Wireless LAN PCB ASSY.
Note When removing the Wireless LAN PCB ASSY, do not hold the tape on the top of the
ASSY.
Assembling Note Make sure to attach the Gasket to the Wireless LAN PCB ASSY.
(3_045L)
Gasket
Wireless LAN PCB ASSY
Lower cover
Main PCB ASSY
