3-62
Confidential

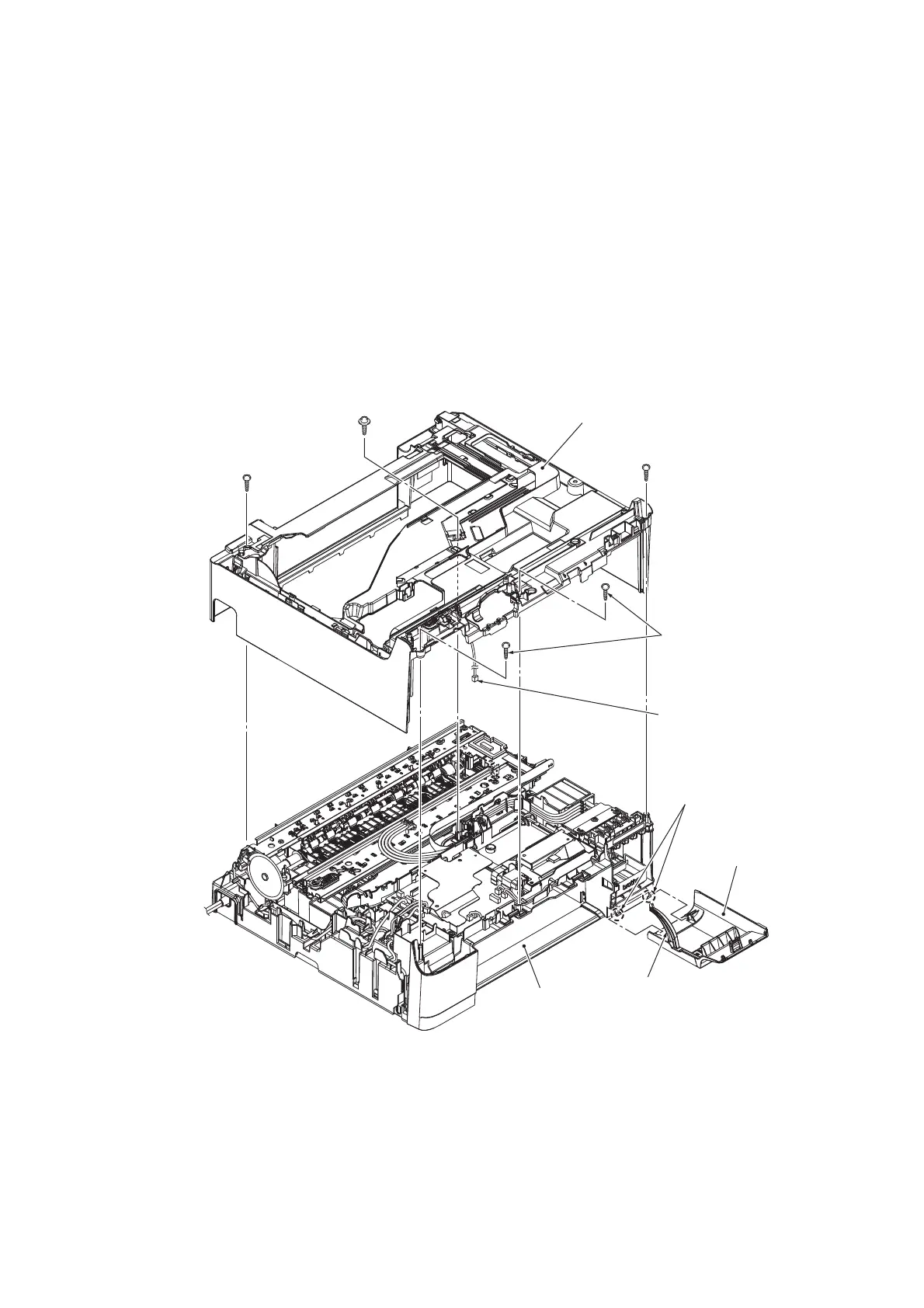

9.8 Upper Cover / Ink Cartridge Cover
(1) From the Upper cover, remove the four screws of the TAPTITE BIND B M4x12 and the
screw of the TAPTITE CUP B M3x10.
(2) Disconnect the Document scanner sensor connector.
(3) Hold the Upper cover on both ends and lift it up diagonally.
Note When lifting the Upper cover up, do not insert your hand inside the aperture on top of
the Platen. Doing so might stain or damage the CR encoder strip inside.
(4) Slightly lift the front end of the Lower cover and fully open the Ink cartridge cover.
Remove the Cover arm from the Lower cover by bending it to the left, then remove it
downwards from the left and right boss of the Lower cover.
(3_043L)
TAPTITE BIND B M4x12
Upper cover
Boss
Lower cover
Ink cartridge cover
Cover arm
TAPTITE BIND B M4x12
TAPTITE BIND B M4x12
Document scanner
sensor connector
TAPTITE CUP B M3x10
To Next Page
