Brother DCP-J100 Service Manual

3-93
Confidential
9.29 Base Pad on Paper Tray ASSY
(1) When there is a need to replace the Base pad, peel it off from the bottom of the Paper
tray.
Note Once removed, the Base pad will become unusable and will need to be replaced with
a new one.
Assembling Note When attaching a new Base pad to the Paper tray, align the front end of
the pad with the front end of the depression, and the left and right position with the center
of the depression, as shown above.

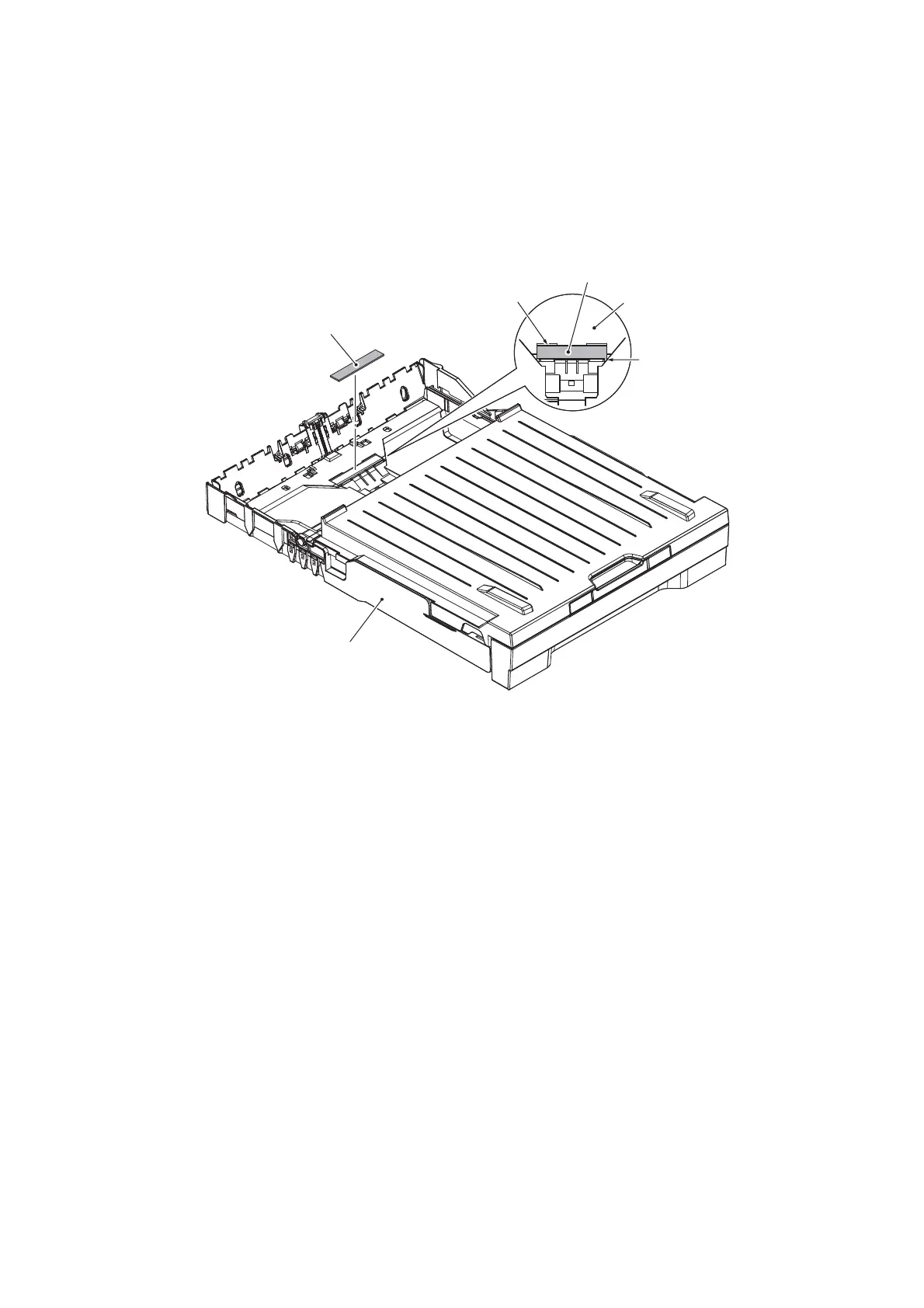

(3_078L)
Base pad
Depression
Base pad
Paper tray
Align the Base pad edge with
the front end of the
depression (this line) at the
bottom of the Paper tray.
Paper tray

Brother DCP-J100 Specifications

General

Duplex printing	No
Print technology	Inkjet
Maximum resolution	1200 x 6000 DPI
Economical printing	Yes
Print speed (black, normal quality, A4/US Letter)	27 ppm
Print speed (color, normal quality, A4/US Letter)	10 ppm
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 2400 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4
Scan to	E-mail, File, Image
Scan drivers	ICA, TWAIN, WIA
Scanner type	Flatbed scanner
Grayscale levels	256
Input color depth	30 bit
Maximum scan area	A4 (210 x 297) mm
Output color depth	24 bit
Maximum scan resolution	19200 x 19200 DPI
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	4
Paper input type	Paper tray
Total input capacity	100 sheets
Total output capacity	50 sheets
Envelopes sizes	10, C5, DL, Monarch
Photo paper sizes	10x15 cm
Custom media width	98 - 215.9 mm
Custom media length	148 - 355.6 mm
Paper tray media types	Coated paper, Envelopes, Glossy paper, Plain paper, Transparencies
Non-ISO print media sizes	2L, Executive (184 x 267mm), Index card, Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Borderless printing media sizes	10x15, 2L, A4, A6, Index card, Letter
Maximum ISO A-series paper size	A4
Display	LCD
Product color	Black
Market positioning	Home & office
Display number of lines	1 lines
Display number of characters	16
Mobile printing technologies	Not supported
Direct printing	-
Standard interfaces	USB 1.1, USB 2.0
USB 2.0 ports quantity	1
Sound pressure level (printing)	50 dB
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.2 W
Power consumption (standby)	2.5 W
Power consumption (PowerSave)	0.7 W
Power consumption (average operating)	16 W
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows RT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	20 - 33 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	374 mm
Width	435 mm
Height	161 mm
