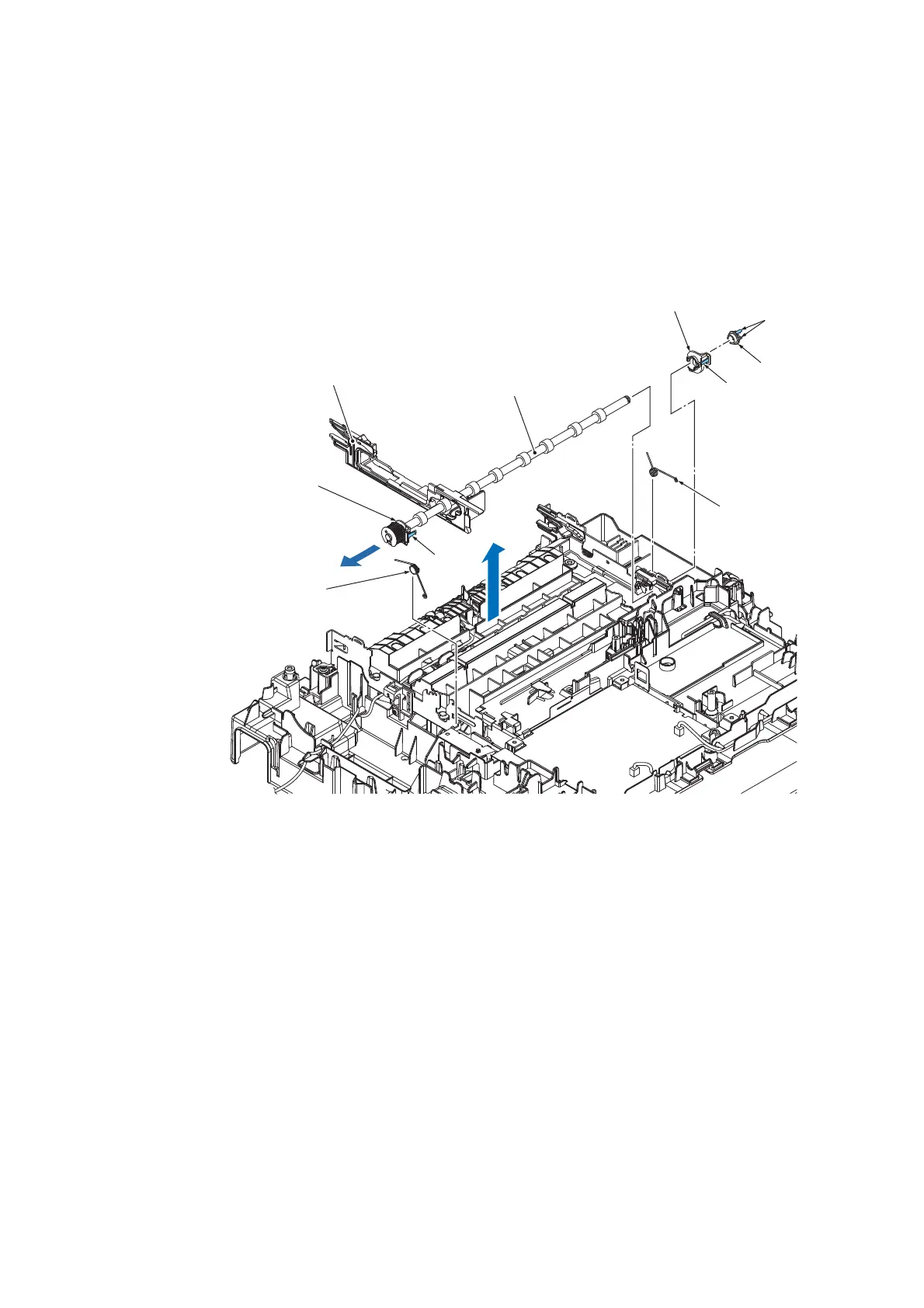

9.25 Paper Ejection Roller ASSY
(1) Remove the Paper ejection roller support springs L/R.
(2) Release the two latches, and remove the Stopper rings.
(3) Release the hook, and then remove the bearing R.
(4) Release the hook of the bearing L, and then remove the Release lever and Paper
ejection roller ASSY.
(3_071L)
Release lever
Paper ejection roller ASSY
Paper ejection
support spring R
Latch
Hook
Bearing L
Stopper ring
Paper ejection support
spring L
Bearing R
Hook
