Brother DCP-J100

2-7
Confidential

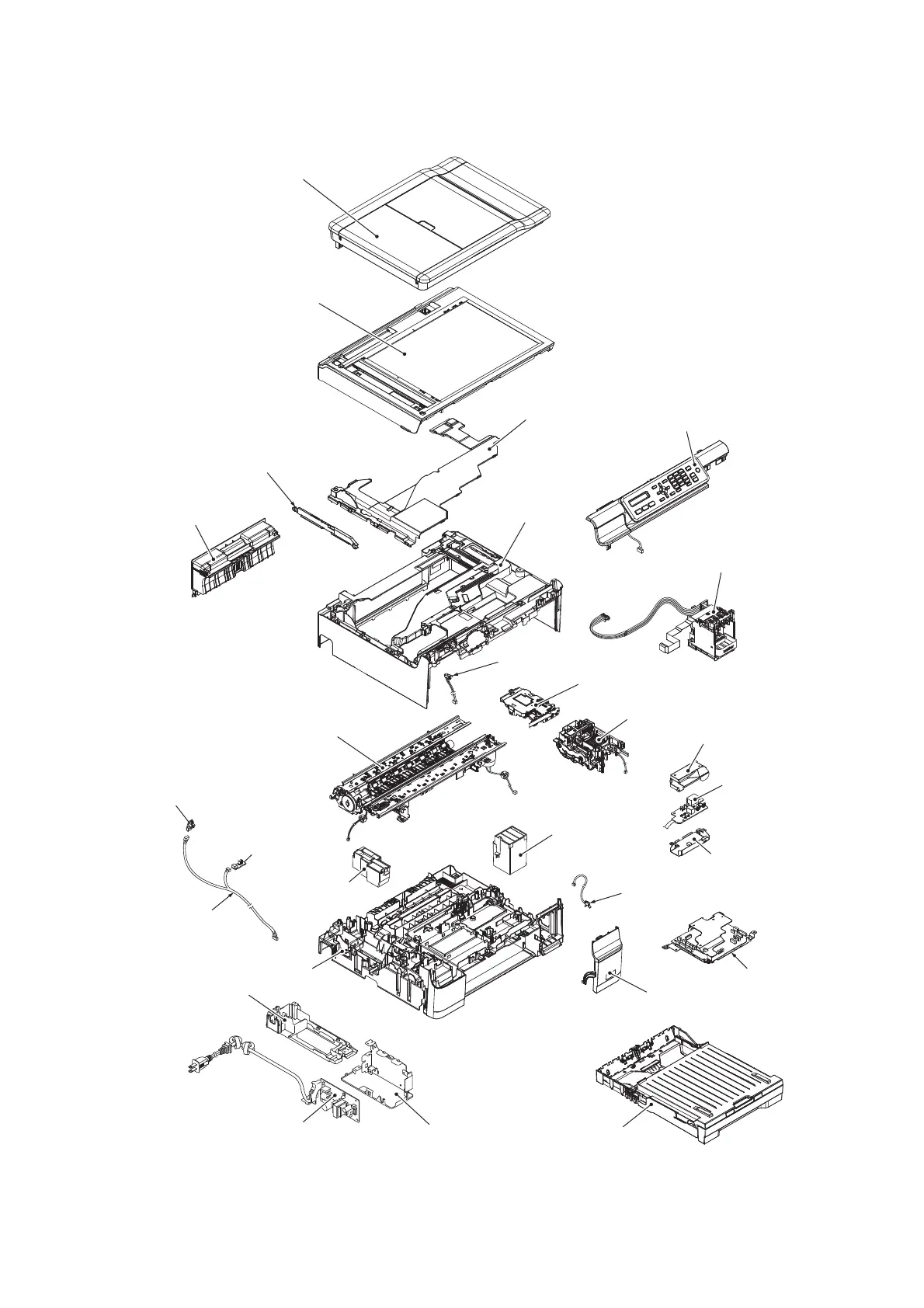

2.5 Components
(mini13_Low_COMPONENTS)
Document scanner unit
Automatic Document Feeder (ADF) &
Document cover ASSY *1
Document cover ASSY *2
Scanner cover support
Jam clear cover
*1 For models with ADF
*2 ADF For models without ADF
Harness cover
Upper cover
Control panel ASSY
Head/carriage unit
Maintenance unit
Ink refill ASSY
MJ upper frame
MJ PCB
MJ lower frame
Ink absorber box
Ink cartridge cover
sensor ASSY
Main PCB ASSY
Ink cartridge cover
Document scanner
sensor
Paper tray ASSY
Lower power supply
frame
Power supply
PCB ASSY
Power cord holder
Lower cover
PF/Registration
sensor
harness ASSY
Registration sensor
PCB ASSY
Flushing box
Engine unit
PF encoder sensor
PCB ASSY
