Brother DCP-J100

3-86
Confidential

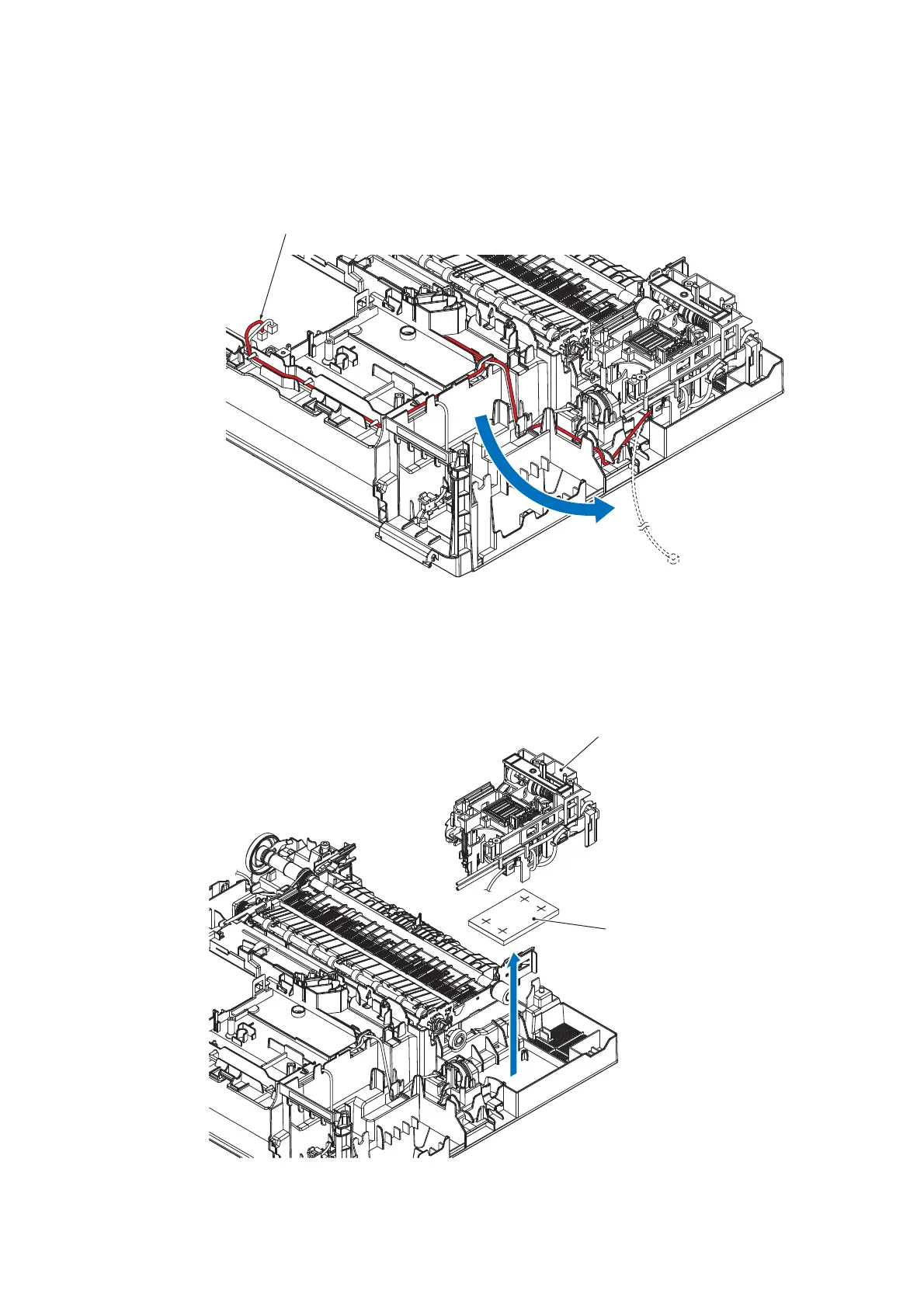

9.22 Maintenance Unit
(1) Remove the Purge cam sensor harness wiring.
(2) Remove the Maintenance unit.
(3) Remove the Ink absorber felt (for the Maintenance unit).
(3_065L)
Purge cam sensor harness
(3_066L)
Maintenance unit
Ink absorber felt
(for the Maintenance unit)
(Rear
