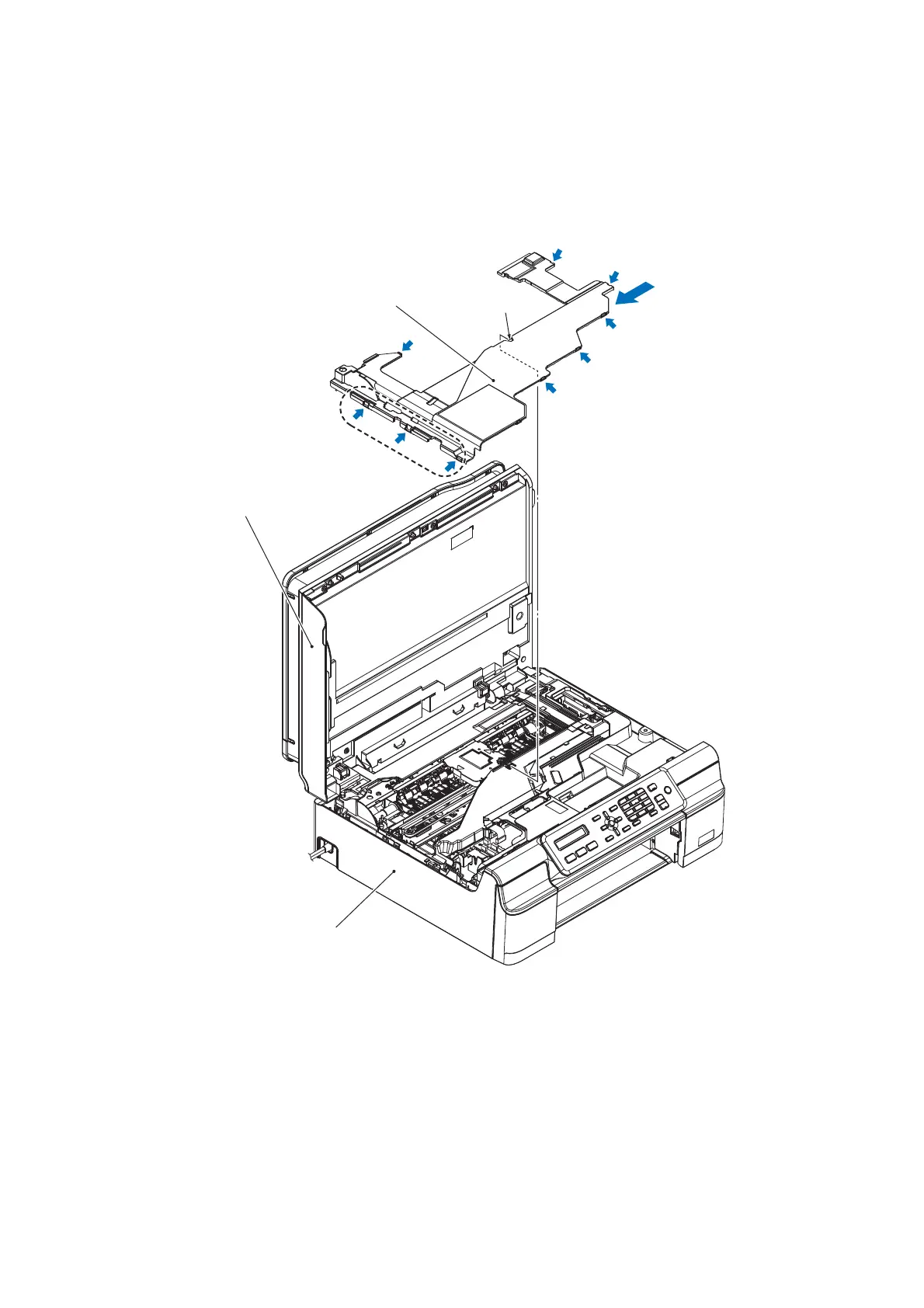

(7) Release hook ① and ② of the Harness cover then release hook ③ by lightly inserting
a flathead screwdriver. Next, release tab ④ , then while moving it to the left, release
hook ⑤ .
Note Follow the order illustrated below when removing the Harness cover. Not doing so
may damage the Upper cover hooks.
ձ
յ
ղ
ճ
մ
(3_023L)
Document scanner unit
Tab
Harness cover
Upper cover
