(4) Unplug the following harnesses from the Main PCB ASSY:
- ADF motor harness (4-wire)
*1
- Document scanning position sensor harness (3-wire)
*1
- Document detection sensor harness (3-wire)
*1
- Document scanner motor harness (4-wire)
(3_091L)

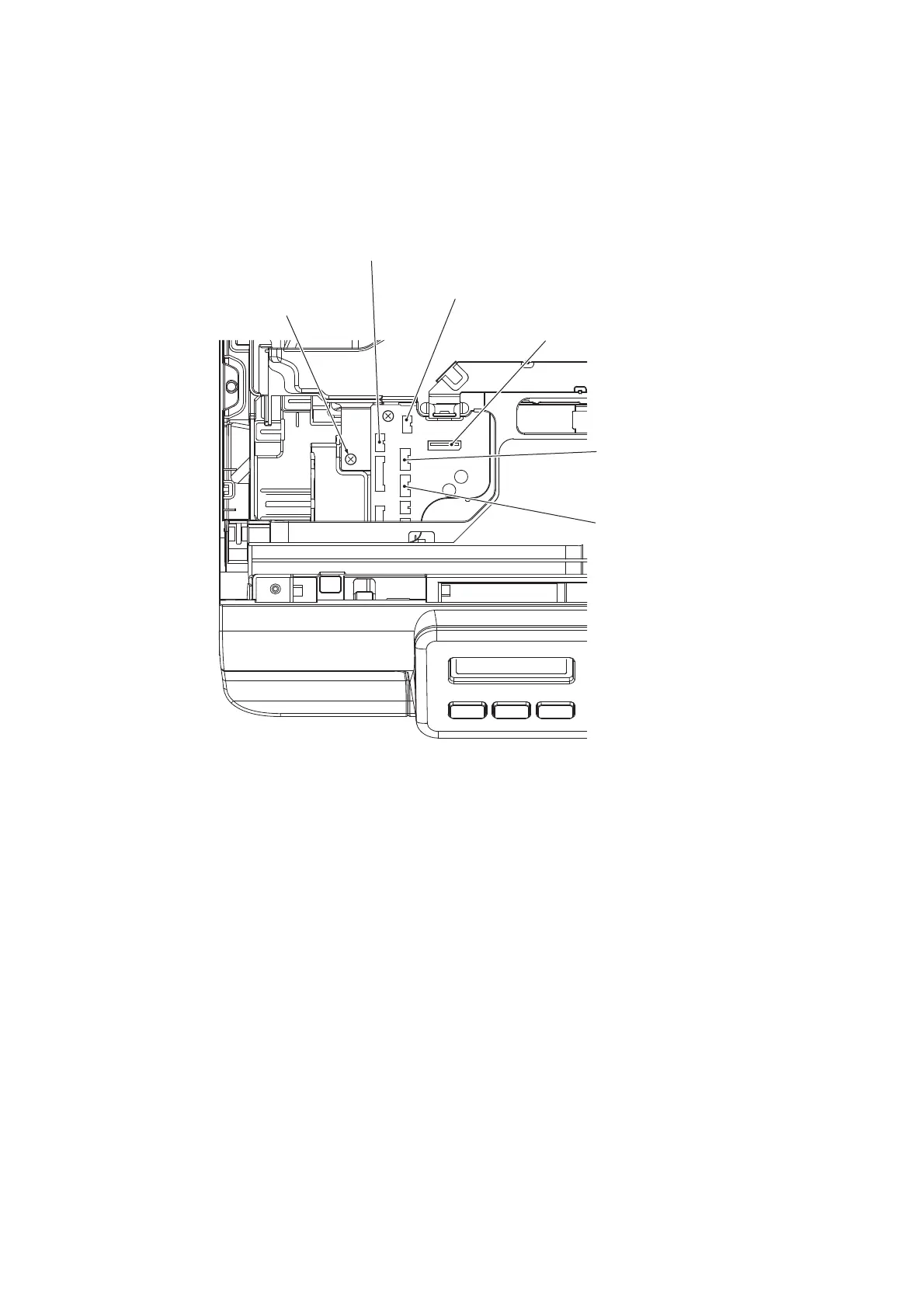

Document detection sensor harness
ADF FG wire & Document
scanner FG wire
Document scanning position sensor harness
CIS flat cable
Document scanner motor
harness
ADF motor harness
