Brother DCP-J100

3-49
Confidential

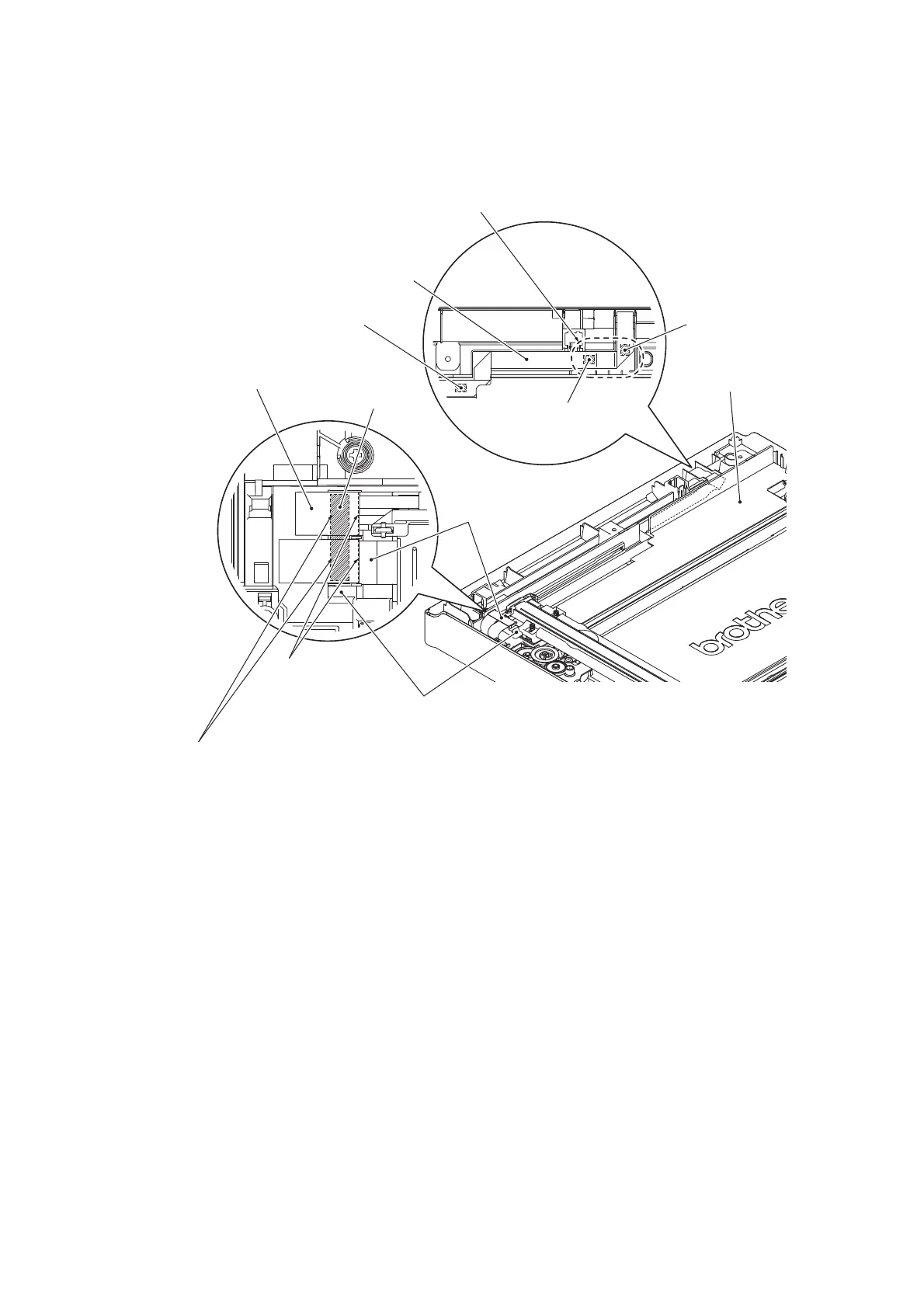

2) Connect the CIS flat cable to the CIS unit, and route it around the cable guide as
shown below.
(3_061)
② Double-sided
CIS flat cable
[CIS side] Align the
fold of the CIS flat
cable and attach it to
the CIS carriage
without any bending.
Document scanner
bottom cover
CIS flat cable
[Main unit side] Install the CIS flat cable in the following order and adjust
the bend of the cable in the location marked by the dotted circle.
③ Double-sided tape
Double-sided tape
① Double-sided tape
CIS flat cable
CIS carriage
The pasting portions to the CIS
carriage have low adherence
property. Firmly press on it
three times or more.
