Brother DCP-J100

3-56
Confidential

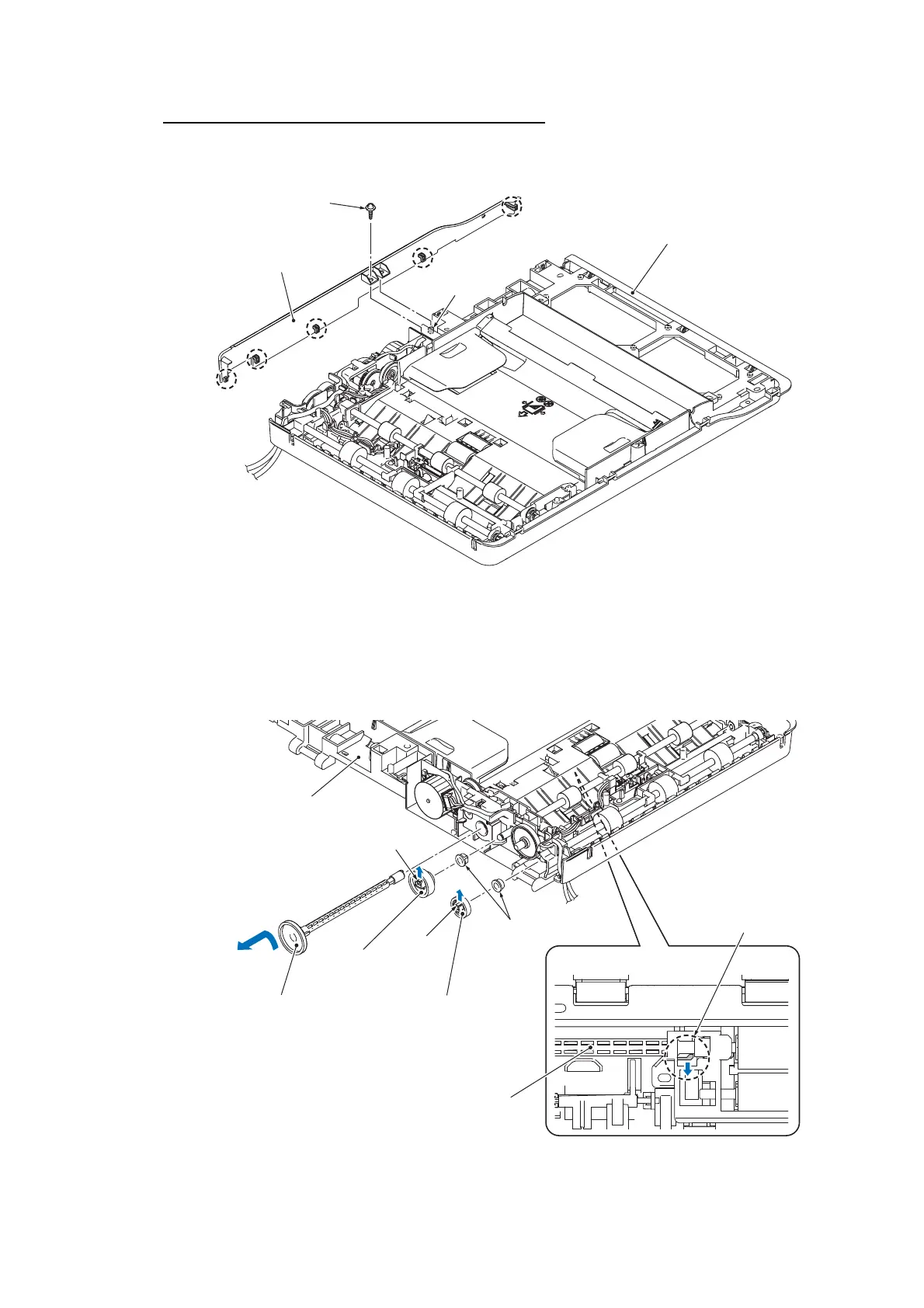

ADF back cover / Document separate roller ASSY
(16)Remove the screw from the TAPTITE CUP B M3x10, release the boss, and release
the five hooks to remove the ADF back cover.
(17)
Open the latch from the outside and remove the Document feed roller 1 gear. Release
the latch at the back of the ADF unit and pull out the Document separation roller gear
(outside) by turning it.
(18)Release the latch and Document feed roller 2 gear.
(19)Remove all bearings from Document feed roller 1 and 2.
Assembling Note Attach the gears as shown in Section 6 in this chapter.
(3_074)
ADF back cover
ADF unit
Boss
Hook
Hook
Hook
Hook
TAPTITE CUP B
M3x10
(Front)
(Left)
(3_075)
ADF unit
Latch
Latch
Document separation
roller gear (outside)
Bearing
Document feed
roller 2 gear
Document feed
roller 1 gear
(Rear)
(Left)
Latch
Document separation
roller gear (outside)
