Encoder strip guard film
(4) On the right end of the CR frame, press the rear end of the Guard film spring inward
and release the left and right end of the Encoder strip guard film from the hook.

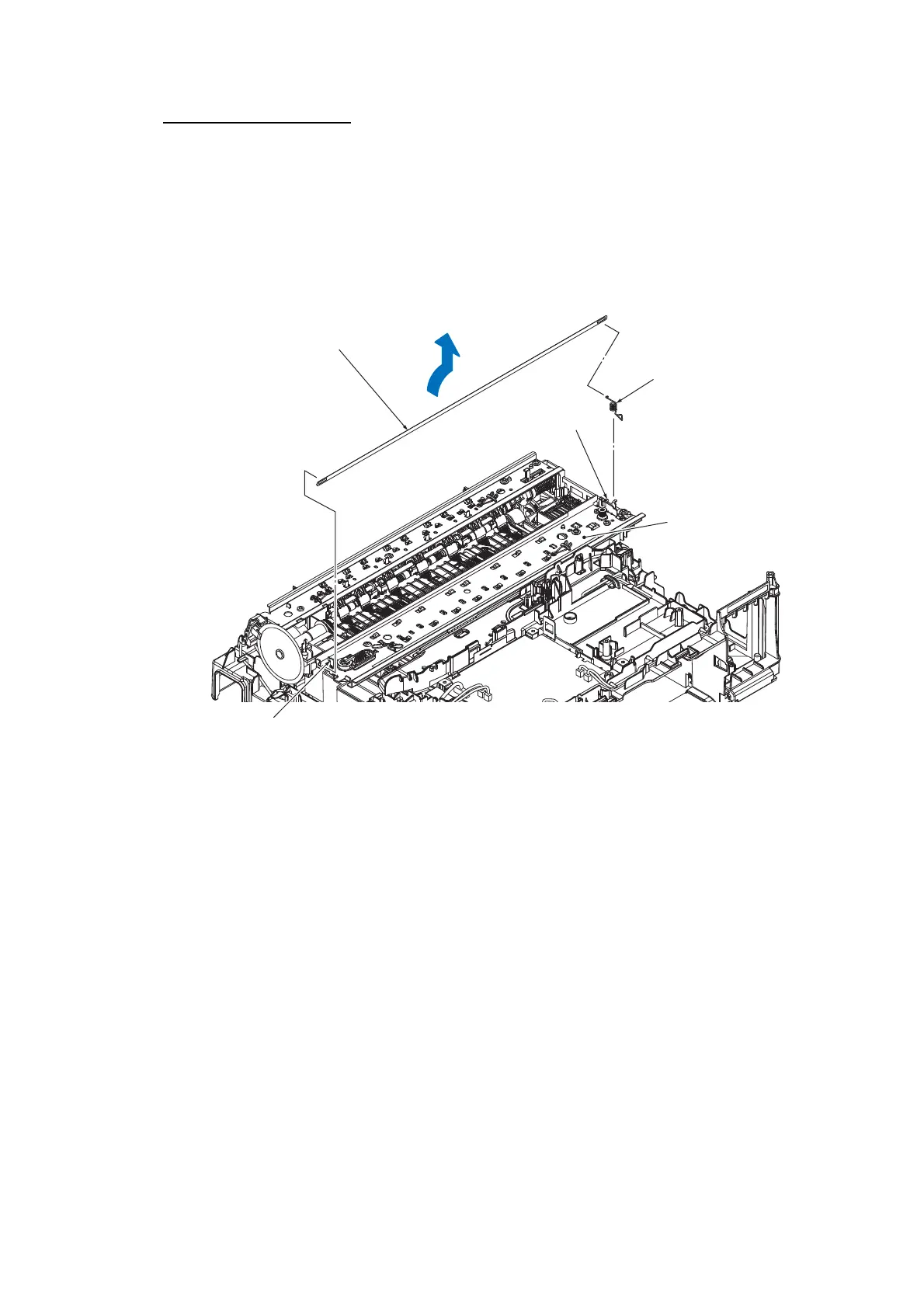

(5) Rotate the Encoder strip guard film in the direction of the arrow shown below. Remove
it after aligning the right end square opening with the boss-shape of the strip support.
(6) Detach the Guard film spring.
(3_056L)
Encoder strip guard film
Guard film spring
Strip support
Strip support
CR frame
