Brother HL-2170W - Lvps; Ps Pcb Unit; Lv Shield Plate 2

3-48
Confidential
8.22 LVPS
8.22.1 PS PCB UNIT

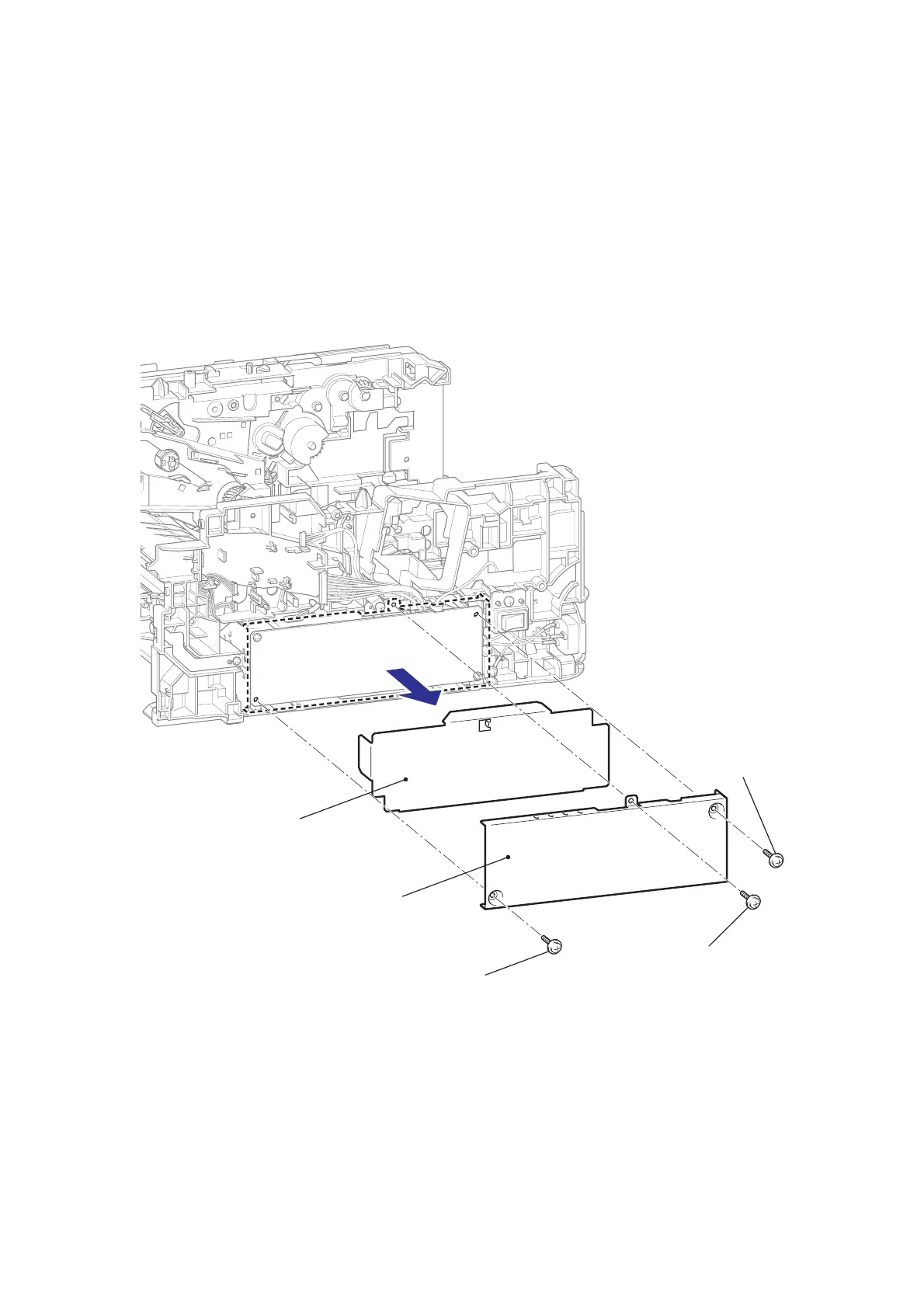

(1) Remove the Taptite pan (S/P washer) M3.5x6 screw and the two Taptite cup S M3x6 SR
screws, and then remove the LV shield plate cover and the LV insulation sheet from LV
Shield plate 2.
Fig. 3-43
Taptite cup S M3x6 SR
Taptite cup S
M3x6 SR
Taptite pan (S/P washer)
M3.5x6
LV shield plate cover
LV insulation sheet
