3-38
Confidential
8.16 PANEL PCB ASSY
(1) Remove the Panel film.
(2) Remove the Taptite cup B M3x8 screw.
(3) Remove the Panel PCB ASSY from the Main body.
(4) Disconnect the two connectors from the Panel PCB ASSY.

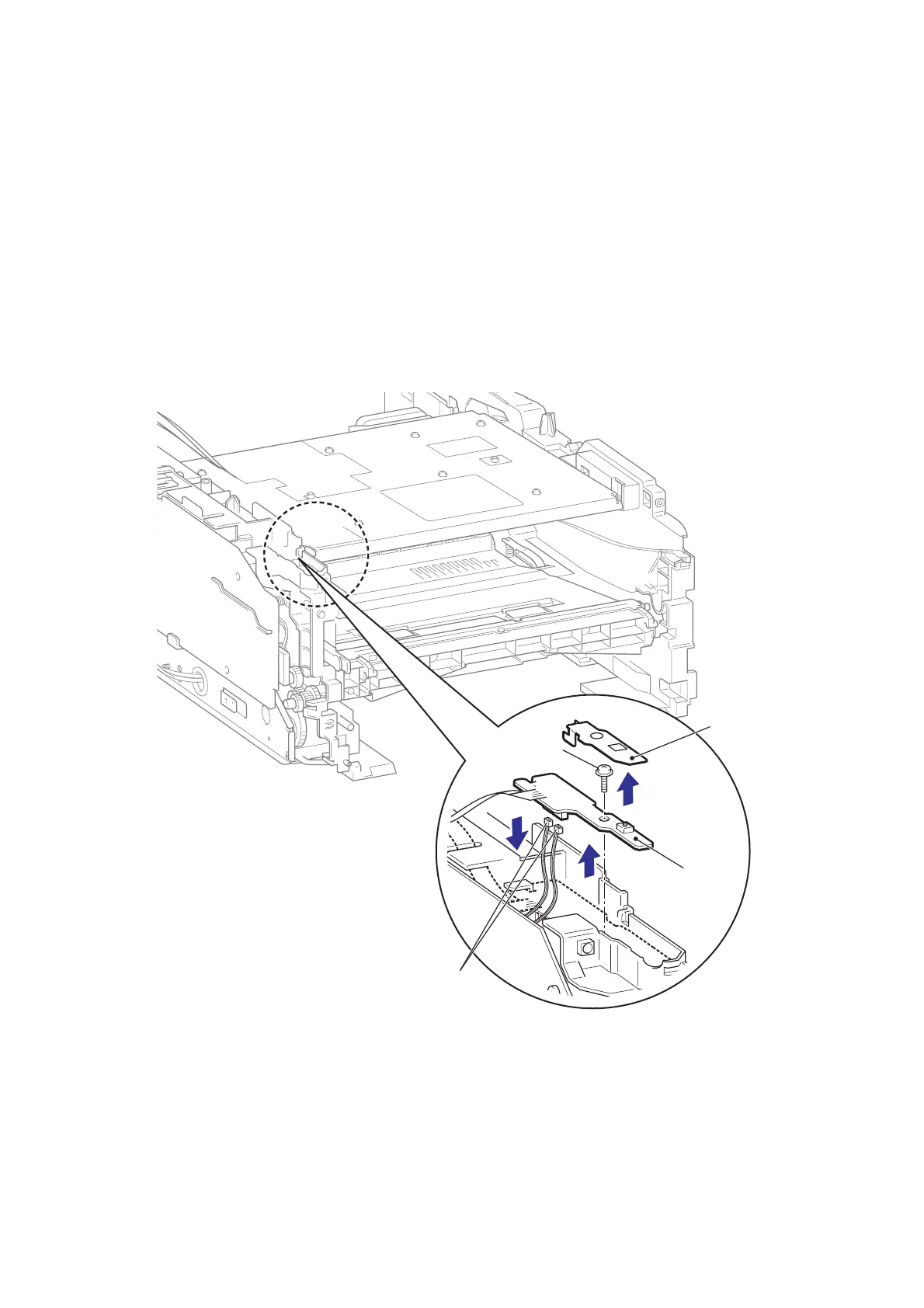

Fig. 3-32
Panel film
Panel PCB ASSY
Connector
Taptite cup B M3x8
1
3
4
