8.7 SIDE COVER R ASSY
(1) Remove the two Taptite bind B M4x12 screws.
(2) Release the Hook to remove the Side cover R ASSY from the Main body.

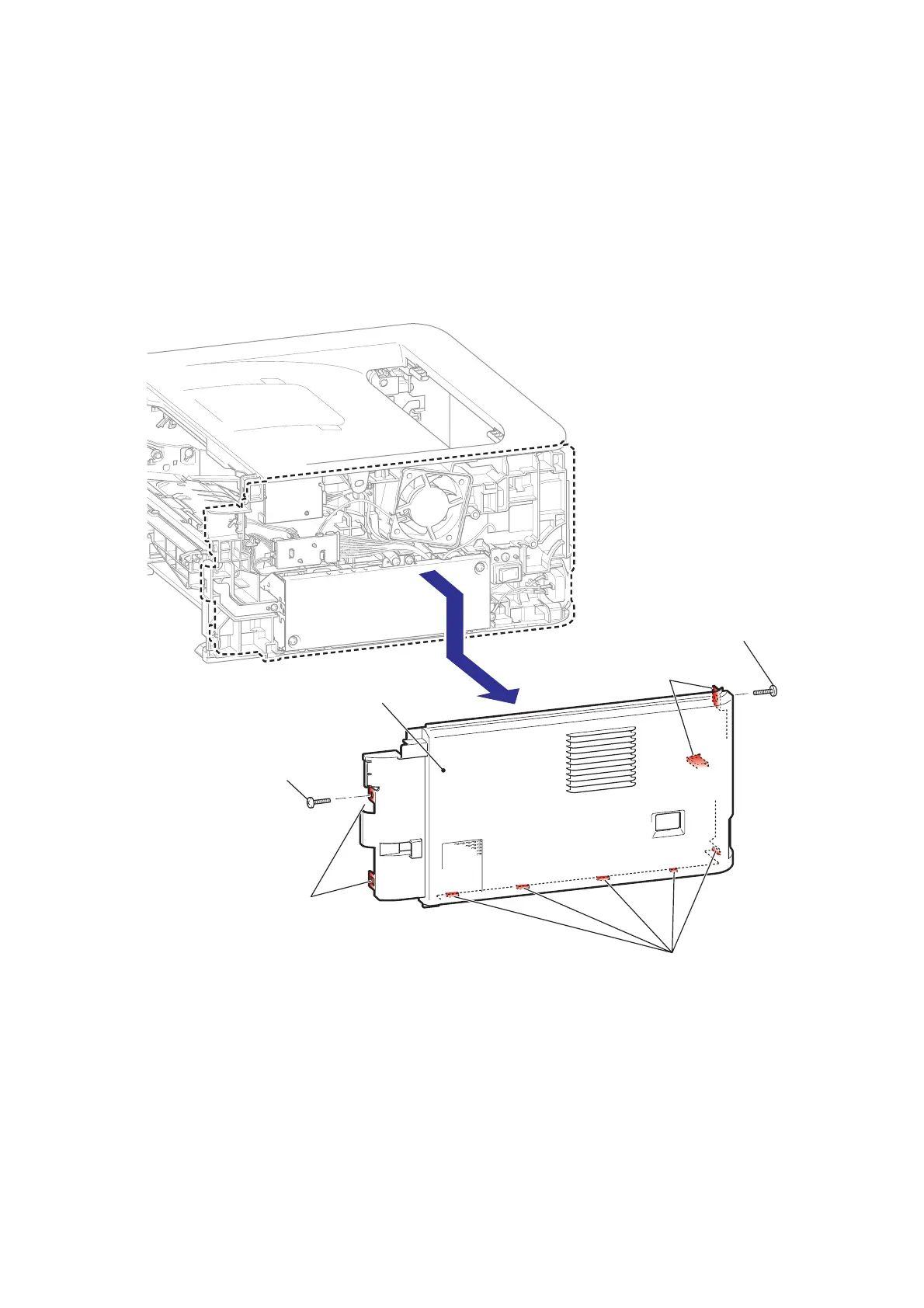

Fig. 3-19
Hook
Hook
Hook
Taptite bind B M4x12
Taptite bind B M4x12
Side cover R ASSY
