8.31 MAIN FRAME L ASSY
(1) Remove the three Taptite bind B M3x10 screws, and then remove the FU front paper
guide from the Main body.

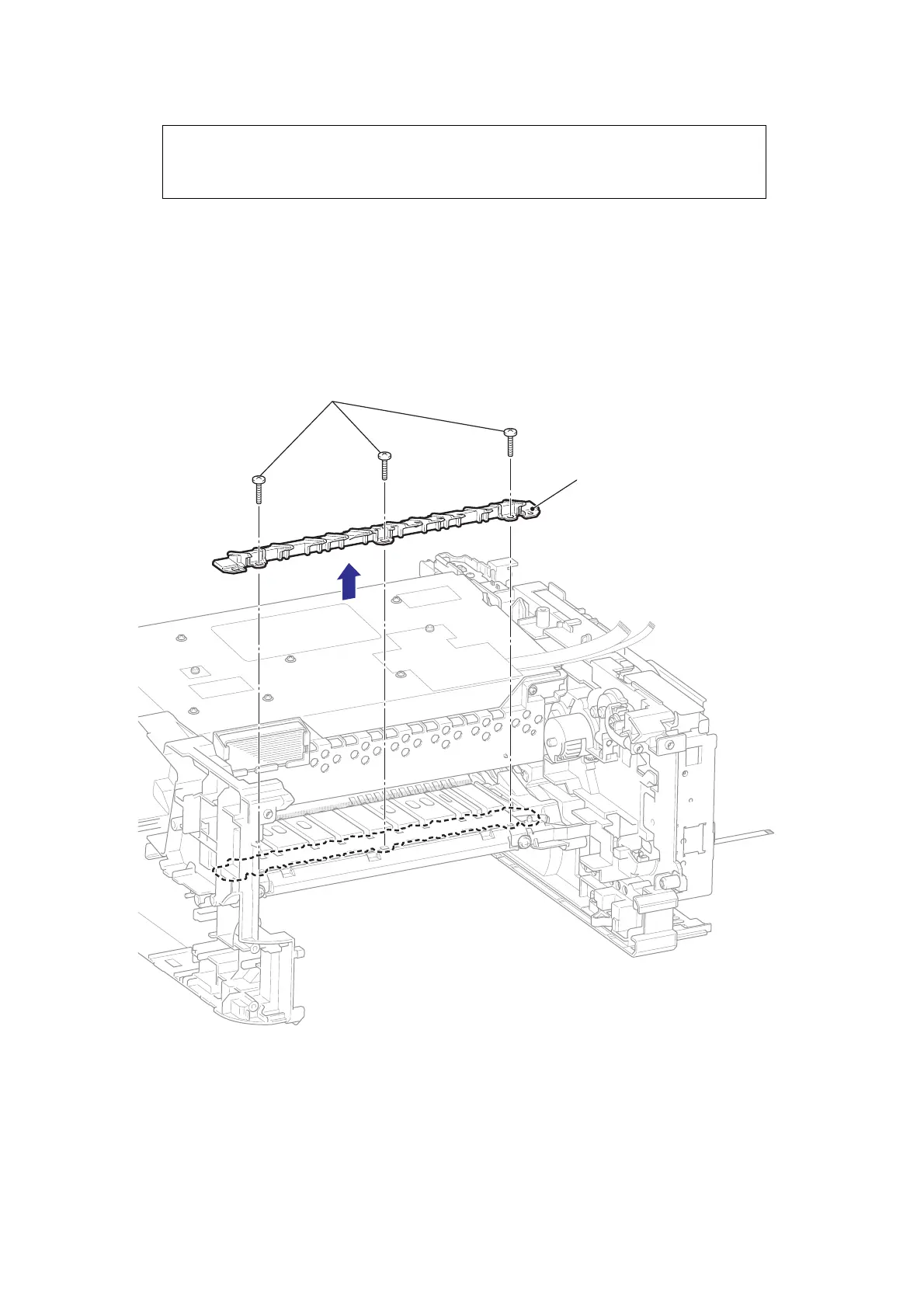

Fig. 3-67
Note:
The procedure for disassembling the Main frame L ASSY after
"8.17 HIGH-VOLTAGE PS PCB ASSY" is described below.
Taptite bind B M3x10
FU front paper guide
