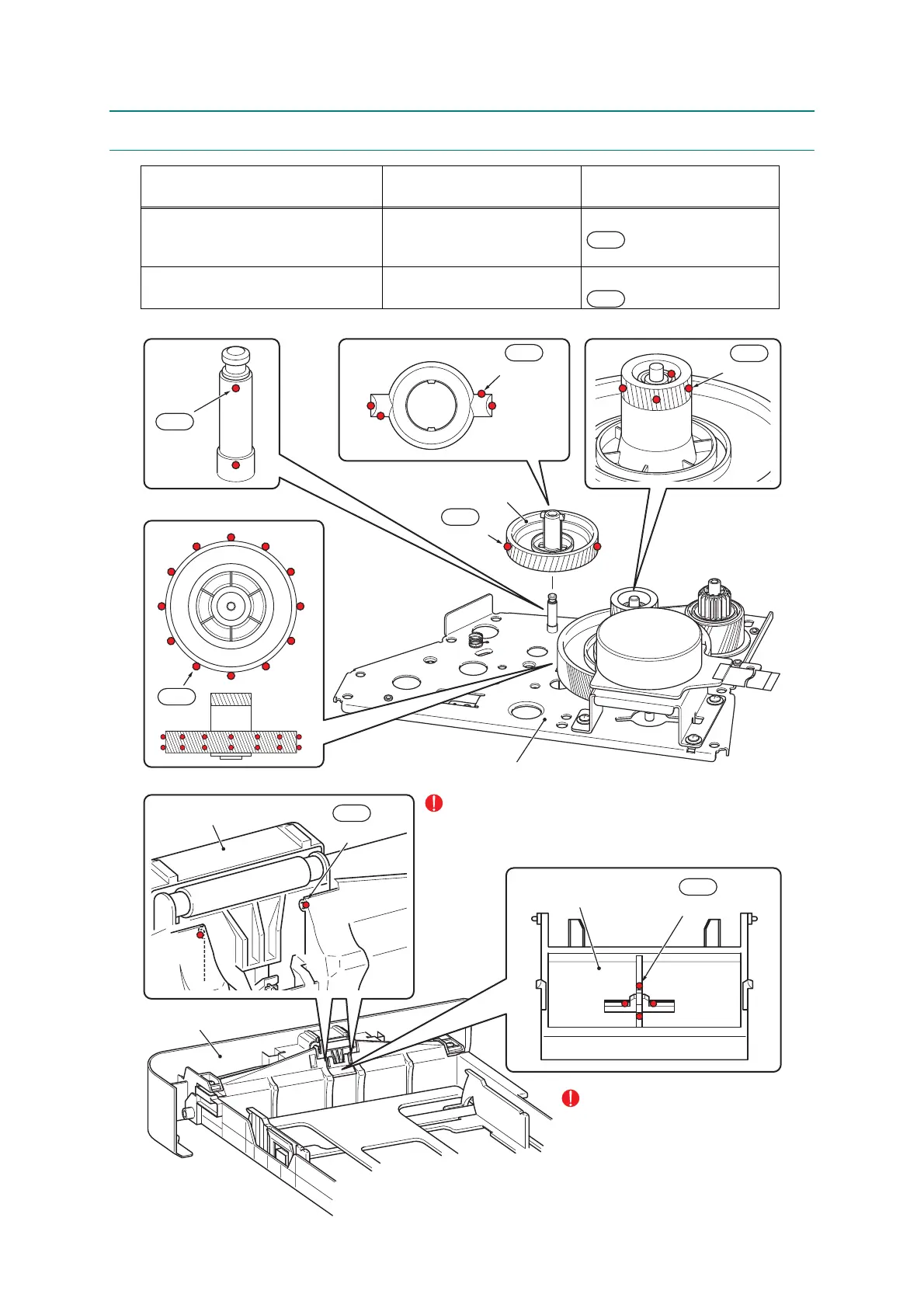

4. LUBRICATION
The kind of the lubricating oil
(Maker name)
Lubrication point Quantity of labrication
BG-MU
(Kanto Kasei)
Dev gear joint/53R
Drive sub ASSY
Drum gear 25L/139L
2mm dia. ball
MOLYKOTE EM-D110
(Dow Corning Toray)
Separation pad ASSY 2mm dia. ball
BG2
EM2
DEV gear
joint / 53R
Drive sub ASSY
Paper tray unit
CAUTION:
Be careful not to let lubricants
touch the opposite side of the
Separation pad ASSY.
CAUTION:
Be careful not to put lubricants on the
surface through which papers are fed.
Paper tray unit
EM2
2 places
BG2
2 places
BG2
4 places
BG2
4 places
BG2
2 places
BG2
24 places
EM2
4 places
Separation pad ASSY
To Next Page
