8.14.4 EJECT ROLLER ASSY 2 / BUSH R / BUSH L
(1) Remove the Eject roller ASSY 2 from the Top cover ASSY.
(2) Remove the Bush R and the Bush L from the Eject roller ASSY 2.

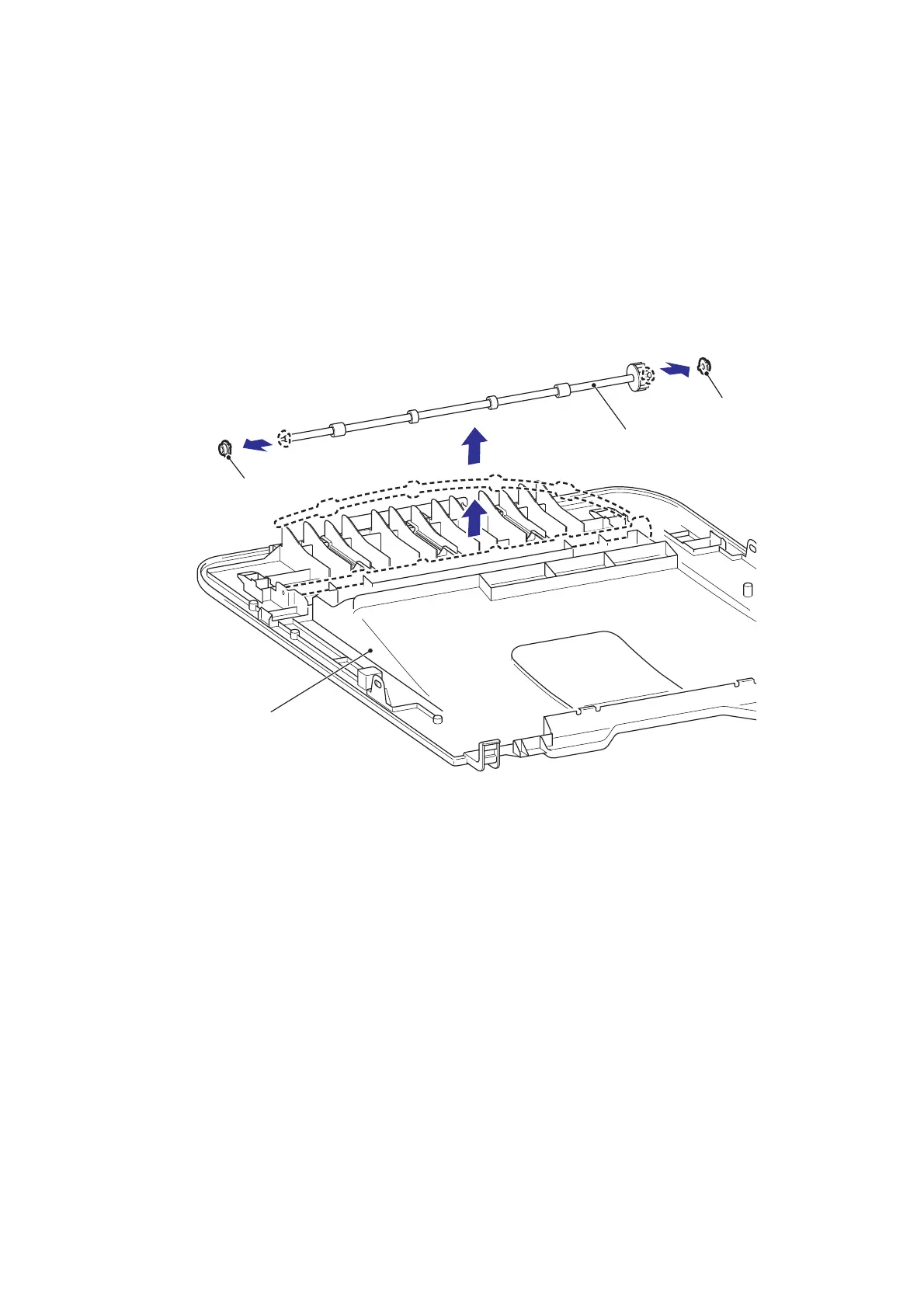

Fig. 3-30
Eject roller ASSY 2
Bush L
Bush R
Top cover ASSY
2a
1
2b
2b
1
