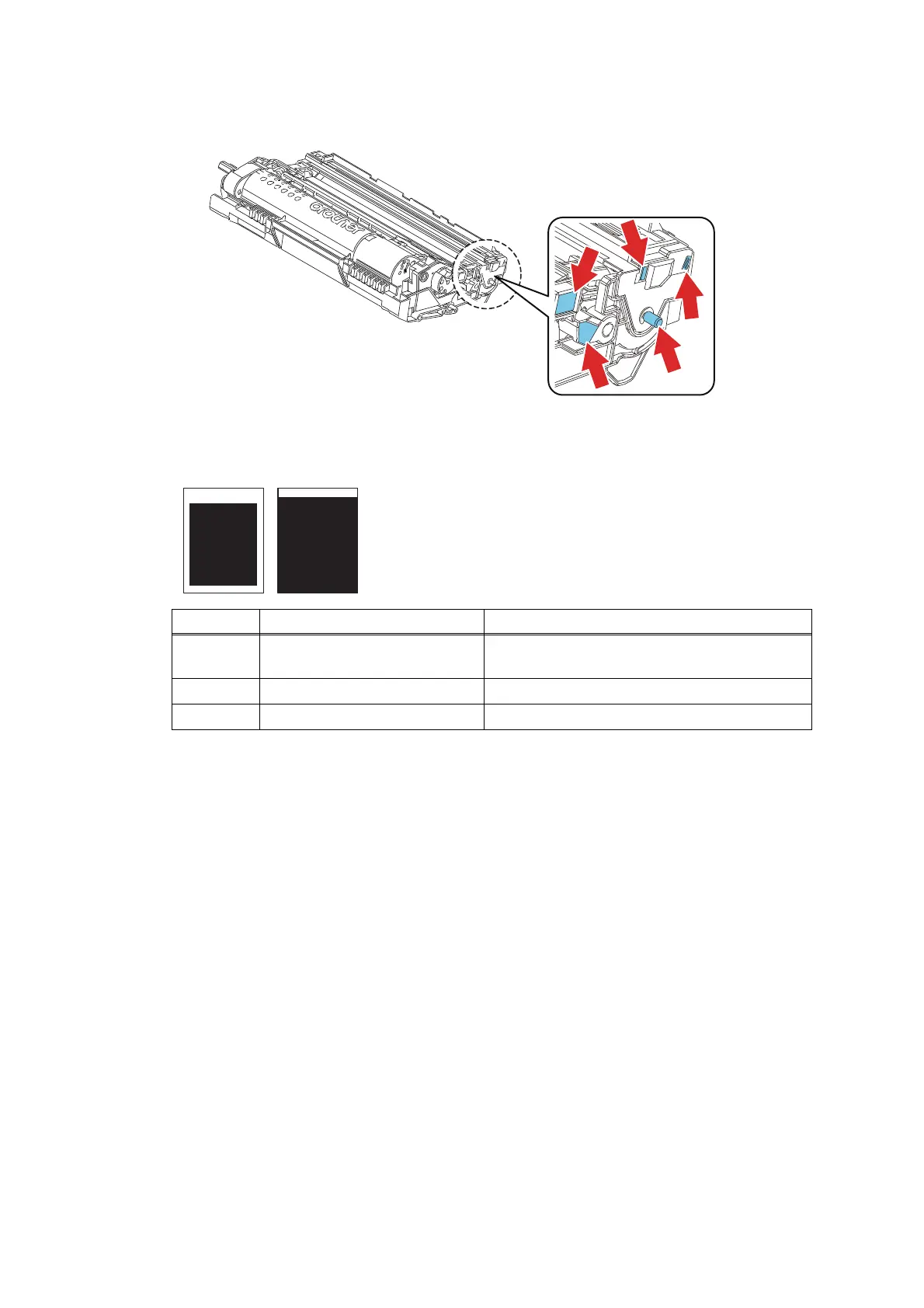

 Electrodes location of the process unit

Fig. 2-17

 Faulty registration

• Check whether appropriate paper type is selected on the

driver.

• Install the latest main firmware.

Step Cause Remedy

Registration rear actuator

coming off

Reattach the registration rear actuator.

2 Laser unit failure Replace the laser unit.

3 Main PCB failure Replace the main PCB ASSY.

Default Chapter4
