9.4 Outer chute ASSY

(1) Pull out the right side of the Outer chute ASSY in the direction of the arrow A to remove the

Boss of the Outer chute ASSY, and remove the Outer chute ASSY in the direction of the

arrow B.

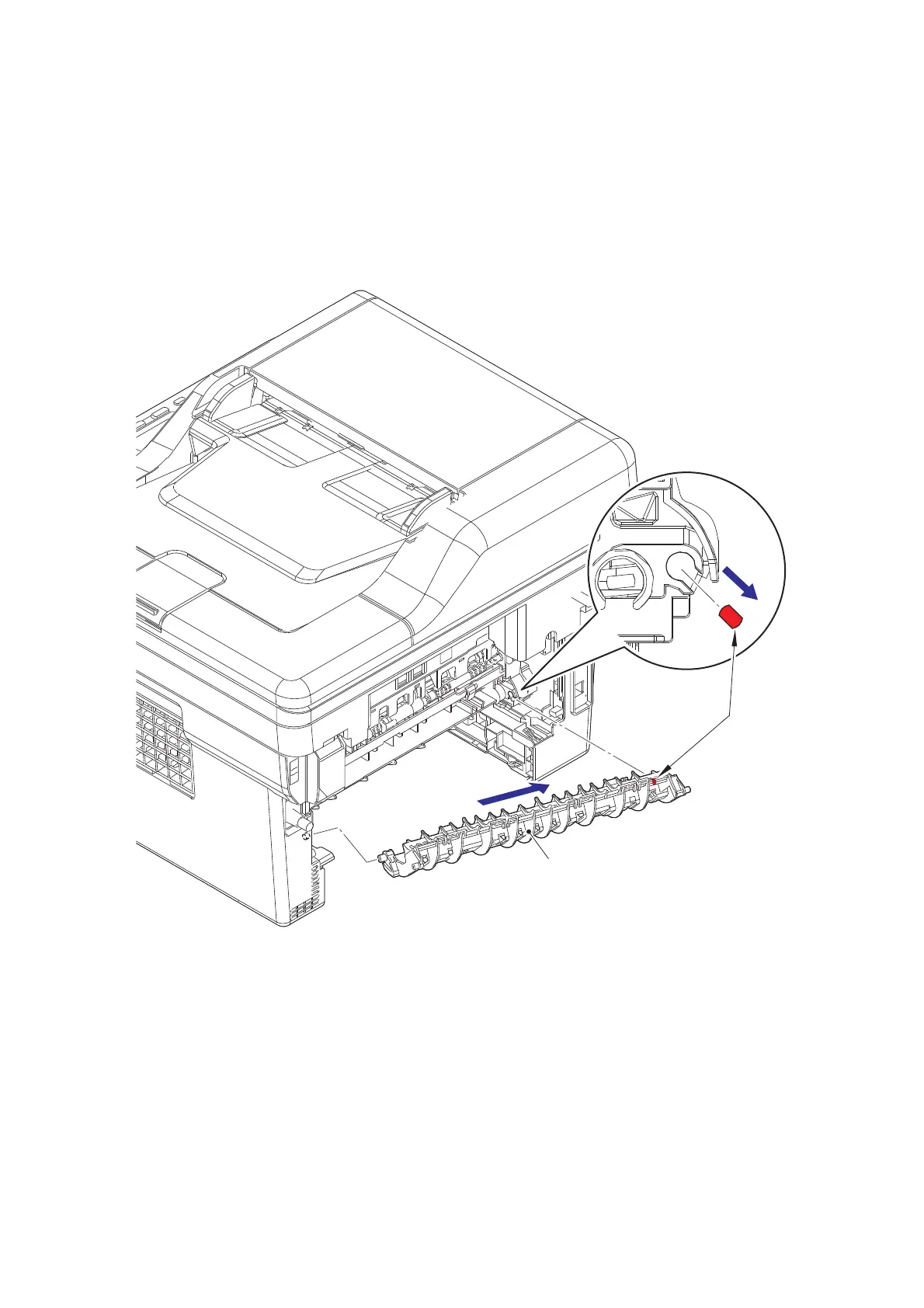

Fig. 3-12

Boss

Outer chute ASSY
