9.17 Joint cover ASSY
(1) Remove the four Taptite bind B M4x12 screws.
(2) Release the Hooks in order of the Hook A to D, and remove the Joint cover ASSY in the
direction of the arrow.

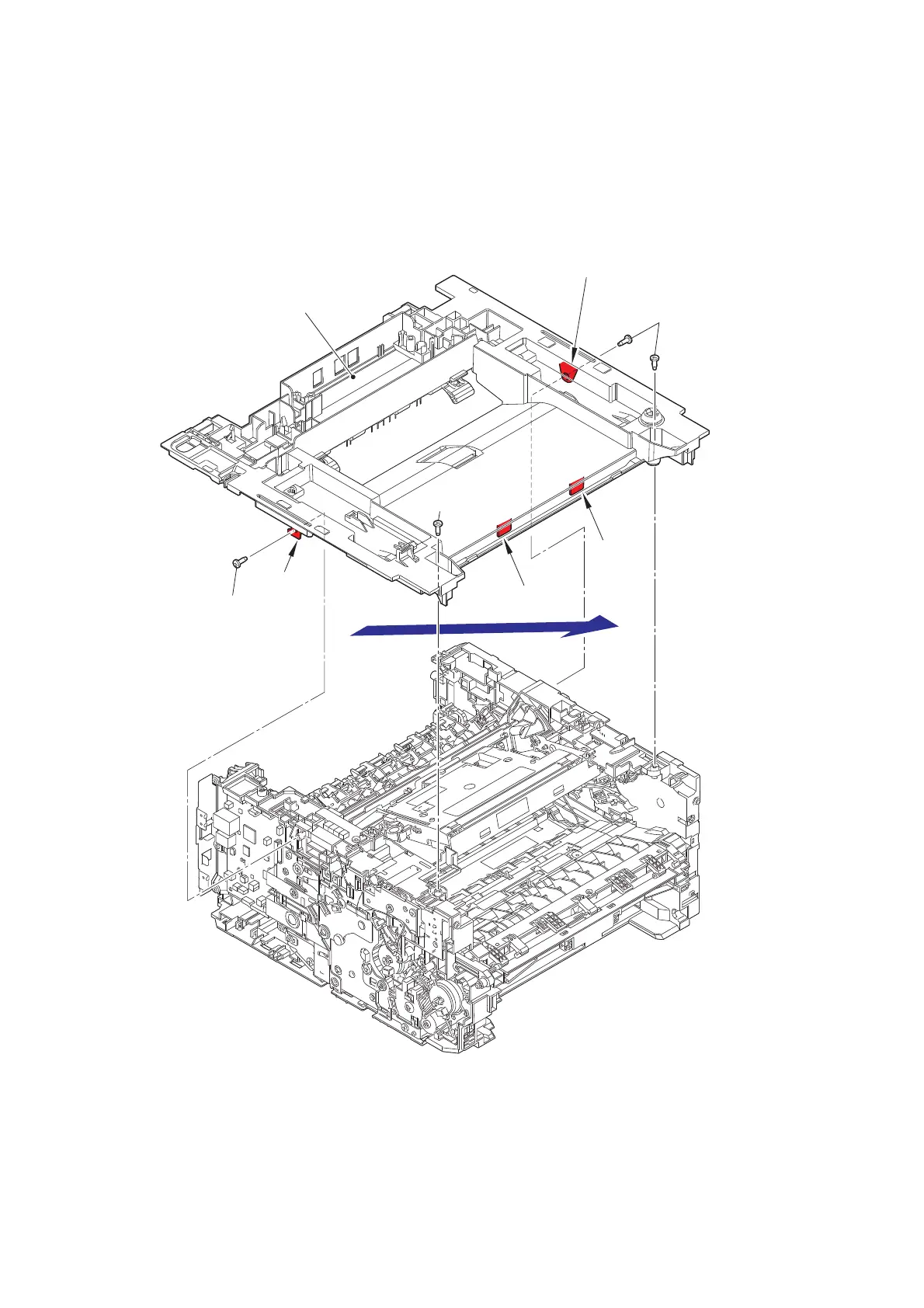

Fig. 3-63
Joint cover ASSY
Hook D
Hook C
Taptite bind B M4x12
Taptite bind B M4x12
Hook A
Hook B
Taptite bind
B M4x12
