Brother MFC-7390

To Next Page

To Previous Page

3-40

Confidential

9.11 ADF unit (For models with ADF)

9.11.1 ADF unit

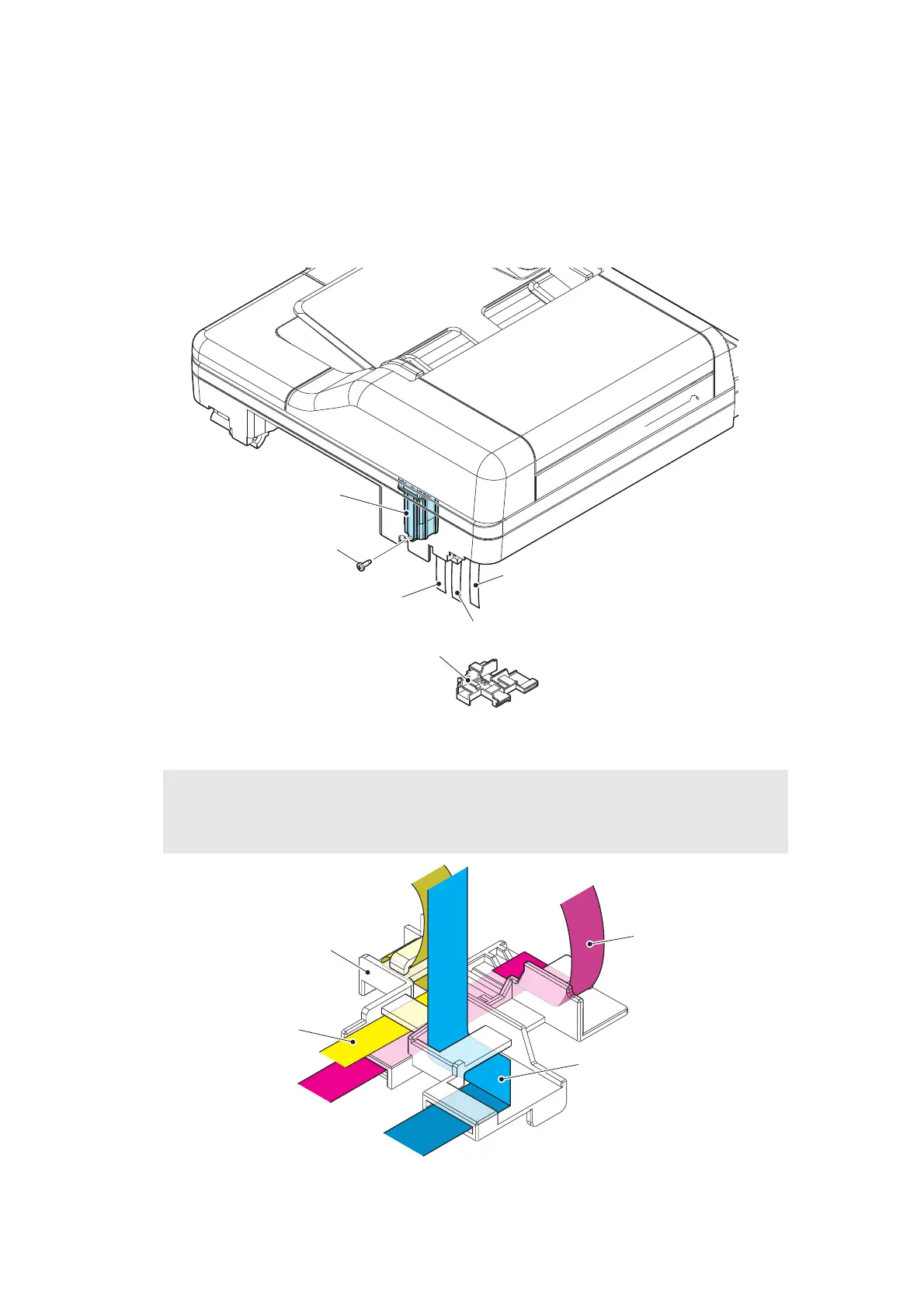

(1) Remove the ADF FFC holder from the Panel flat cable, the First side CIS flat cable, and the

Second side CIS flat cable.

(2) Remove the Taptite bind B M4x12 (black) screw from the Hinge ASSY L.

Fig. 3-28

Fig. 3-29

Assembling Note:

• Attach the Panel flat cable, the First side CIS flat cable, and the Second side CIS flat

cable to the ADF FFC holder as shown in the figure below.

Hinge ASSY L

Taptite bind B M4x12 (black)

ADF FFC holder

First side CIS flat cable

Panel flat cable

Second side CIS flat cable

First side CIS flat cable

Second side CIS flat cable

ADF FFC holder

Panel flat cable
