9.12 Document cover ASSY (For models without ADF)

(1) Release the Hooks of the Hinge L and the Hinge R to remove the Document cover ASSY

by lifting it up.

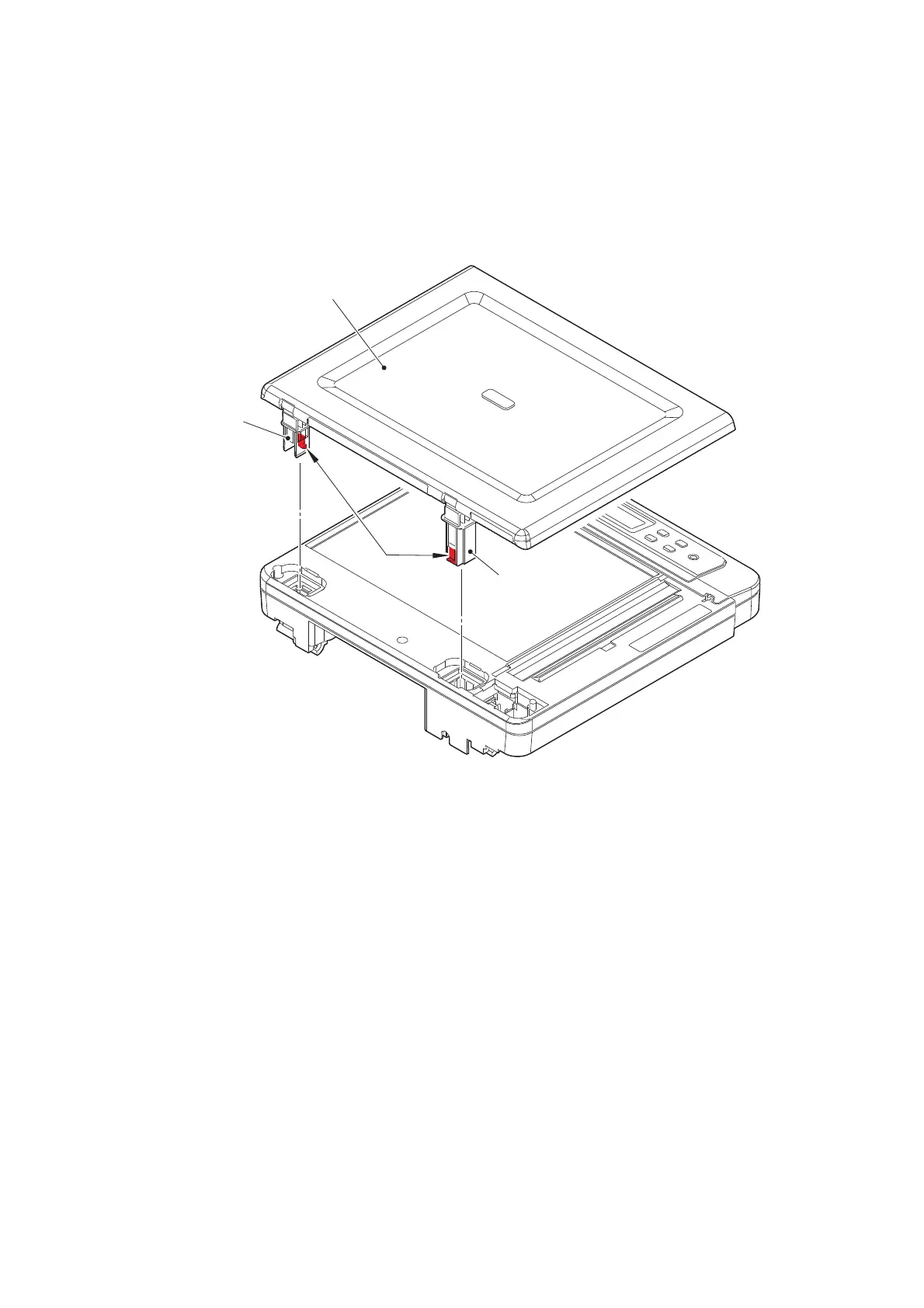

Fig. 3-45

Document cover ASSY

Hooks

Hinge L

Hinge R
