Brother MFC-7390

To Next Page

To Previous Page

3-68

Confidential

9.16 Modem flat cable / Modem PCB ASSY

(1) Remove the two Screw cup M3x8 (black) screws, and release the Modem ground harness

LVPS from the securing fixtures.

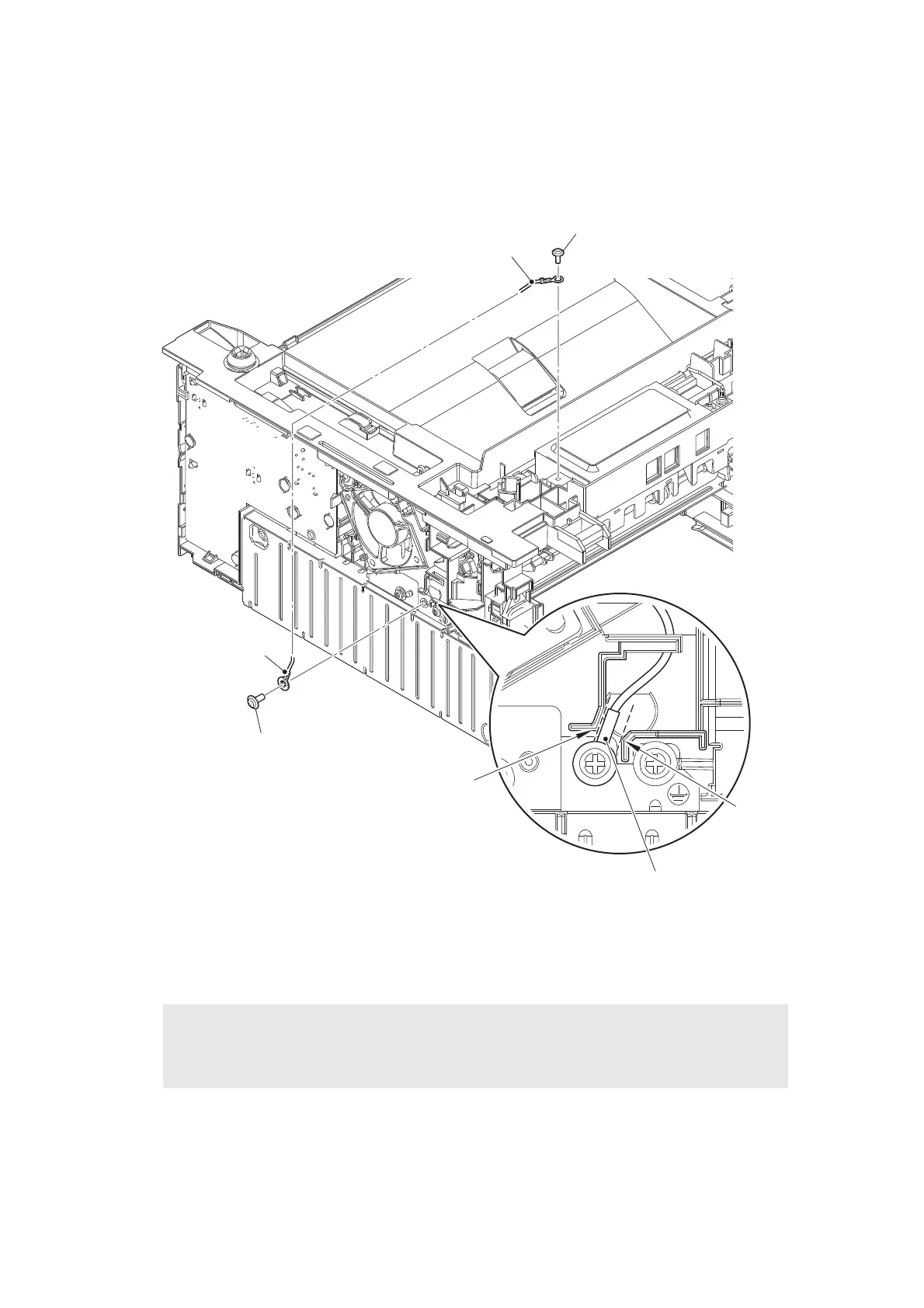

Fig. 3-61

Harness routing: Refer to “7. Modem PCB ASSY (LVPS side)”.

Assembling Note:

• Make sure that the Terminal of Modem ground harness LVPS is located between the

Rib A and the Rib B as shown in the figure above.

Screw cup M3x8 (black)

Modem ground harness LVPS

Rib A

Rib B

Terminal of Modem ground

harness LVPS

Modem ground

harness LVPS

Screw cup M3x8 (black)
