7) Pass the First side CIS flat cable through the Flat core.

8) Peel the release liner of the two pieces of Double-sided tape attached to the Document

scanner bottom cover ASSY, and secure the First side CIS flat cable with the tapes as

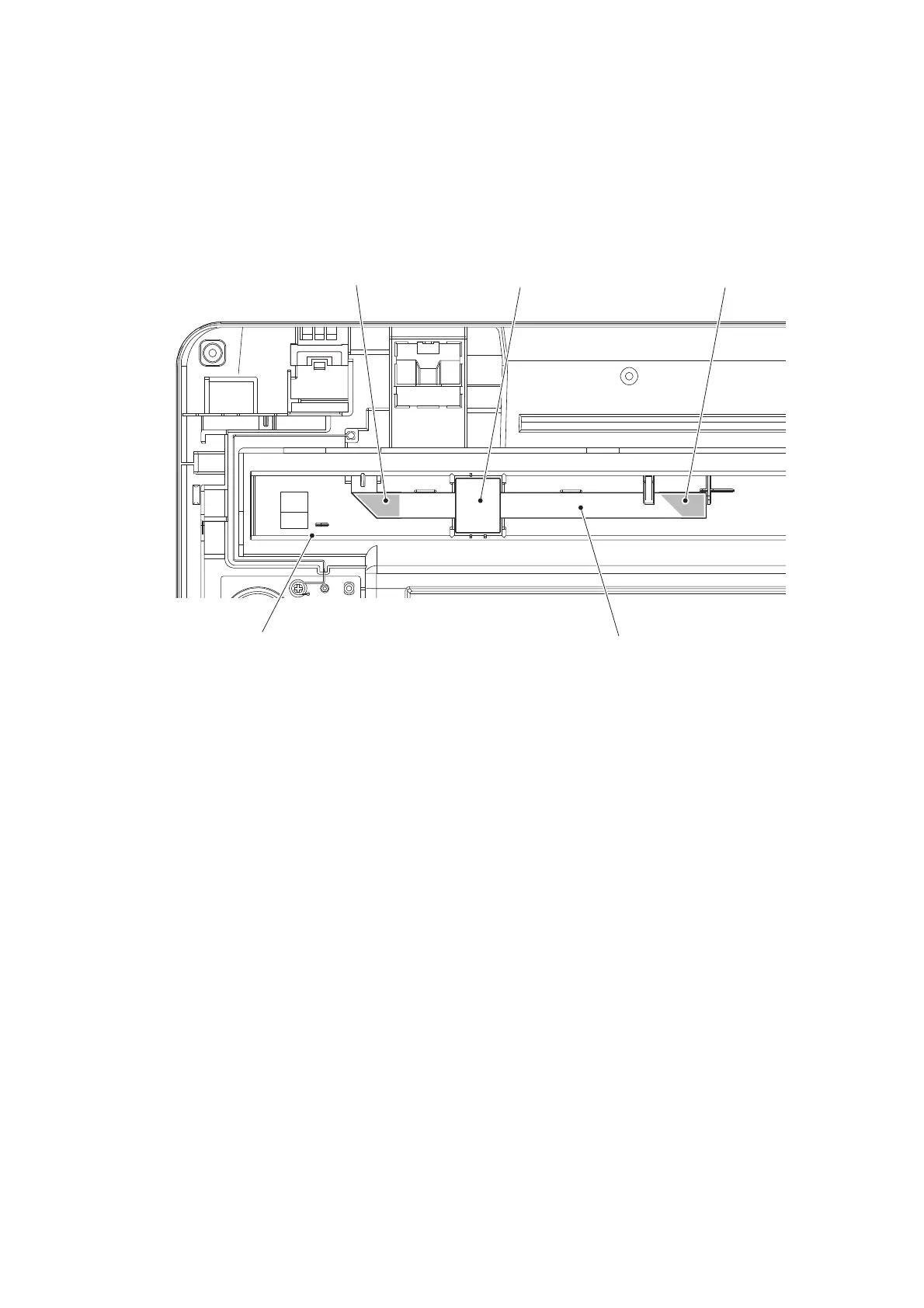

shown in the figure below.

Fig. 3-60

Harness routing: Refer to “6. First side CIS unit, Panel”.

Flat core

First side CIS flat cable

Double-sided tape

Document scanner bottom cover ASSY

Double-sided tape
