3-59

Confidential

9.14.2 Panel PCB ASSY

(1) Release each Hook to remove the Panel PCB ASSY from the Panel unit.

(2) Reverse the Panel PCB ASSY. Release the Lock to disconnect the LCD flat cable from the

Panel PCB ASSY.

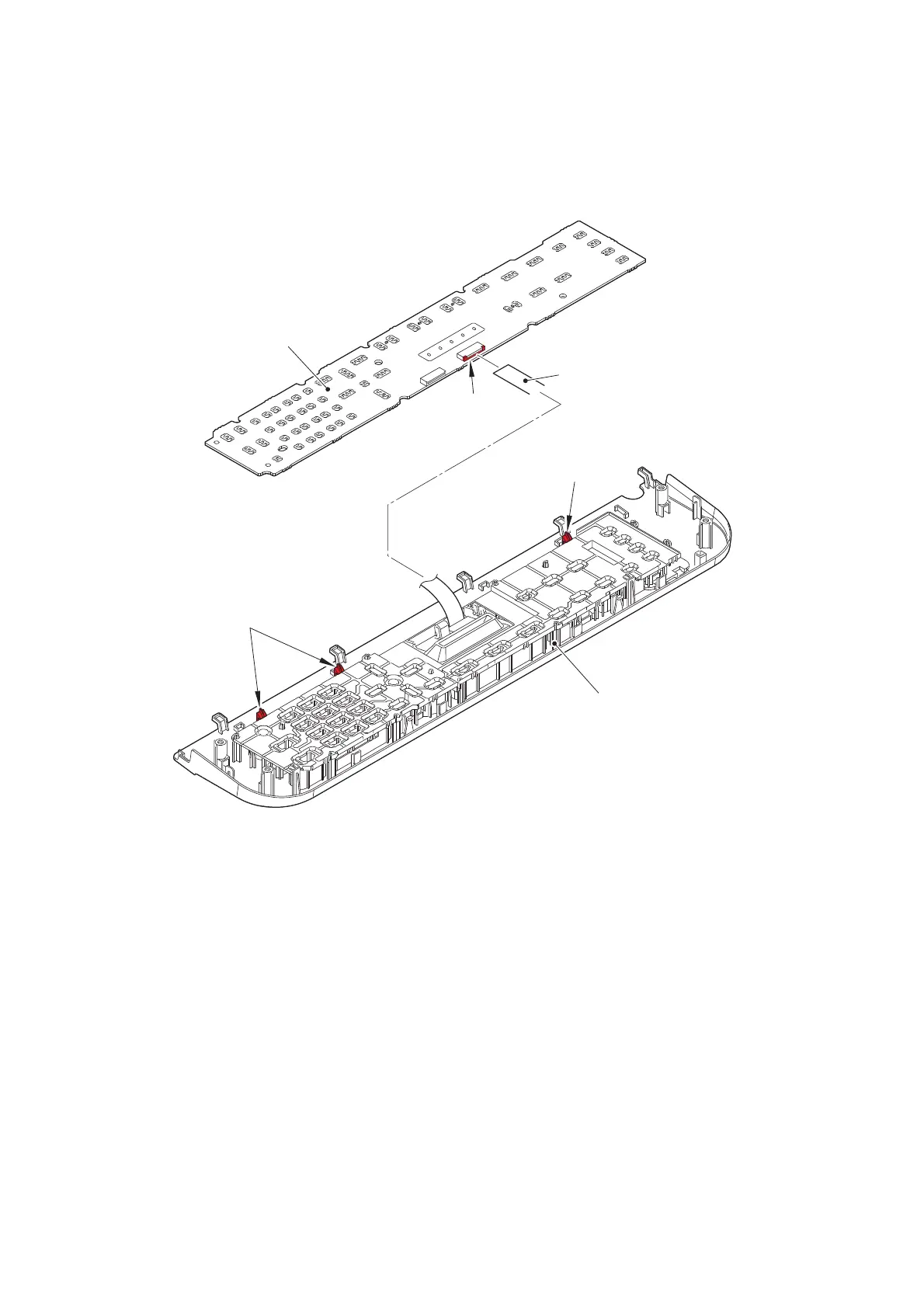

Fig. 3-51

Panel unit

LCD flat cable

Hooks

Hook

Panel PCB ASSY

Lock
