9.6 Side cover R
(1) Remove the Taptite bind B M4x12 screw.
(2) Release the Hooks A, B, and the Hook C on the Side cover R in order of the arrow A to C,
and remove the Side cover R.

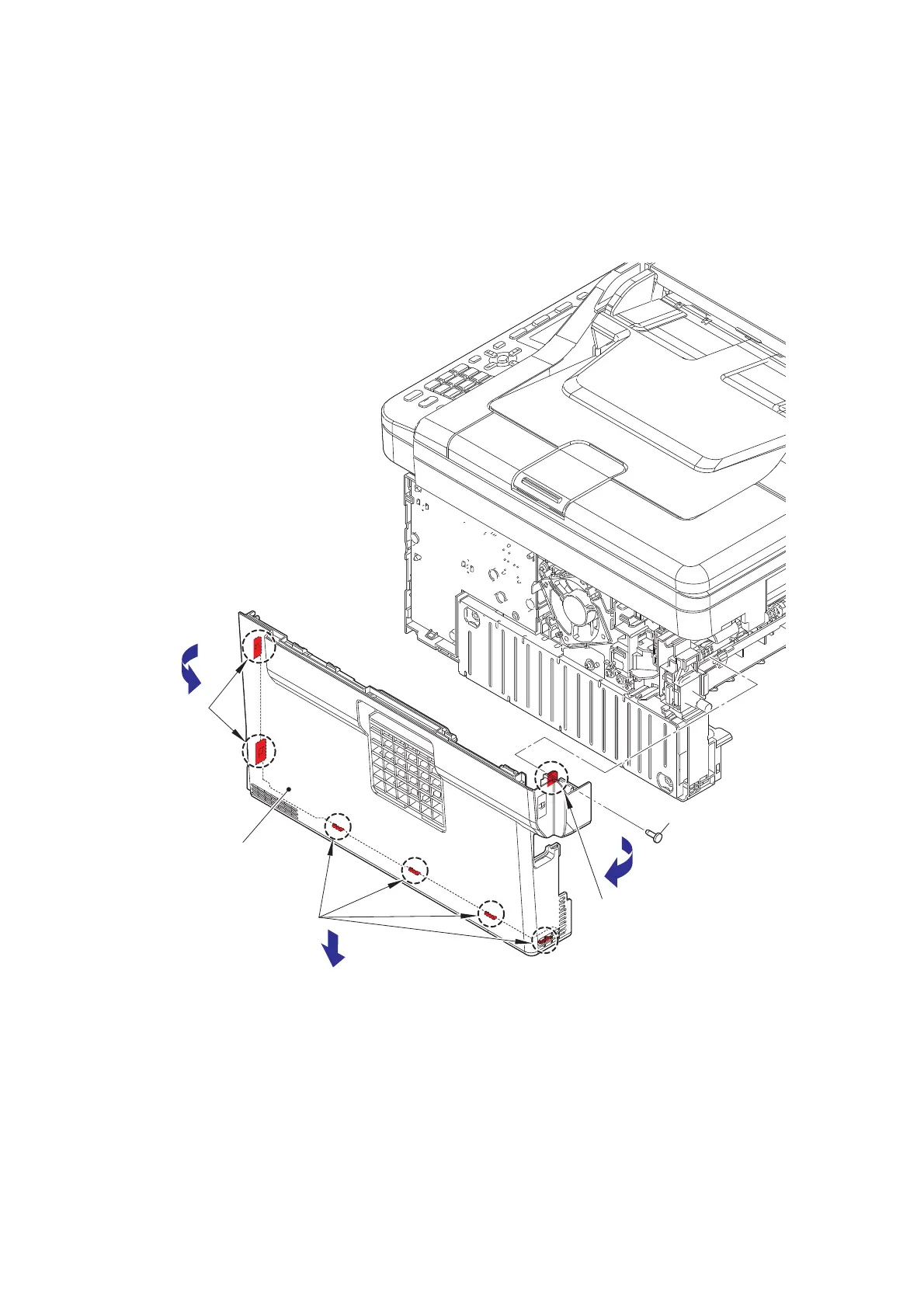

Fig. 3-18
Hook C
Hooks B
Side cover R
Hooks A
C
B
A
Taptite bind B M4x12
