Brother MFC-7390

3-54
Confidential
(2) Remove the three Taptite cup B M3x10 screws to remove the Hinge arm L and the Hinge L
from the Document cover ASSY.
(3) Remove the three Taptite cup B M3x10 screws to remove the Hinge arm R and the Hinge R
from the Document cover ASSY.

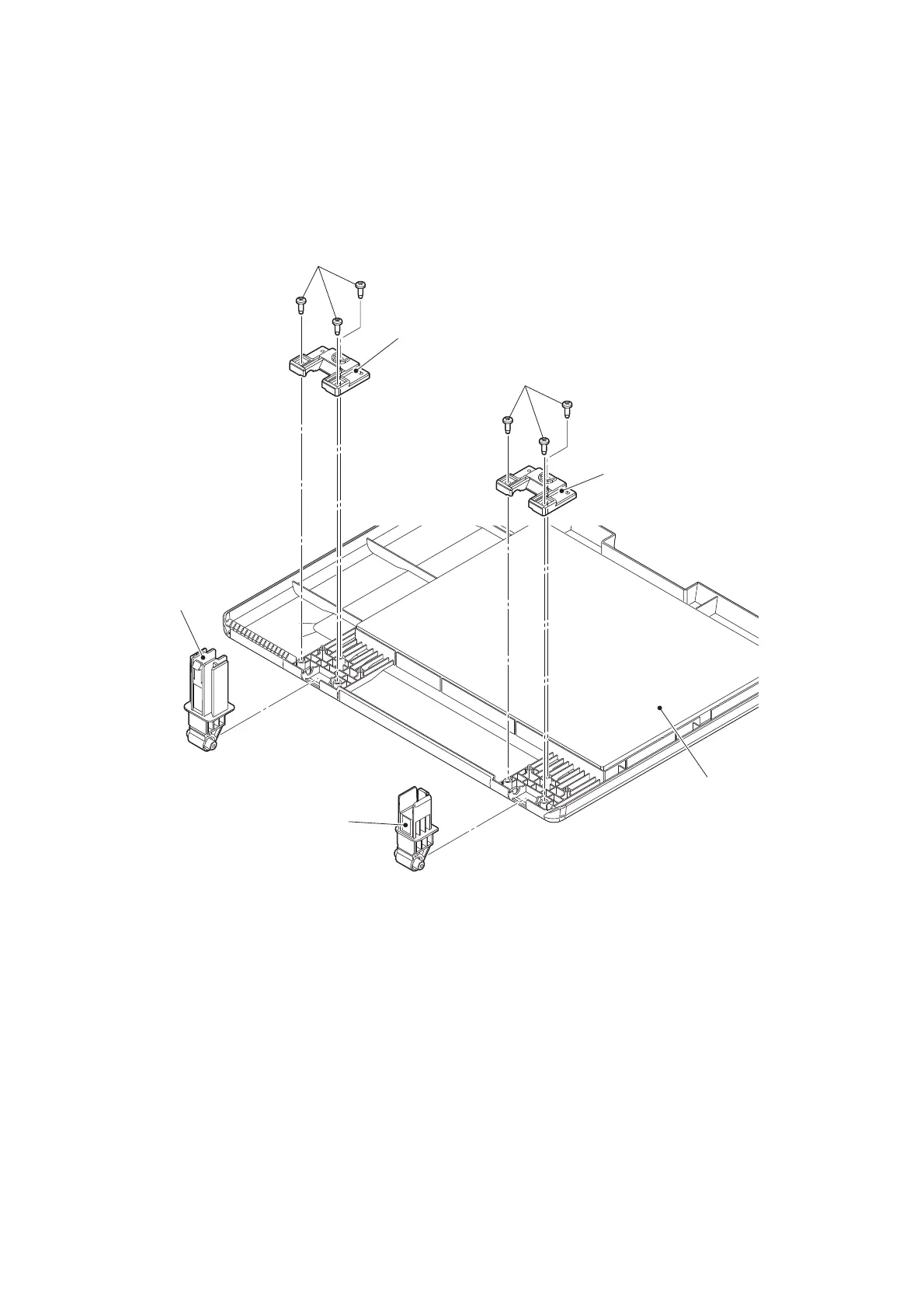

Fig. 3-46
Taptite cup B M3x10
Taptite cup B M3x10
Hinge arm R
Hinge arm L
Document cover ASSY
Hinge L
Hinge R
