Brother MFC-7390

3-18
Confidential

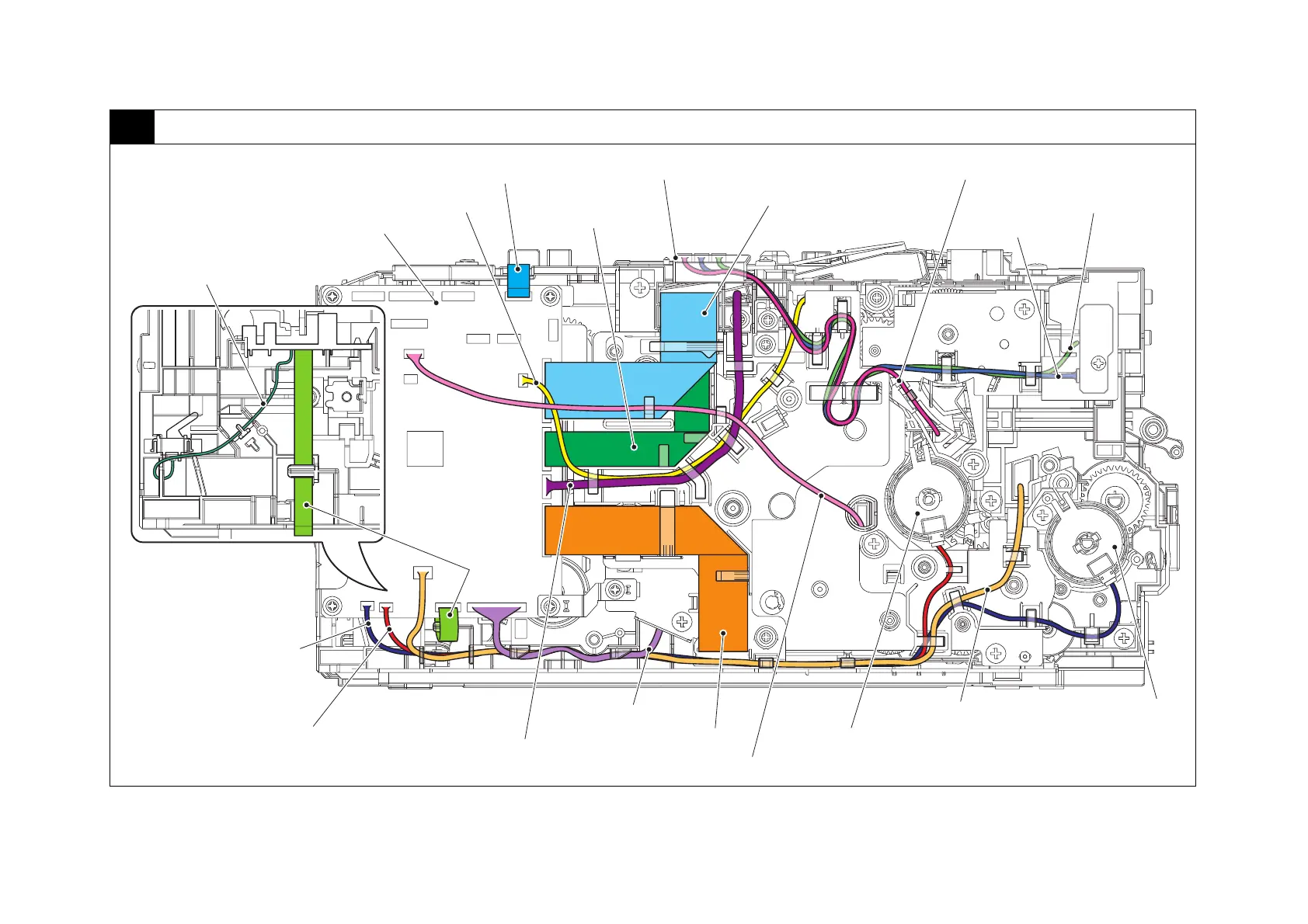

10 Frame L unit (Manual feed models)
Harness colors are subject to change for some reason.
Toner box solenoid
harness (WH) *
1
T1 clutch
Toner sensor harness (RD) *
1
HVPS flat cable
Laser unit flat cable
Front cover sensor harness (YW)
Back cover/duplex tray
sensor harness (RD, BL)
T1 clutch harness (BL)
Registration clutch harness (WH)
Polygon motor harness (WH)
LVPS harness (WH, BK)
Paper feed motor flat cable
Registration clutch
Paper feed sensor harness
(RD, BL, WH)
Toner box new
harness (BL) *
1
Toner box relay PCB ASSY *
1
Eject sensor
flat cable
Main PCB ASSY
Cartridge sensor harness (WH) *
2
*
1
For models with Toner box
*
2
For models without Toner box
Toner box relay flat cable *
1
