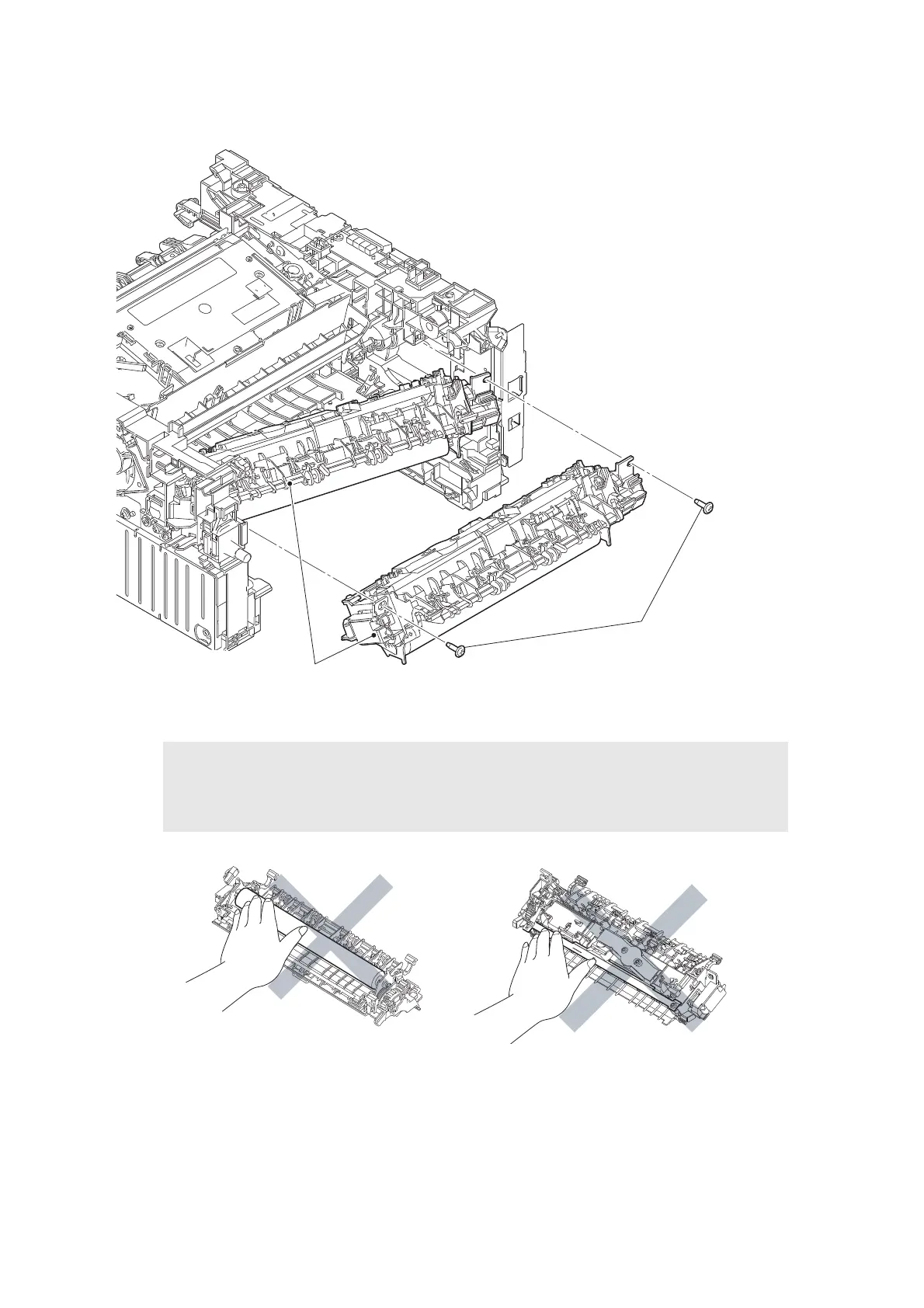

(4) Remove the two Taptite pan B M4x14 screws, and remove the Fuser unit.
Fig. 3-66
Fig. 3-67
Note:
• DO NOT apply a physical impact or vibration to the Fuser unit.
• DO NOT touch the roller and the electrodes to prevent breakage of the Fuser unit.
Taptite pan B M4x14
Fuser unit
<Back side>
