Brother MFC-7390

3-77
Confidential

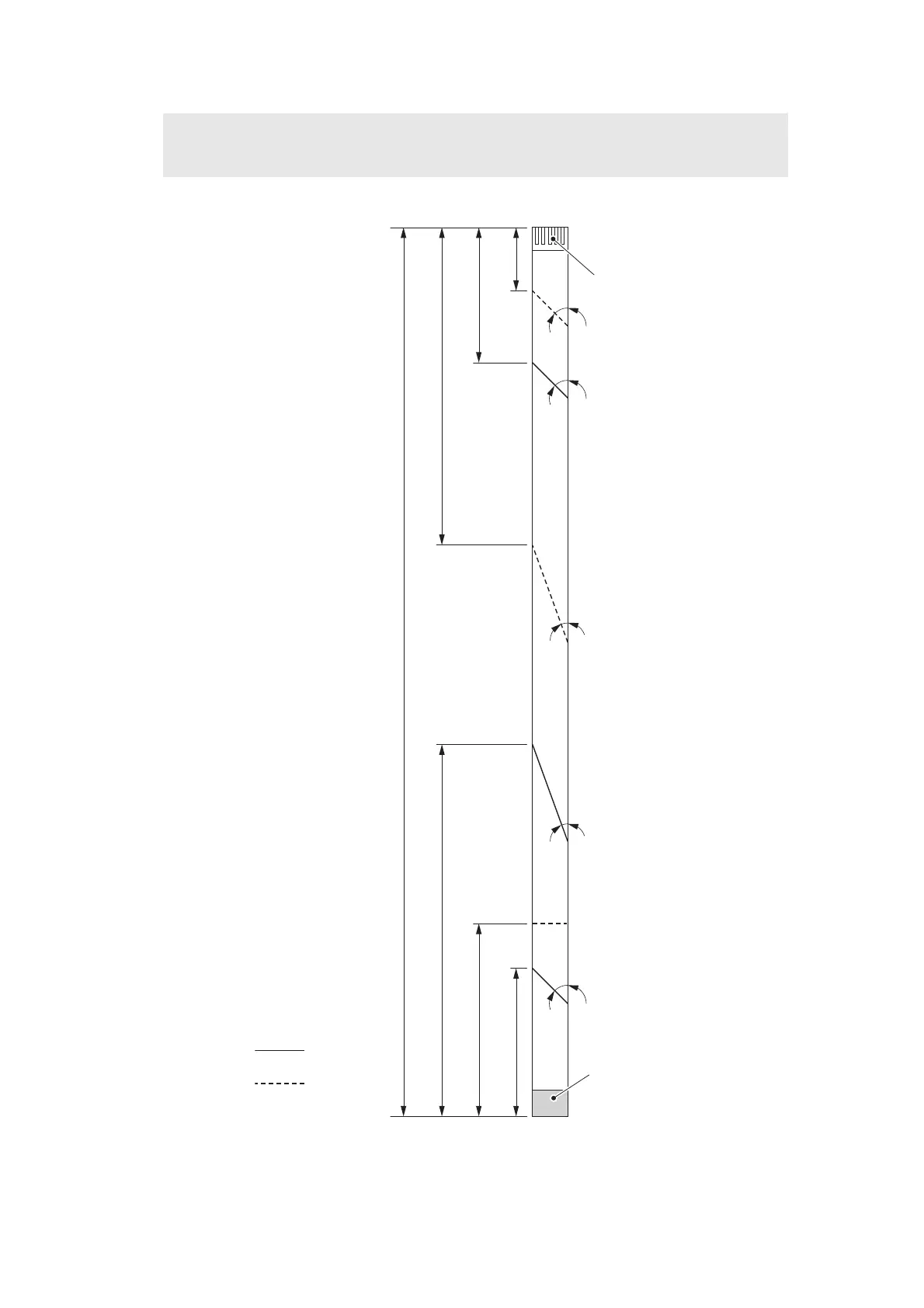

Fig. 3-72
Assembling Note:
• Fold the HVPS flat cable at the positions described below.
Electrode
20°
Mountain fold
Valley fold
Reinforcing tape
45°
20°
45°
<Main PCB side>
<High-voltage power supply PCB side>
45°
38±1
81±1
191±1
536±10
224±1
89±1
116±1
