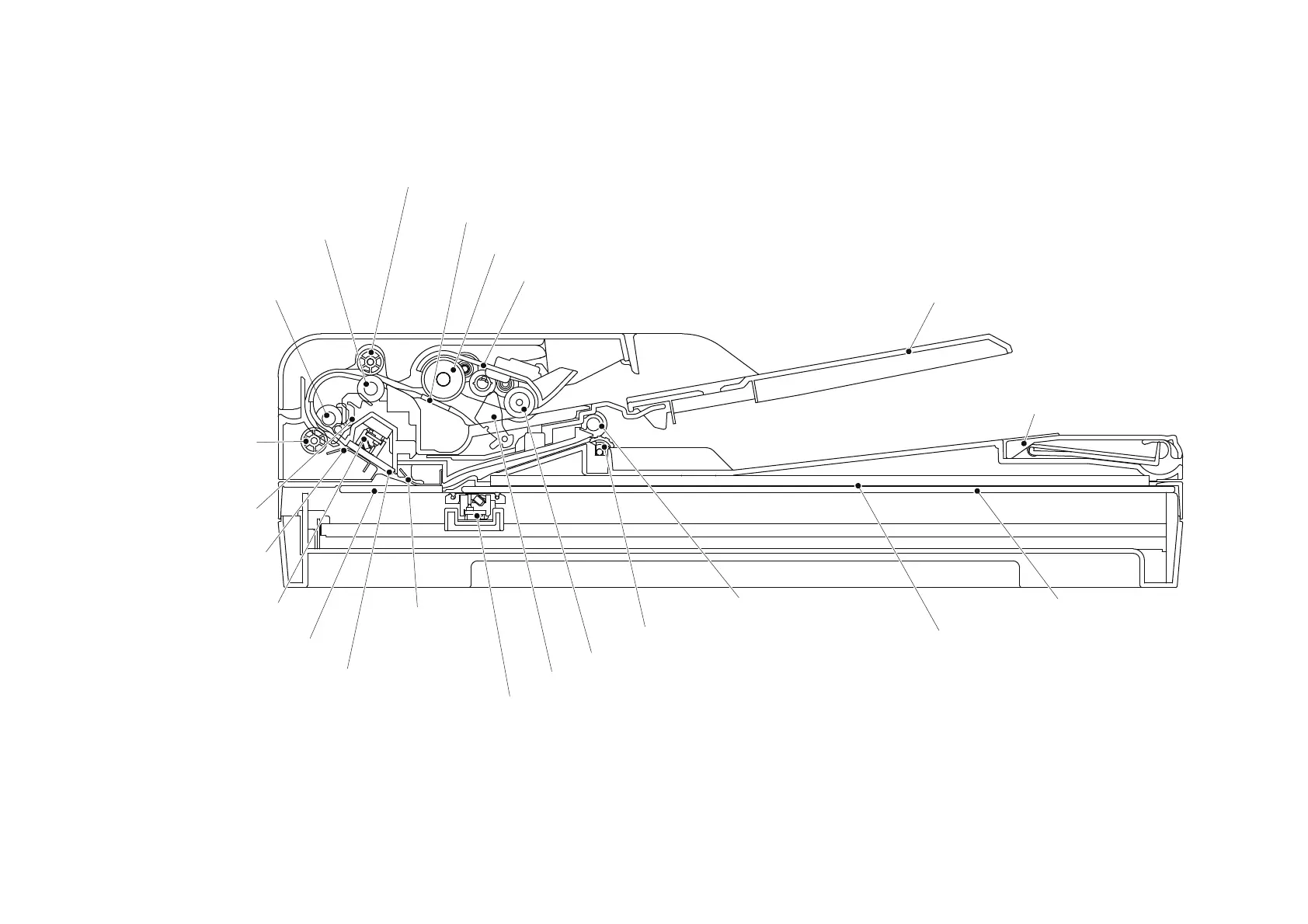

Fig. 2-4
Document feed roller 1
<Left side>
<Right side>
Document pinch roller 1
Document separation pad
Document separate roller
Document separate roller ASSY
Document tray
Document stopper
Scanner glass
Document sponge
Document eject roller
Document eject pinch roller
Document pick-up roller
Document detection actuator
First side CIS unit
First side
document hold
Document feed roller 2
Document pinch roller 2
Document scanning
position actuator
Second side document hold
Second side CIS unit
Scanner glass strip (First side CIS glass)
Scanner glass strip (Second side CIS glass)
