Brother MFC-8950DW Service Manual

3-14
Confidential

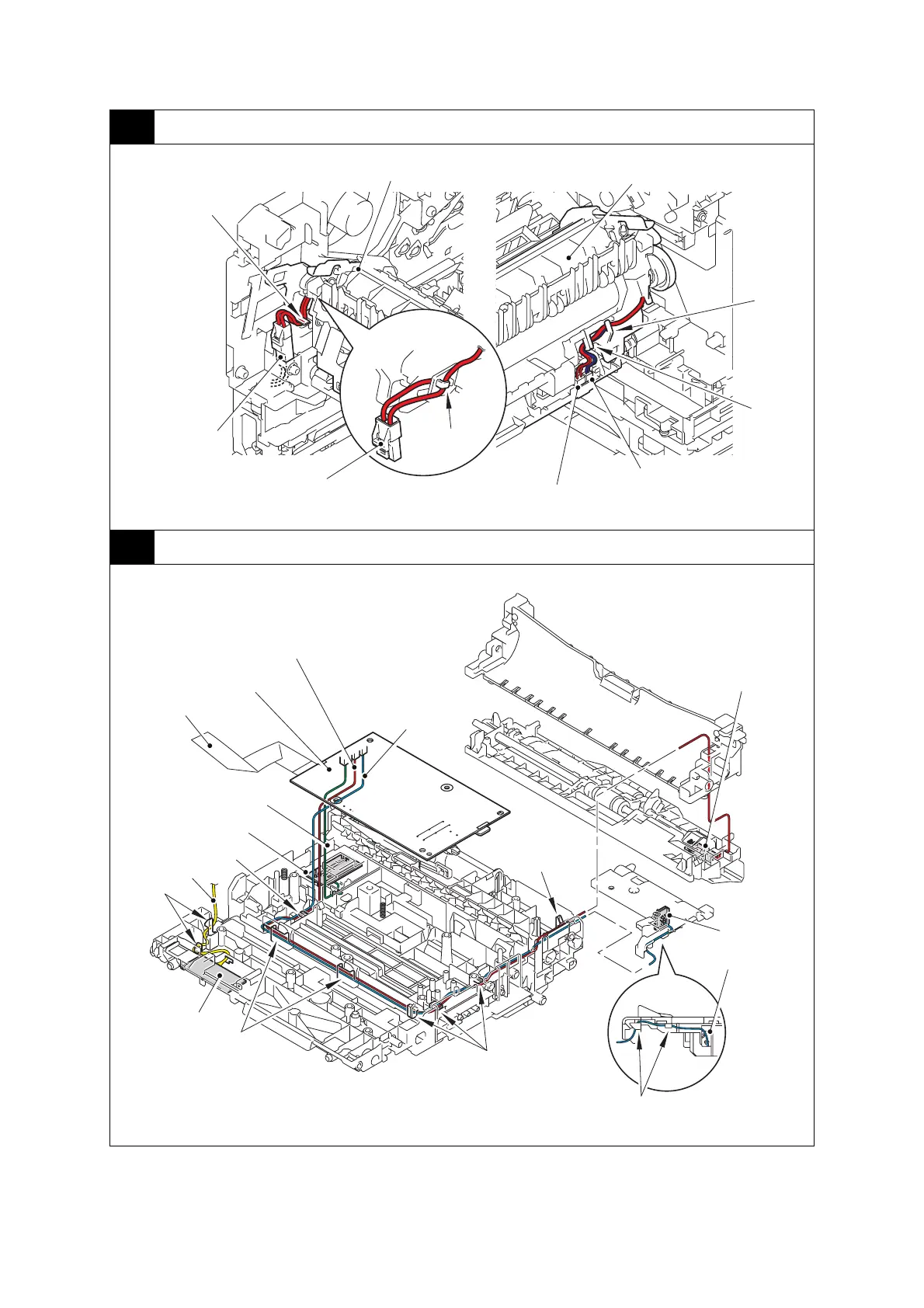

3 Fuser unit
4 High-voltage power supply PCB ASSY
Harness colors may be changed for any reason.
Fuser unit
Hook
Fuser unit
Heater harness (WH)
Center thermistor harness
(GR x 2)
Hook
Hook
Side thermistor harness
(WH x 2)
Low-voltage-
heater harness
Hook
High-voltage power
supply PCB ASSY
T1 paper feed sensor harness
(RD, BL, WH)
MP paper empty sensor
harness (RD, BL, WH)
Main HVPS flat cable
Registration front/rear
sensor harness (RD, BL, WH)
Hook
Hooks
Hooks
Hooks
T1 paper feed
sensor PCB ASSY
Registration front/rear
sensor PCB ASSY
Hook
MP paper empty
sensor PCB ASSY
Hooks
Eject sensor
PCB ASSY
Eject sensor
harness (RD, BL, WH)

Brother MFC-8950DW Specifications

General

Type	all in one
Color	black
Tray Capacity	500
Automatic Document Feeder Capacity	50 sheets
Paper Size	letter, legal, executive, a4, a5, a6, b5, b6, custom sizes from 3" x 5" to 8.5" x 14"
Paper Handling	up to 500 sheets
Mono Print Speed	42 pages per minute
Print Resolution Mono	up to 1200 x 1200
Maximum Number of Pages Per Month	up to 100, 000
Scanner Type	flatbed
Scan Resolution	up to 19200 x 19200
Fax Function	yes
Cartridges	tn-720, tn-750, tn-780, dr-720
Number Of Cartridges	2
Internal Memory	yes
Network	wired, wireless
Connectivity	usb 2.0
OS Compatibility	windows or mac os
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	16.3 inches
Net Weight	39 pounds
