Brother MFC-8950DW Service Manual

3-28
Confidential

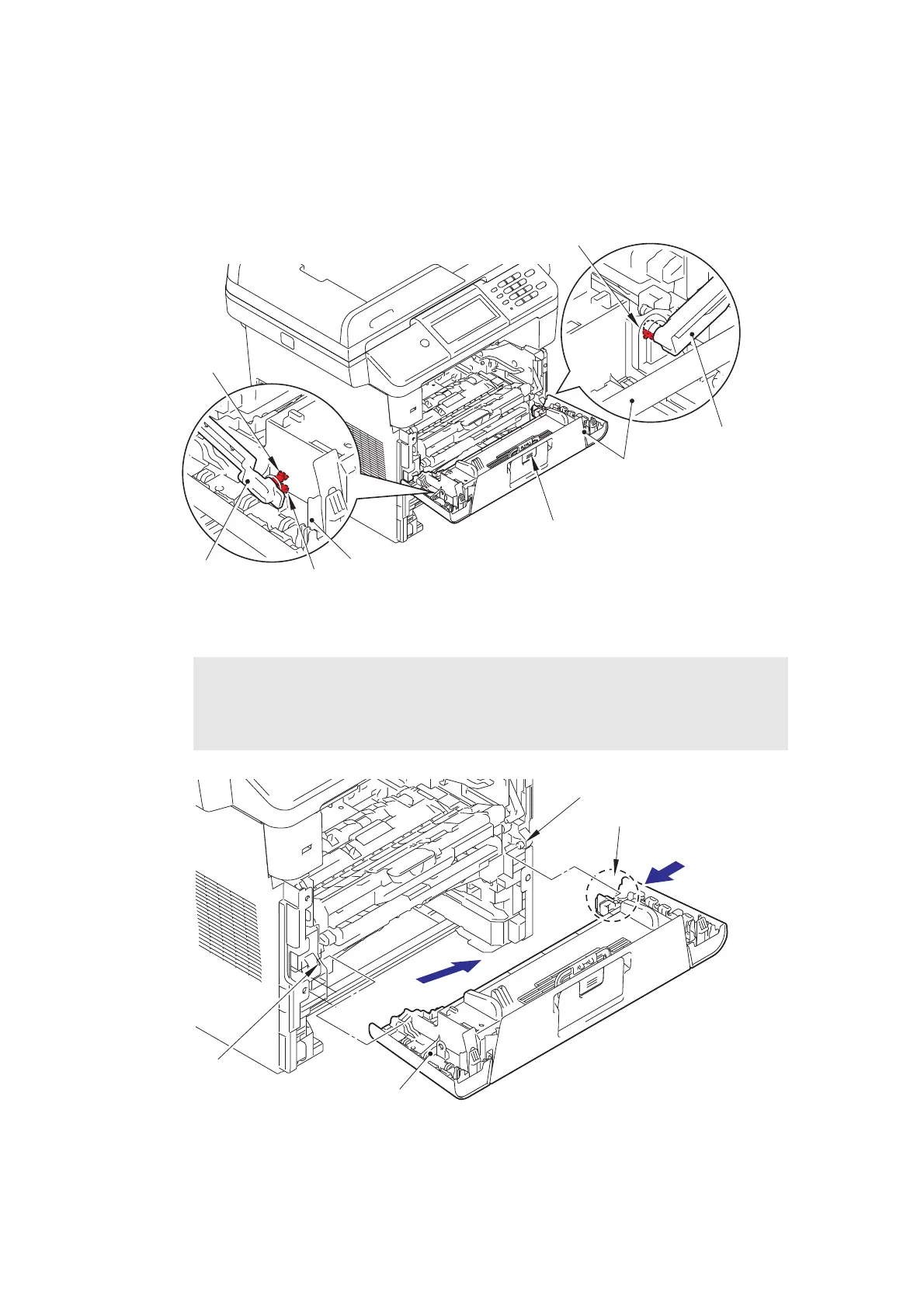

9.6 Front cover ASSY
(1) Push the front cover release button, and open the front cover ASSY.
(2) Release the two hooks, and remove the develop joint link from the front cover ASSY.
(3) Release the hook, and remove the nip release link from the front cover ASSY.
Fig. 3-22
(4) Remove the two bosses, and remove the front cover ASSY from the machine.
Fig. 3-23
(5) Remove the two bosses, and remove the paper stopper from the front cover ASSY.
Note:
• When removing the front cover ASSY, push "A" on the front cover ASSY in the
direction of arrow 4a, and slide the front cover ASSY in the direction of arrow 4b to
remove it.
Nip release link
Develop joint link
Front cover ASSY
Front cover
release button
Hook
Front cover ASSY
Hook
Hook
“A”
Boss
Boss
Front cover ASSY
4a
4b

Brother MFC-8950DW Specifications

General

Type	all in one
Color	black
Tray Capacity	500
Automatic Document Feeder Capacity	50 sheets
Paper Size	letter, legal, executive, a4, a5, a6, b5, b6, custom sizes from 3" x 5" to 8.5" x 14"
Paper Handling	up to 500 sheets
Mono Print Speed	42 pages per minute
Print Resolution Mono	up to 1200 x 1200
Maximum Number of Pages Per Month	up to 100, 000
Scanner Type	flatbed
Scan Resolution	up to 19200 x 19200
Fax Function	yes
Cartridges	tn-720, tn-750, tn-780, dr-720
Number Of Cartridges	2
Internal Memory	yes
Network	wired, wireless
Connectivity	usb 2.0
OS Compatibility	windows or mac os
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	16.3 inches
Net Weight	39 pounds
