Brother MFC-8950DW Service Manual

3-91
Confidential
9.28 Develop joint gear 37 / Develop joint
(1) Tilt the develop joint to remove it from the drive sub ASSY, and then remove the develop
joint spring from the drive sub ASSY.
(2) Pull out the develop joint gear 37 from the drive sub ASSY.

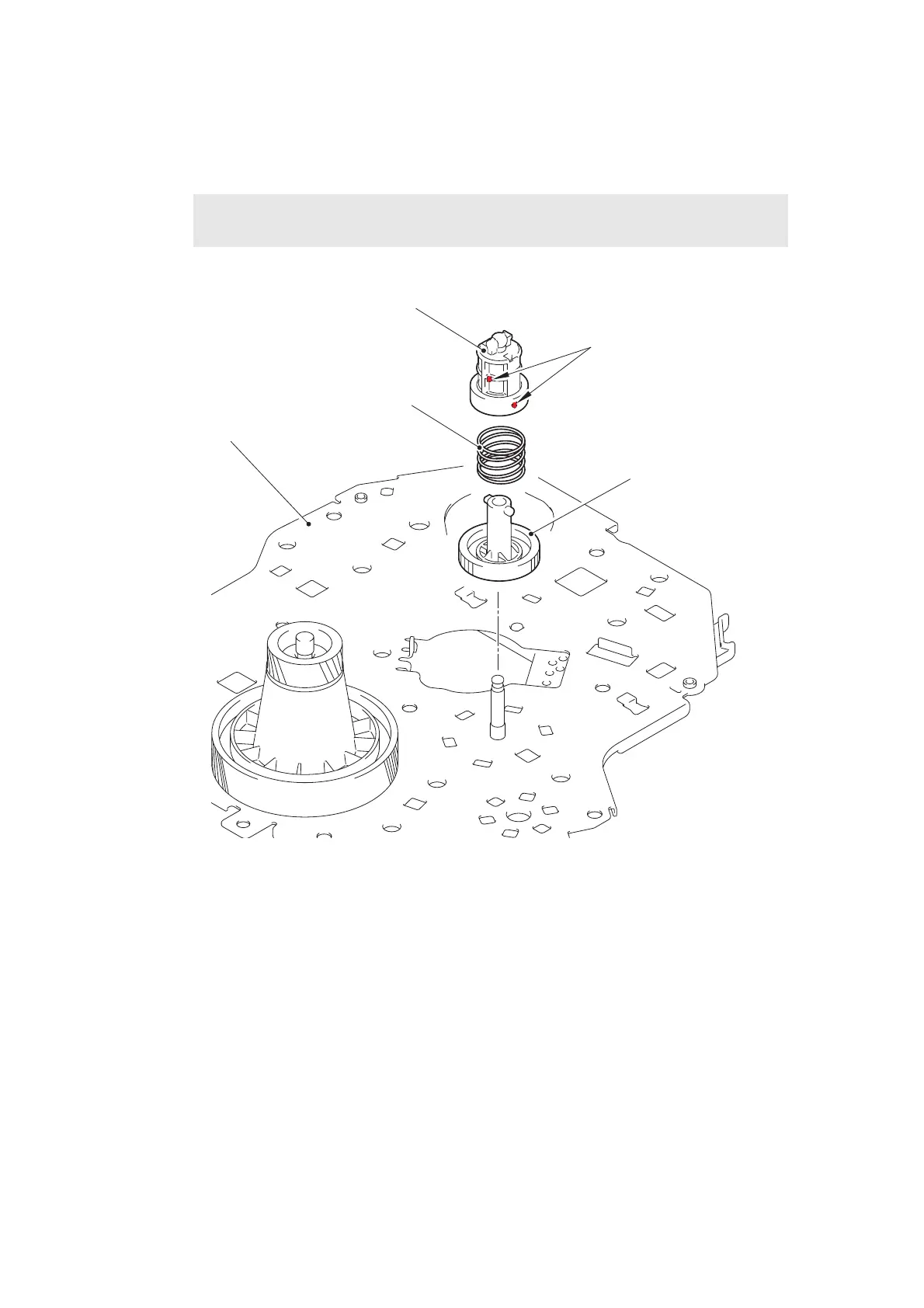

Fig. 3-120
Note:
• When removing the develop joint, be careful not to damage the hooks.
Hooks
Drive sub ASSY
Develop joint gear 37
Develop joint spring
Develop joint

Brother MFC-8950DW Specifications

General

Type	all in one
Color	black
Tray Capacity	500
Automatic Document Feeder Capacity	50 sheets
Paper Size	letter, legal, executive, a4, a5, a6, b5, b6, custom sizes from 3" x 5" to 8.5" x 14"
Paper Handling	up to 500 sheets
Mono Print Speed	42 pages per minute
Print Resolution Mono	up to 1200 x 1200
Maximum Number of Pages Per Month	up to 100, 000
Scanner Type	flatbed
Scan Resolution	up to 19200 x 19200
Fax Function	yes
Cartridges	tn-720, tn-750, tn-780, dr-720
Number Of Cartridges	2
Internal Memory	yes
Network	wired, wireless
Connectivity	usb 2.0
OS Compatibility	windows or mac os
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	16.3 inches
Net Weight	39 pounds
