Brother MFC-8950DW Service Manual

3-101
Confidential
9.37 Back cover sensor
(1) Release the back cover sensor harness from the securing fixtures.
(2) Release the two hooks, and remove the back cover sensor from the main frame L ASSY.

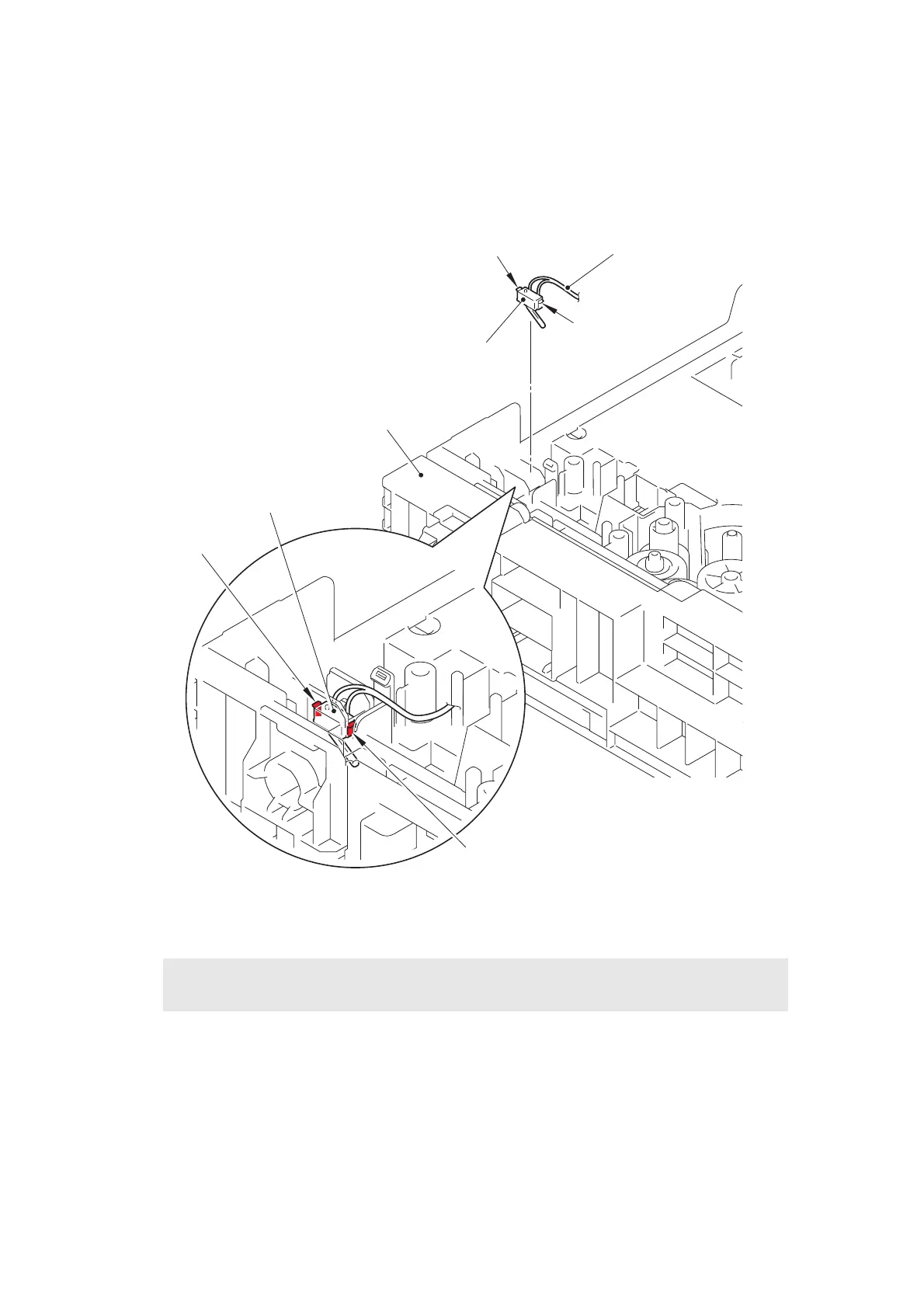

Fig. 3-130
Harness routing: Refer to “1.Main PCB ASSY”.
Assembling Note:
• When attaching the back cover sensor, insert it at an angle from the right side.
Hook
Hook
Hook
Back cover sensor
Back cover sensor
Hook
Back cover sensor harness
Main frame L ASSY

Brother MFC-8950DW Specifications

General

Type	all in one
Color	black
Tray Capacity	500
Automatic Document Feeder Capacity	50 sheets
Paper Size	letter, legal, executive, a4, a5, a6, b5, b6, custom sizes from 3" x 5" to 8.5" x 14"
Paper Handling	up to 500 sheets
Mono Print Speed	42 pages per minute
Print Resolution Mono	up to 1200 x 1200
Maximum Number of Pages Per Month	up to 100, 000
Scanner Type	flatbed
Scan Resolution	up to 19200 x 19200
Fax Function	yes
Cartridges	tn-720, tn-750, tn-780, dr-720
Number Of Cartridges	2
Internal Memory	yes
Network	wired, wireless
Connectivity	usb 2.0
OS Compatibility	windows or mac os
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	16.3 inches
Net Weight	39 pounds
