Brother MFC-8950DW Service Manual

3-94
Confidential
9.31 MP solenoid
(1) Remove the MP drive gear 18 from the main frame L ASSY.
(2) Release the MP solenoid harness from the securing fixtures.
(3) Remove the taptite bind B M3x10 screw, and remove the MP solenoid and the MP
solenoid lever from the main frame L ASSY.
(4) Remove the MP solenoid lever and the MP solenoid spring from the MP solenoid.

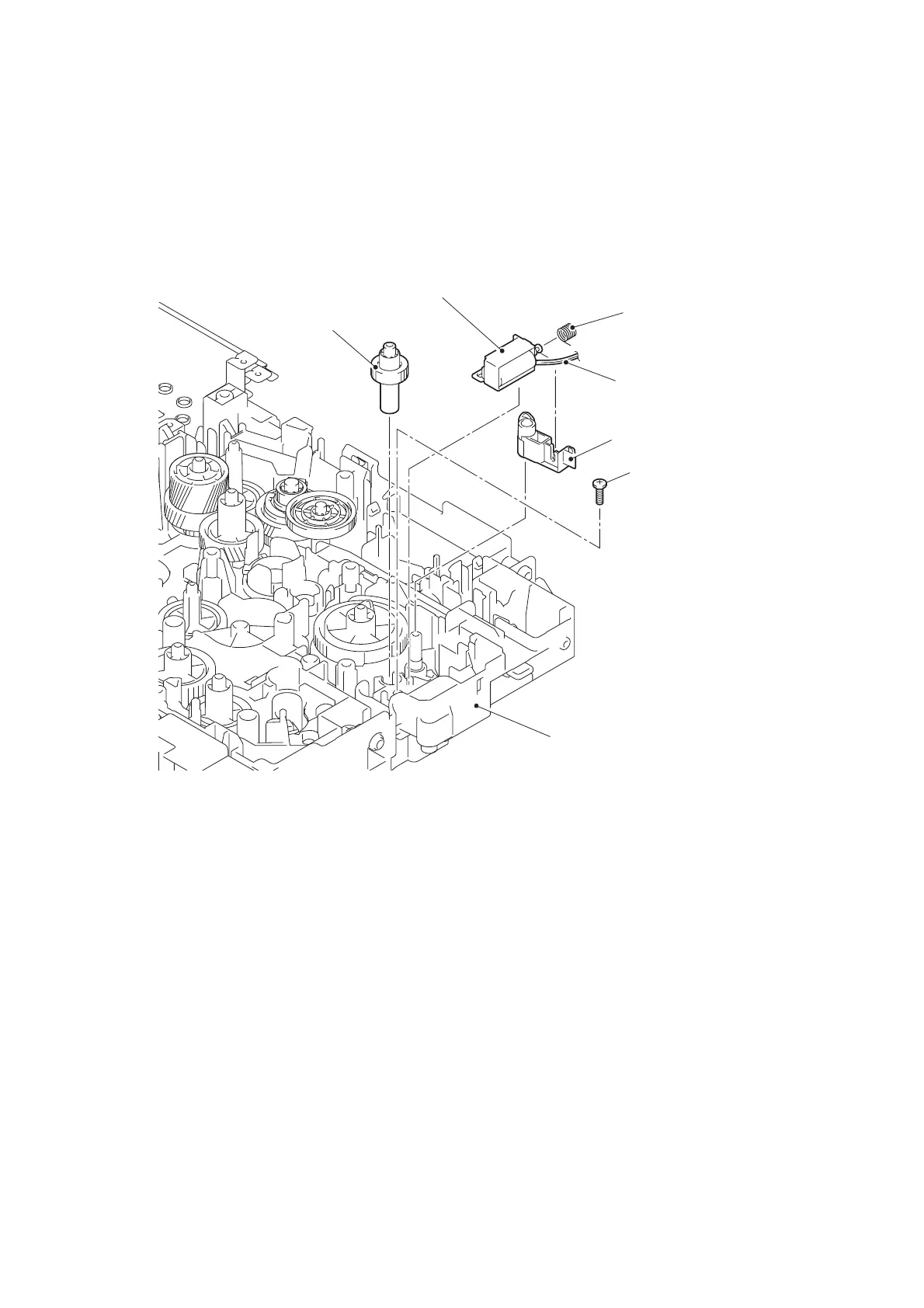

Fig. 3-123
Harness routing: Refer to “2.Relay front PCB ASSY”.
Taptite bind B M3x10
MP solenoid spring
MP solenoid
MP drive gear 18
Main frame L ASSY
MP solenoid harness
MP solenoid lever

Brother MFC-8950DW Specifications

General

Type	all in one
Color	black
Tray Capacity	500
Automatic Document Feeder Capacity	50 sheets
Paper Size	letter, legal, executive, a4, a5, a6, b5, b6, custom sizes from 3" x 5" to 8.5" x 14"
Paper Handling	up to 500 sheets
Mono Print Speed	42 pages per minute
Print Resolution Mono	up to 1200 x 1200
Maximum Number of Pages Per Month	up to 100, 000
Scanner Type	flatbed
Scan Resolution	up to 19200 x 19200
Fax Function	yes
Cartridges	tn-720, tn-750, tn-780, dr-720
Number Of Cartridges	2
Internal Memory	yes
Network	wired, wireless
Connectivity	usb 2.0
OS Compatibility	windows or mac os
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	16.3 inches
Net Weight	39 pounds
