9.32 Develop clutch 51R / Develop one way clutch 53
(1) Remove the develop idle gear 53 from the main frame L ASSY.
(2) Remove the develop shaft gear 22 from the main frame L ASSY.
(3) Release the develop clutch harness from the securing fixtures, and remove the develop
clutch 51R from the main frame L ASSY.
(4) Remove the develop one way clutch 53 from the main frame L ASSY.

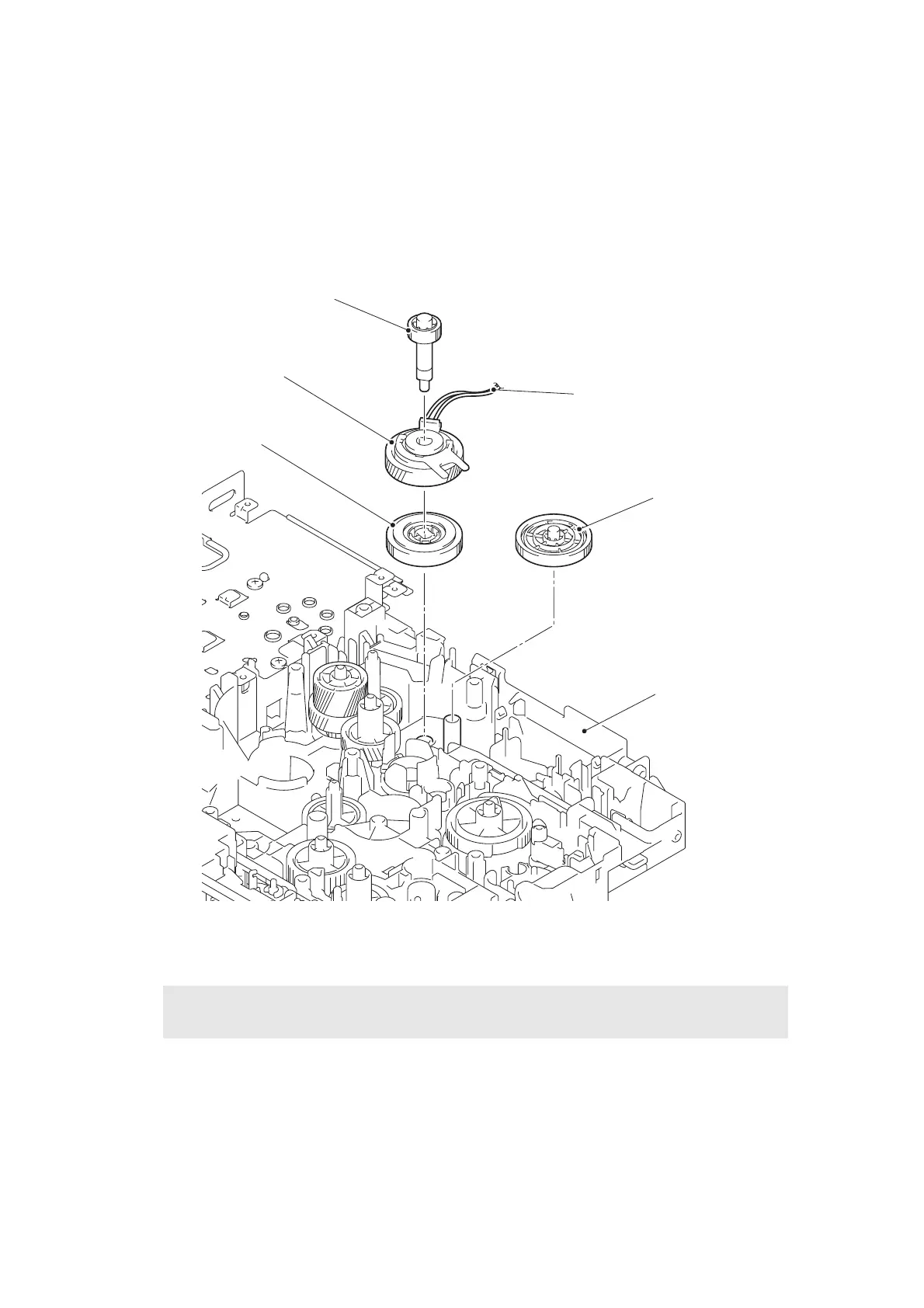

Fig. 3-124
Harness routing: Refer to “2.Relay front PCB ASSY”.
Assembling Note:
• Attach the develop one way clutch 53 so that it faces as shown in the illustration above.
Develop clutch harness
Develop shaft gear 22
Develop one way clutch 53
Develop clutch 51R
Develop idle gear 53
Main frame L ASSY

Brother MFC-8950DW Specifications

General

Type	all in one
Color	black
Tray Capacity	500
Automatic Document Feeder Capacity	50 sheets
Paper Size	letter, legal, executive, a4, a5, a6, b5, b6, custom sizes from 3" x 5" to 8.5" x 14"
Paper Handling	up to 500 sheets
Mono Print Speed	42 pages per minute
Print Resolution Mono	up to 1200 x 1200
Maximum Number of Pages Per Month	up to 100, 000
Scanner Type	flatbed
Scan Resolution	up to 19200 x 19200
Fax Function	yes
Cartridges	tn-720, tn-750, tn-780, dr-720
Number Of Cartridges	2
Internal Memory	yes
Network	wired, wireless
Connectivity	usb 2.0
OS Compatibility	windows or mac os
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	16.3 inches
Net Weight	39 pounds
