Brother MFC-8950DW Service Manual

3-111
Confidential
9.44 MP paper empty sensor PCB ASSY / MP paper empty actuator 1 / MP
paper empty actuator 2
(1) Remove the five taptite bind B M4x12 screws, and remove the main frame R from the
machine. Then pull out the low-voltage power supply harness from the main frame R.

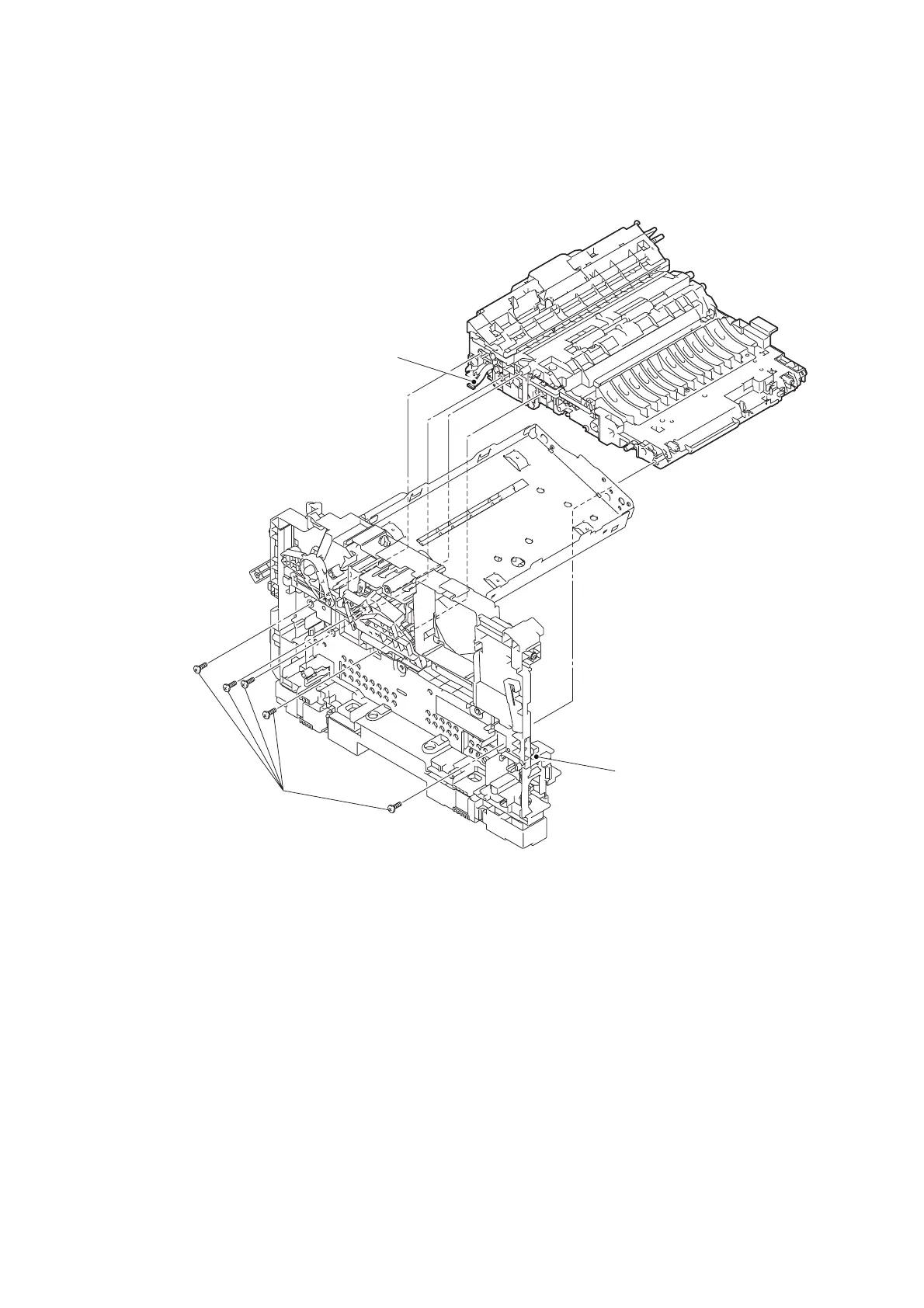

Fig. 3-140
Taptite bind B M4x12
Main frame R
Low-voltage power supply harness

Brother MFC-8950DW Specifications

General

Type	all in one
Color	black
Tray Capacity	500
Automatic Document Feeder Capacity	50 sheets
Paper Size	letter, legal, executive, a4, a5, a6, b5, b6, custom sizes from 3" x 5" to 8.5" x 14"
Paper Handling	up to 500 sheets
Mono Print Speed	42 pages per minute
Print Resolution Mono	up to 1200 x 1200
Maximum Number of Pages Per Month	up to 100, 000
Scanner Type	flatbed
Scan Resolution	up to 19200 x 19200
Fax Function	yes
Cartridges	tn-720, tn-750, tn-780, dr-720
Number Of Cartridges	2
Internal Memory	yes
Network	wired, wireless
Connectivity	usb 2.0
OS Compatibility	windows or mac os
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	16.3 inches
Net Weight	39 pounds
