Brother MFC-8950DW Service Manual

3-117
Confidential

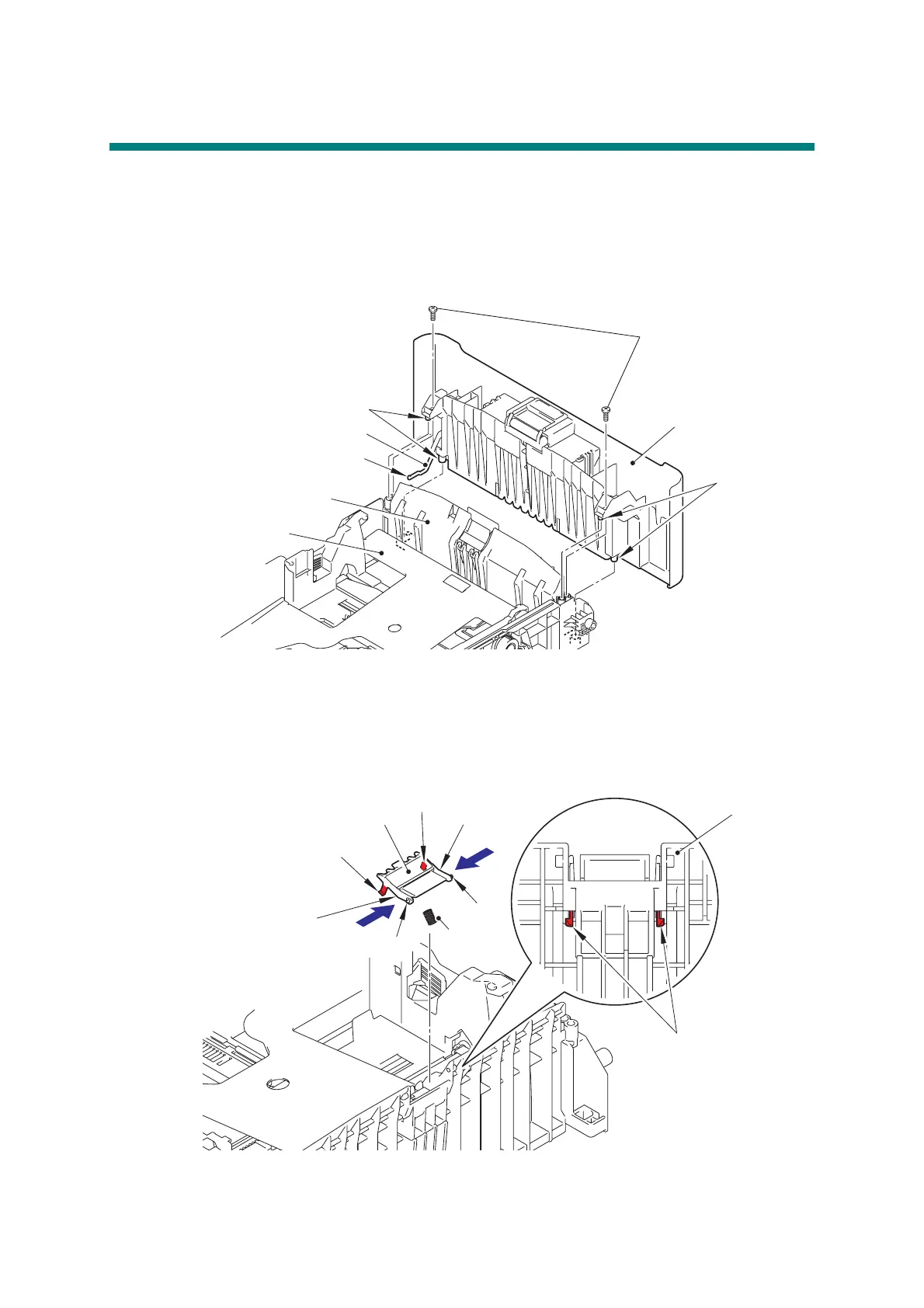

10. DISASSEMBLY PROCEDURE (LT UNIT)
10.1 Paper tray 2
(1) Remove the two taptite bind B M4x12 screws from paper tray 2.
(2) Lift the plate to remove "A" on the T2 tray indicator from the plate, remove the four
bosses, and remove the T2 tray cover from paper tray 2.
Fig. 3-146
(3) Release the two hooks on the T2 separation pad ASSY from paper tray 2.
(4) Push both arms of the T2 separation pad ASSY in the direction of the arrows to remove
both pins, and remove the T2 separation pad ASSY from paper tray 2.
(5) Remove the T2 separation pad spring from the T2 separation pad ASSY.
Fig. 3-147
Taptite bind B M4x12
T2 tray indicator
Paper tray 2
“A”
Plate
T2 tray cover
Bosses
Bosses
T2 separation pad ASSY
Hook
Arm
T2 separation
pad spring
Hooks
Paper tray 2
Arm
Pin
Pin
Hook

Brother MFC-8950DW Specifications

General

Type	all in one
Color	black
Tray Capacity	500
Automatic Document Feeder Capacity	50 sheets
Paper Size	letter, legal, executive, a4, a5, a6, b5, b6, custom sizes from 3" x 5" to 8.5" x 14"
Paper Handling	up to 500 sheets
Mono Print Speed	42 pages per minute
Print Resolution Mono	up to 1200 x 1200
Maximum Number of Pages Per Month	up to 100, 000
Scanner Type	flatbed
Scan Resolution	up to 19200 x 19200
Fax Function	yes
Cartridges	tn-720, tn-750, tn-780, dr-720
Number Of Cartridges	2
Internal Memory	yes
Network	wired, wireless
Connectivity	usb 2.0
OS Compatibility	windows or mac os
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	16.3 inches
Net Weight	39 pounds
