Brother MFC-L2713DW User Manual

3-18
Confidential

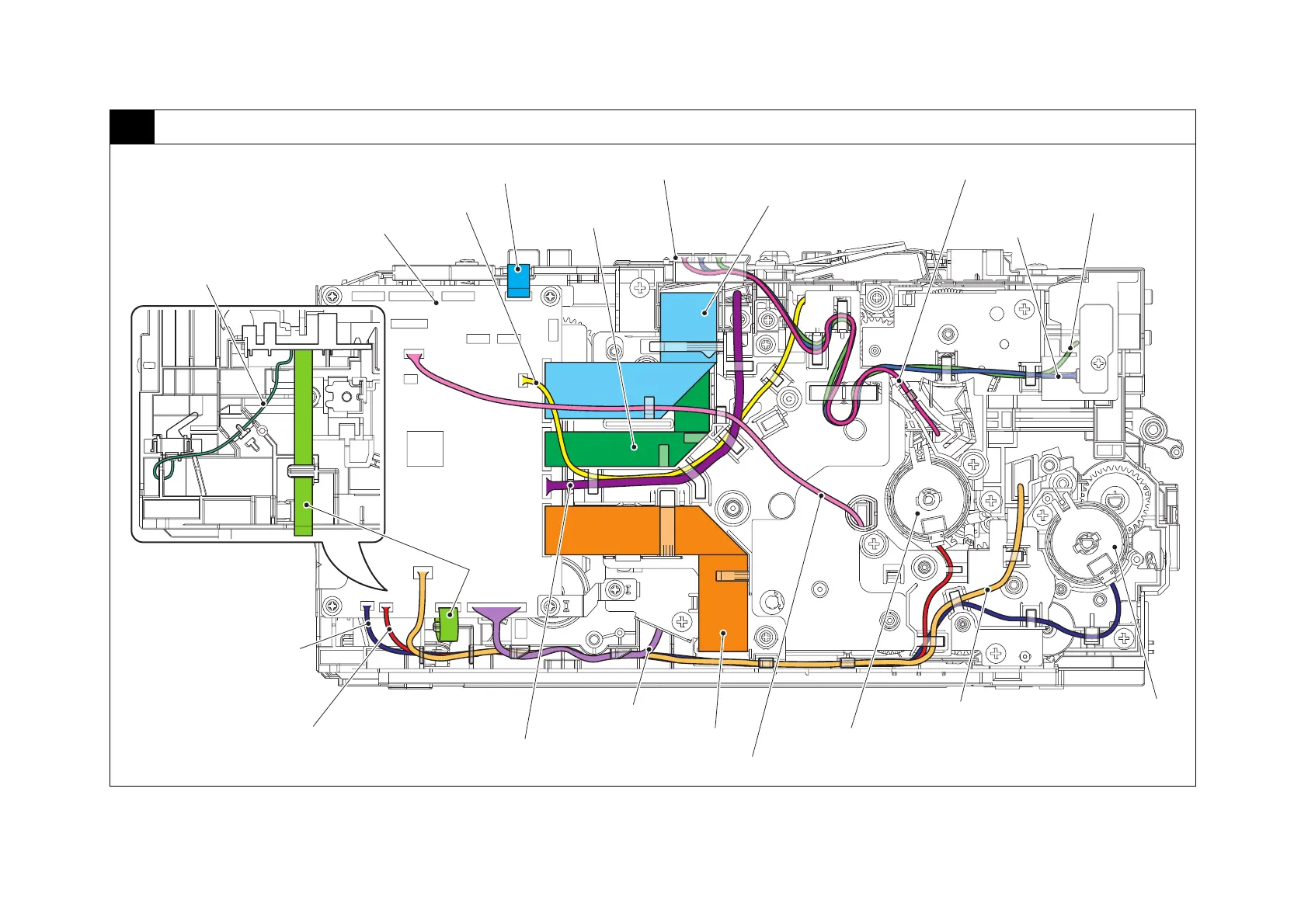

10 Frame L unit (Manual feed models)
Harness colors are subject to change for some reason.
Toner box solenoid
harness (WH) *
1
T1 clutch
Toner sensor harness (RD) *
1
HVPS flat cable
Laser unit flat cable
Front cover sensor harness (YW)
Back cover/duplex tray
sensor harness (RD, BL)
T1 clutch harness (BL)
Registration clutch harness (WH)
Polygon motor harness (WH)
LVPS harness (WH, BK)
Paper feed motor flat cable
Registration clutch
Paper feed sensor harness
(RD, BL, WH)
Toner box new
harness (BL) *
1
Toner box relay PCB ASSY *
1
Eject sensor
flat cable
Main PCB ASSY
Cartridge sensor harness (WH) *
2
*
1
For models with Toner box
*
2
For models without Toner box
Toner box relay flat cable *
1

Brother MFC-L2713DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 15, 000 pages
Memory	64 MB
Processor	600 MHz
Scan Resolution	Up to 1200 x 1200 dpi
Fax Speed	33.6 kbps
Dimensions	410 x 398.5 x 318.5 mm
Weight	11.8 kg
Print Speed	30 ppm
Display	2-line LCD
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
