Brother MFC-L2713DW User Manual

3-71
Confidential
9.18 Fuser unit

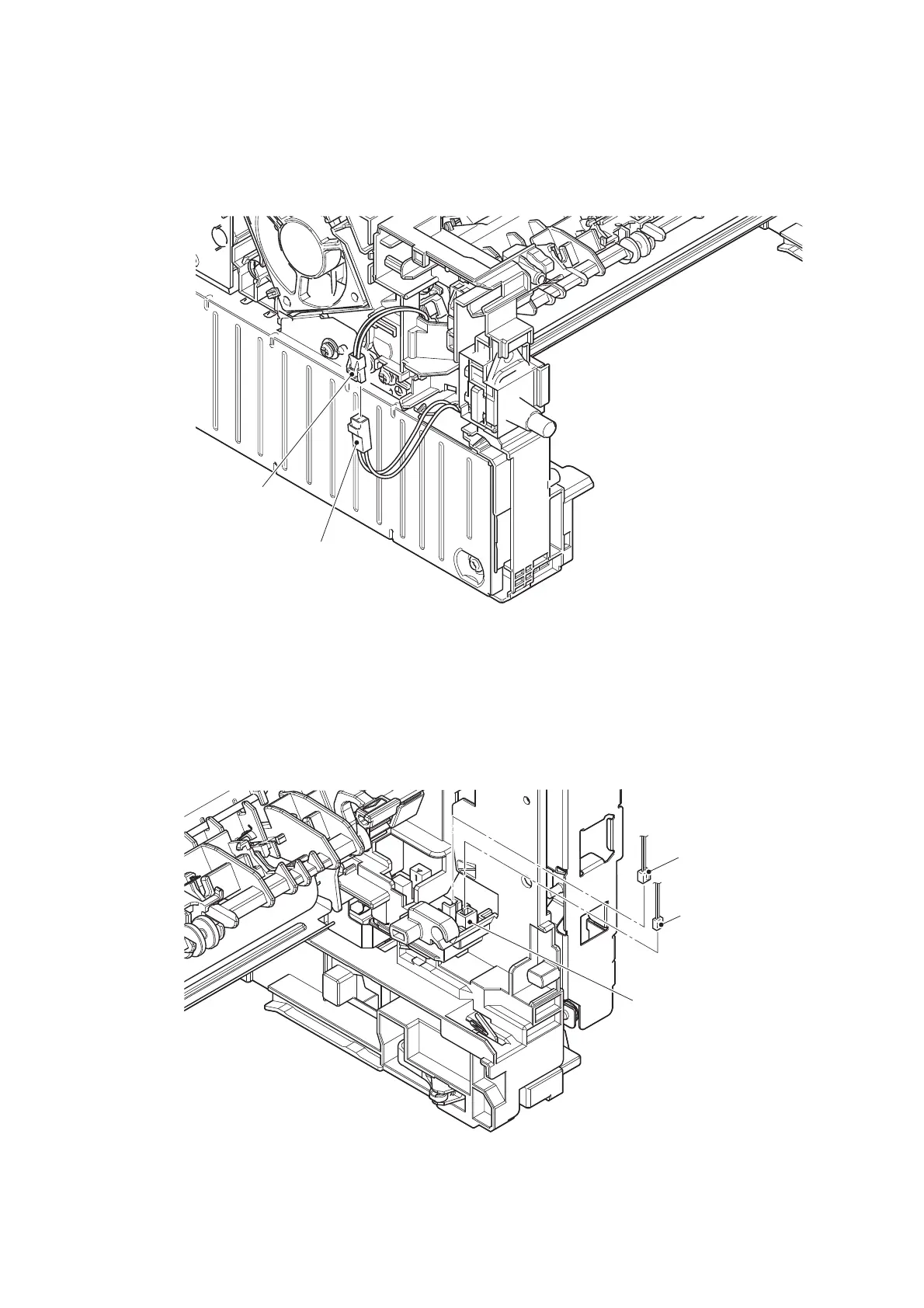

(1) Release the Fuser unit heater harness from the securing fixtures, and disconnect it from
the LVPS-heater harness.
Fig. 3-64
Harness routing: Refer to “8. Rear side of the machine”.
(2) Disconnect the Center thermistor harness ASSY and the Side thermistor harness ASSY
from the Eject sensor PCB ASSY.
(3) Release the Center thermistor harness ASSY and the Side thermistor harness ASSY from
the securing fixtures.
Fig. 3-65
Harness routing: Refer to “8. Rear side of the machine”.
LVPS-heater harness
Fuser unit heater harness
<Back side>
Side thermistor
harness ASSY
Center thermistor
harness ASSY
Eject sensor PCB ASSY
<Back side>

Brother MFC-L2713DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 15, 000 pages
Memory	64 MB
Processor	600 MHz
Scan Resolution	Up to 1200 x 1200 dpi
Fax Speed	33.6 kbps
Dimensions	410 x 398.5 x 318.5 mm
Weight	11.8 kg
Print Speed	30 ppm
Display	2-line LCD
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
