9.10 Document scanner unit
(1) Open the Document scanner unit.
(2) Release the Joint parts of Pull arm L and Pull arm R from each Pull arm hinge. Remove the
Pull arm L and the Pull arm R from each Pull arm guide.
(3) Remove each Pull arm spring from the Pull arm L and the Pull arm R.

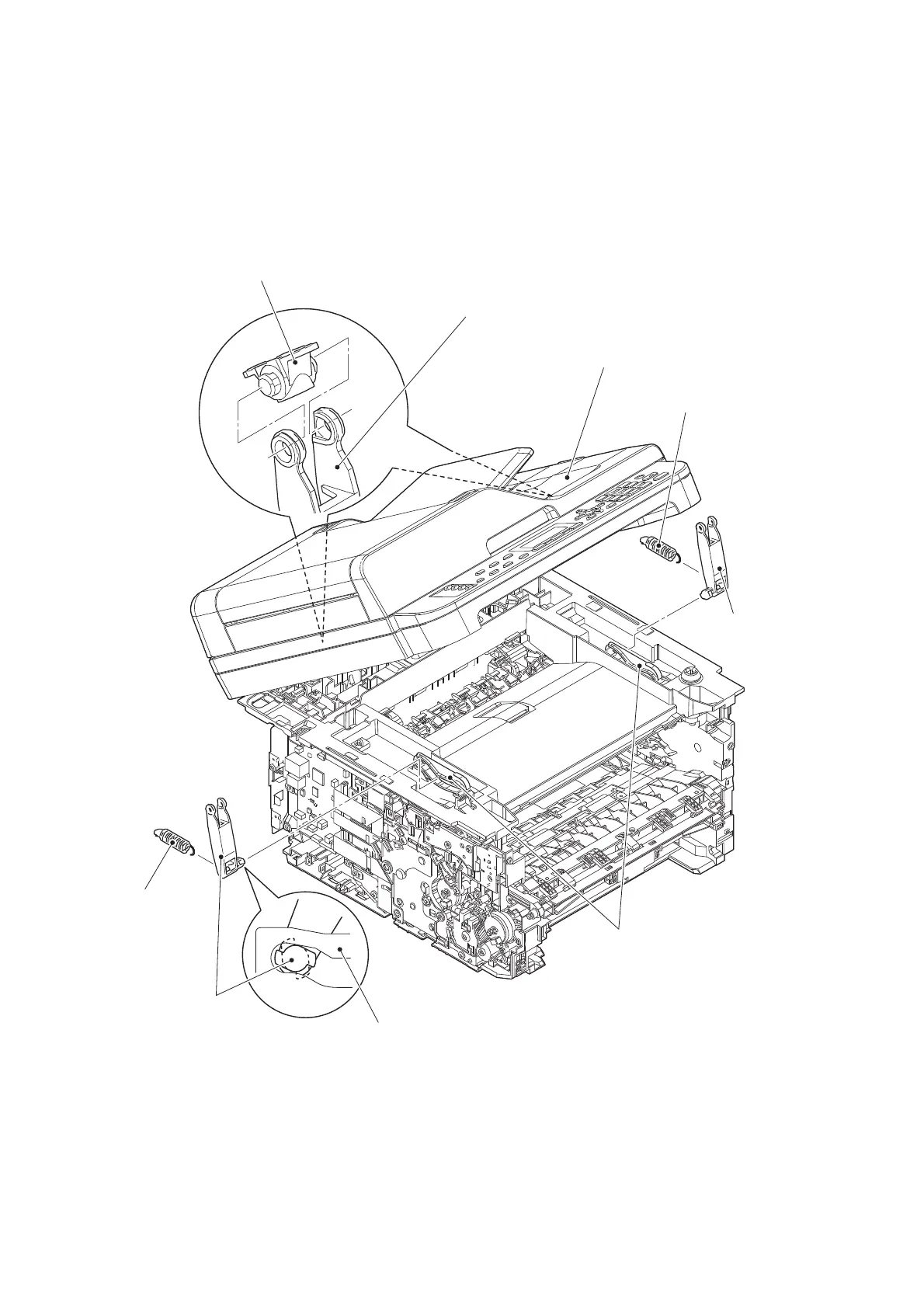

Fig. 3-25
Joint part of Pull arm
Pull arm hinge
Document scanner unit
Pull arm spring
Pull arm R
Pull arm guide
Pull arm L
Pull arm spring
Pull arm guides
